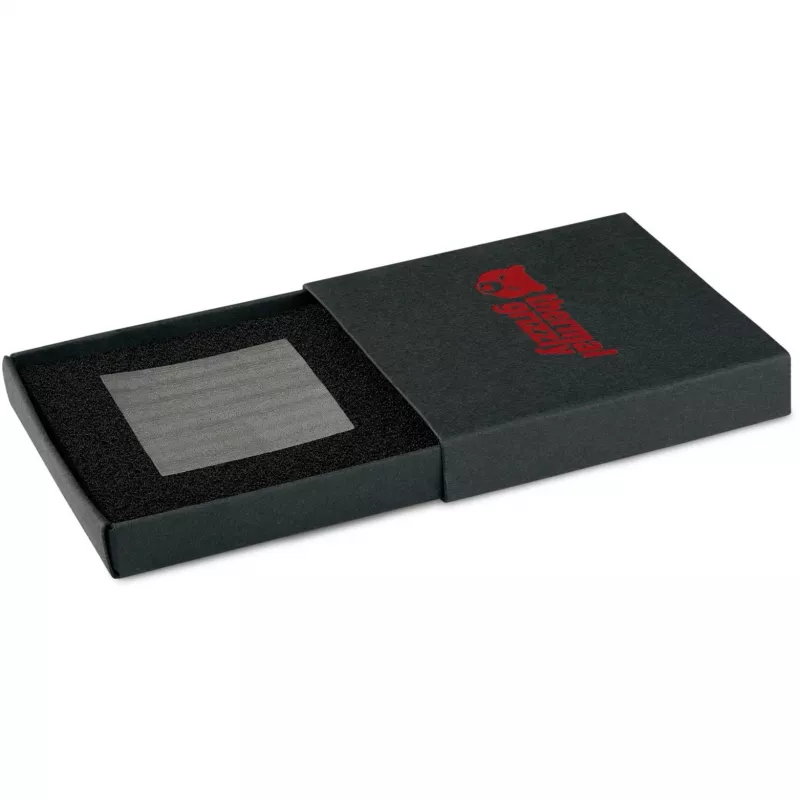

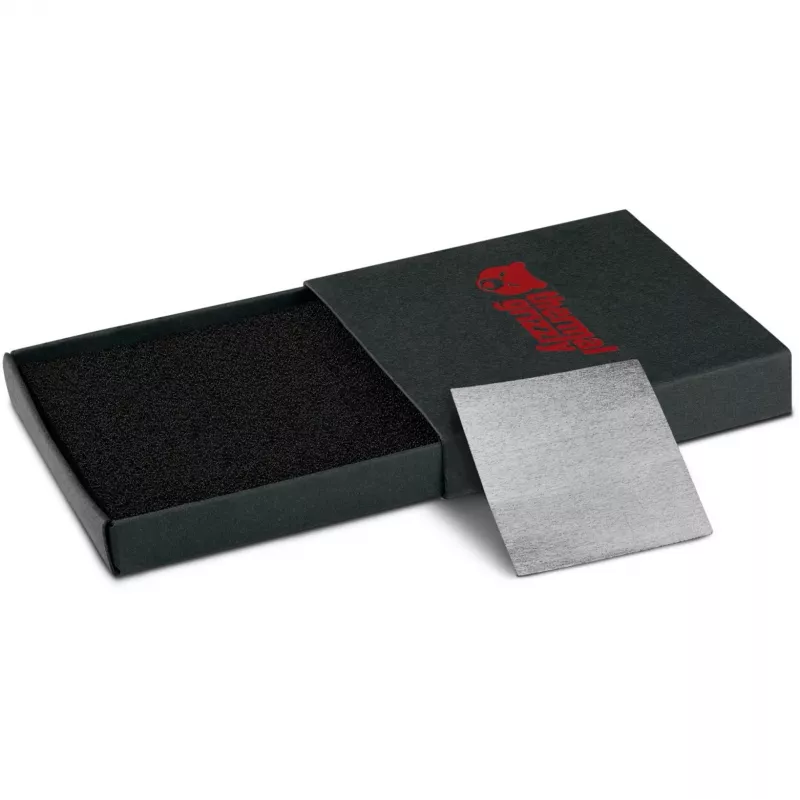

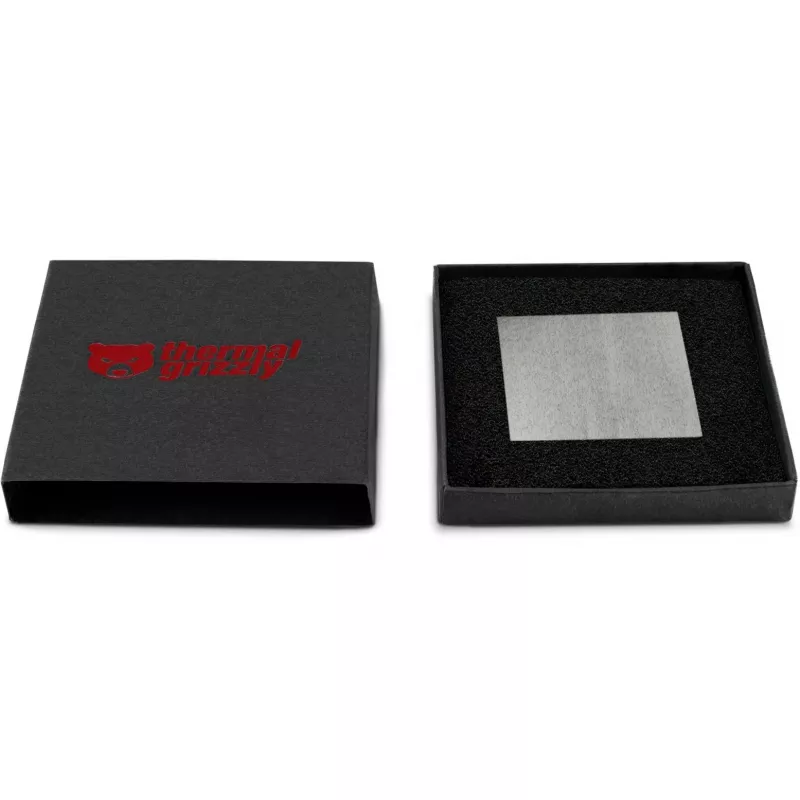

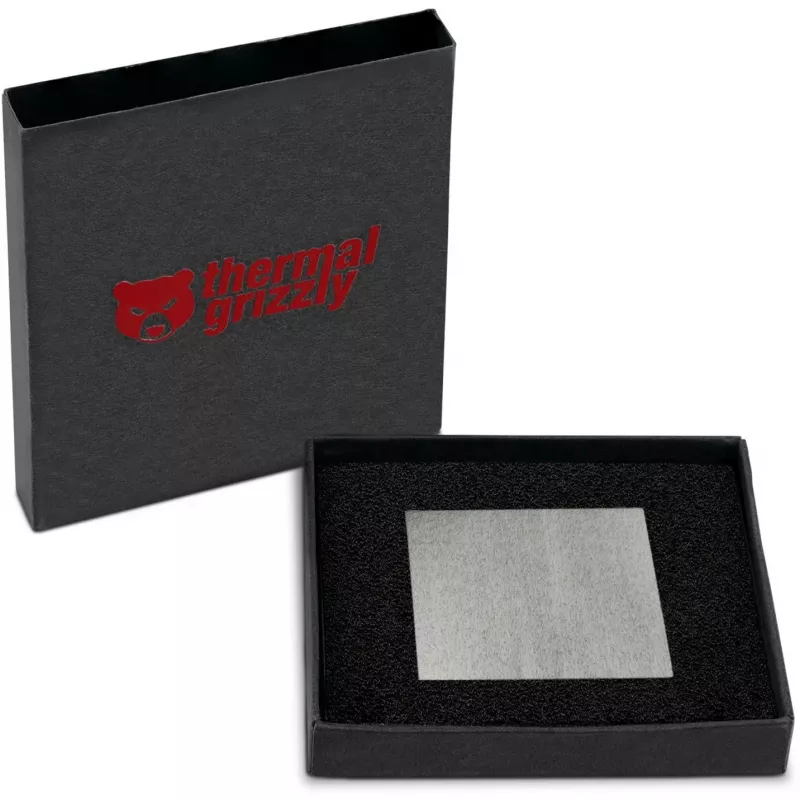

Lämpötyyny Thermal Grizzly TG-KS-33-33

The Thermal Grizzly TG-KS-33-33 KryoSheet is a graphene thermal pad sized 33 x 33 mm with a thickness of 0.2 mm. Designed as a high-end alternative to conventional thermal compounds, this dry thermal pad provides consistently high thermal conductivity and stable performance without liquid components that can age or dry out. The pad is anthracite in colour and intended for efficient heat transfer in electronic and PC components.

Advantages

KryoSheet offers outstanding thermal conductivity thanks to an optimized molecular structure and a specialized manufacturing process. It delivers consistent performance over time, is easy to apply, and provides extreme durability because it contains no liquid that could evaporate or degrade. Note: the material is electrically conductive, so users must follow handling and installation instructions to avoid electrical shorting.

Suitable for

• Thermal interface between chips (CPU, GPU) and heatsinks in compact assemblies
• Heat transfer in PC components and small electronic modules
• Applications requiring a thin (0.2 mm) high-conductivity interface

Key specifications

• Brand: thermal grizzly
• Model / MPN: TG-KS-33-33
• Dimensions: 33 x 33 mm
• Thickness: 0.2 mm
• Material: graphene thermal pad (dry, no liquid components)
• Colour: Anthracite
• Electrical conductivity: electrically conductive — follow instructions
• EAN: 4260711990830

How to use

Clean both contact surfaces thoroughly and ensure they are dry and free of debris. Cut the KryoSheet pad to the required size if necessary, then place it flat on the heat source or sink with even pressure to ensure full contact. Reassemble the device carefully to maintain consistent contact pressure. Because the pad is electrically conductive, avoid overlap with exposed electrical contacts or solder joints.

Recommendations

Use KryoSheet only where a thin, high-performance thermal interface is required and follow manufacturer instructions to prevent electrical shorts. Do not use the pad in places where electrical insulation is needed.
