LANBERG verkkokaapeli U/UTP Cat5e LCU5-10CC-0305-S, 305 m, CCA-johdin, 24 AWG, harmaa

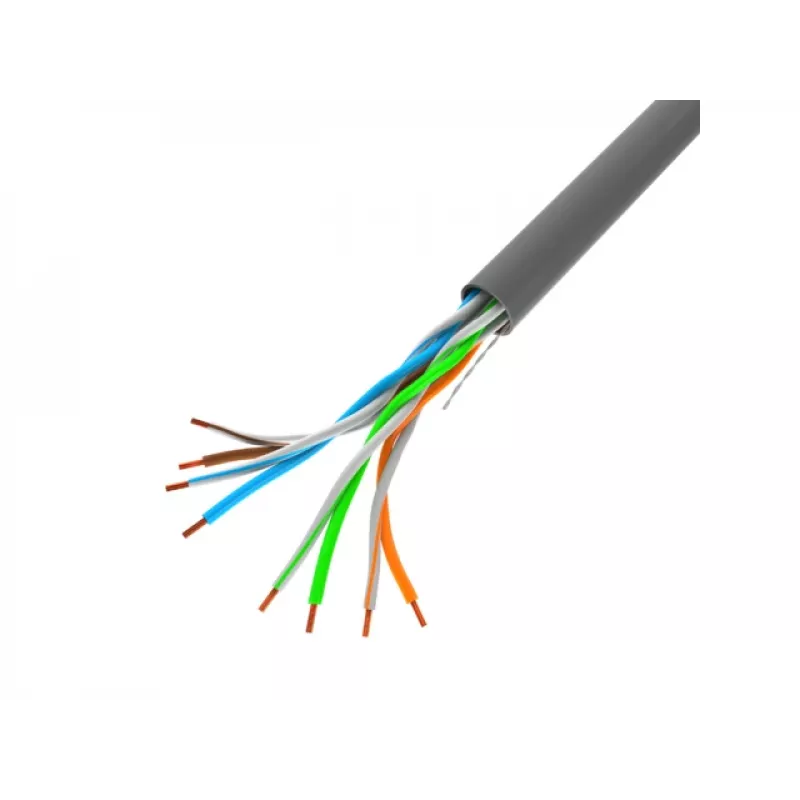

The Lanberg LCU5-10CC-0305-S is a U/UTP (unshielded) LAN cable 305 m long, intended for short-distance network installations. The cable uses copper-clad aluminum (CCA) conductors with AWG 24 sizing (4 pairs of 2 x 0.5 mm), single-strand conductors, grey RAL7035 jacket, and a meter-by-meter printed length counter. Outer PVC insulation thickness is 5.0 mm and conductor insulation (HDPE) is 0.93 mm. The cable is designed for operation up to 100 MHz and is supplied in a cardboard box (dimensions 36 x 23 x 36 cm).

Advantages

This U/UTP cable provides a cost-effective solution for short-distance Ethernet cabling where unshielded twisted pair is acceptable. The printed length counter at each meter simplifies installation and measurement. The grey RAL7035 jacket offers a neutral appearance suitable for many environments, and the 305 m spool reduces the need for multiple shorter reels.

Suitable for

• Short-distance Ethernet runs (up to 100–120 m)
• Home and small office network cabling
• Patch panel to switch connections within a building
• Structured cabling where CCA conductors are acceptable

Key specifications

• Cable type: U/UTP (unshielded twisted pair)
• Length: 305 m
• Conductor material: Copper-clad aluminum (CCA)
• AWG: 24 (4*2*0.5 mm)
• Conductor stranding: single wire
• Outer jacket color: Grey (RAL7035)
• Printed meter counter: yes
• Outer insulation (PVC): 5.0 mm
• Conductor insulation (HDPE): 0.93 mm
• Frequency rating: up to 100 MHz
• Characteristic impedance: < 100 Ω (±15)
• Conductor resistance (max., per 305 m): 60–90 Ω
• Insulation resistance (min.): 5000 MΩ·km
• Pair-to-ground capacitance: < 330 pF/100 m
• Working distance: 100–120 m
• Operating temperature: -20 to 70 °C
• Transport/storage temperature: 0 to 60 °C

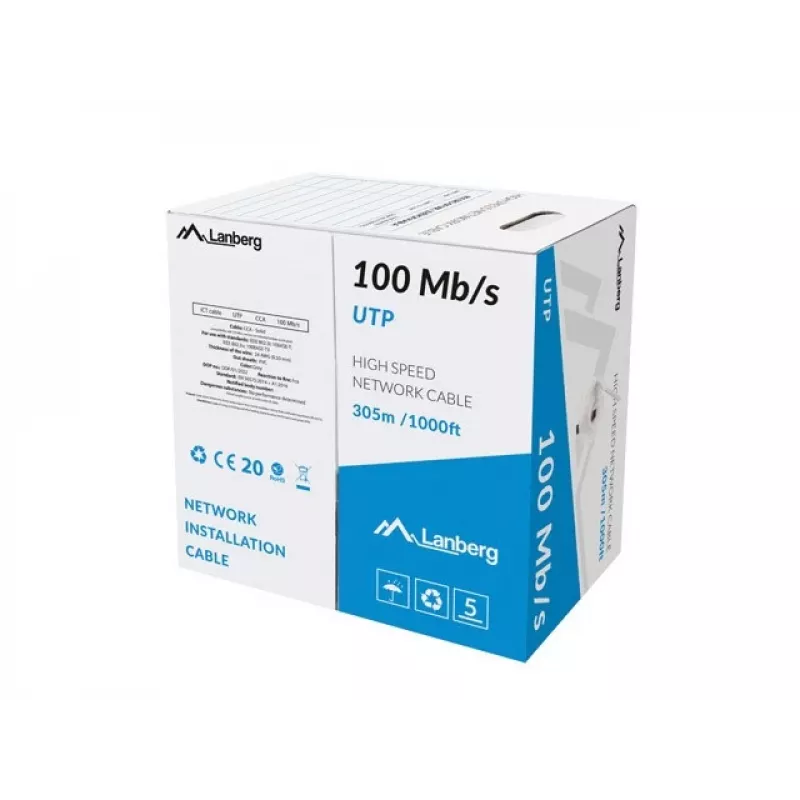

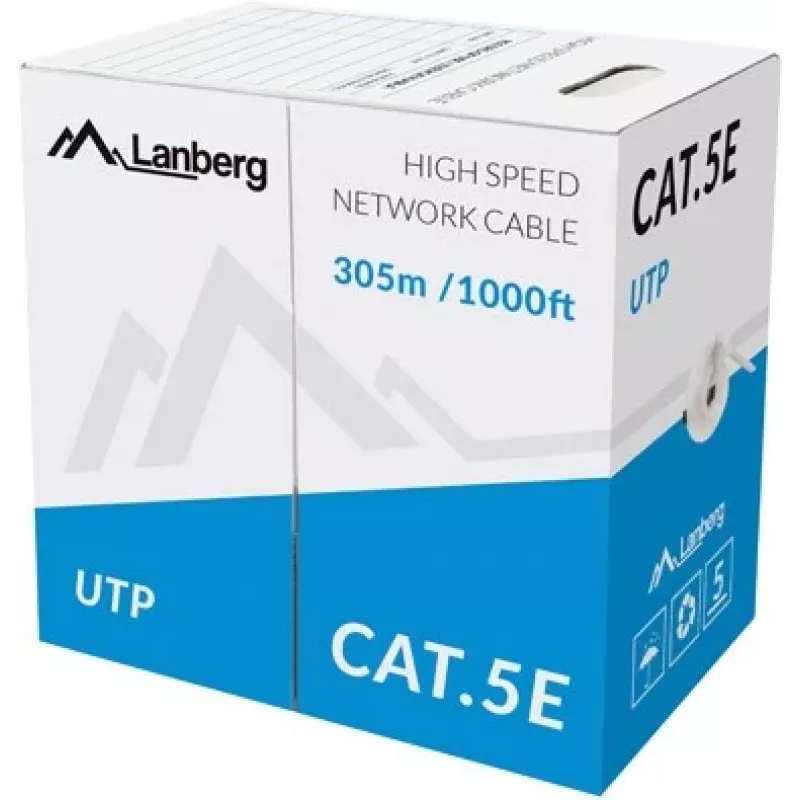

• Package: cardboard box (36 x 23 x 36 cm)

How to use

Cut the required length from the 305 m spool using appropriate cable cutters, taking the printed meter marks as a guide. Strip the outer PVC jacket and HDPE insulation carefully to reveal the four pairs, then terminate with RJ45 connectors or punch down to a patch panel according to standard wiring schemes (T568A or T568B). Use appropriate tools and grounding practices for the installation environment. Note that the cable is unshielded and uses CCA conductors, so follow manufacturer and local standards when selecting connectors and installation methods.

Recommendations

Intended for short-distance in-building Ethernet links. Fluke certification has not been confirmed; verify compatibility with your network equipment before use and avoid runs that exceed the recommended working distance (100–120 m).
