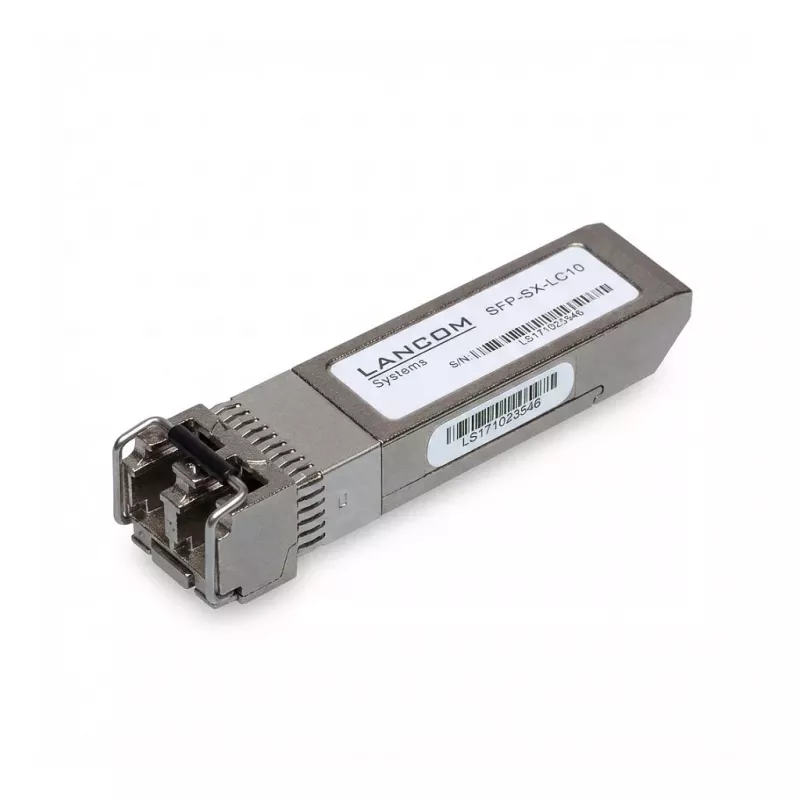

LANCOM UF-SFP-SX-LC1-LC10 SFP+ lähetin-vastaanotin 10GBASE-SR 850nm LC Duplex 300m

The LANCOM UF-SFP-SX-LC1-LC10 is a high-performance SFP+ transceiver module designed for 10 Gigabit Ethernet connections over multimode fiber. It is fully compatible with LANCOM switches and routers, ensuring seamless integration into your network infrastructure. With support for 10GBASE-SR standard, this module delivers reliable data transmission at distances up to 300m on OM3 fiber and 400m on OM4 fiber.

Advantages

This transceiver offers hot-pluggable capability, allowing for easy installation and replacement without disrupting network operations. It supports Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of optical parameters, enhancing network management and troubleshooting. The module is MSA compliant, ensuring interoperability with a wide range of networking equipment.

Suitable for

• Data center interconnects
• Enterprise network backbone
• High-speed server connections
• LANCOM switch and router uplinks

Key specifications

• Transceiver Type: SFP+
• Data Rate: 10 Gbps
• Standard: 10GBASE-SR
• Fiber Type: Multimode (MMF)
• Wavelength: 850 nm
• Connector: LC Duplex
• Max Distance: 300m (OM3), 400m (OM4)
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Power Consumption: < 1 W
• Operating Temperature: 0°C to 70°C
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use with OM3 or OM4 multimode fiber cables. Ensure your network equipment supports SFP+ modules and 10GBASE-SR standard. This module is ideal for short-range high-speed connections within a data center or campus network.
