Langaton tukiasema MikroTik OmniTIK 5 PoE ac

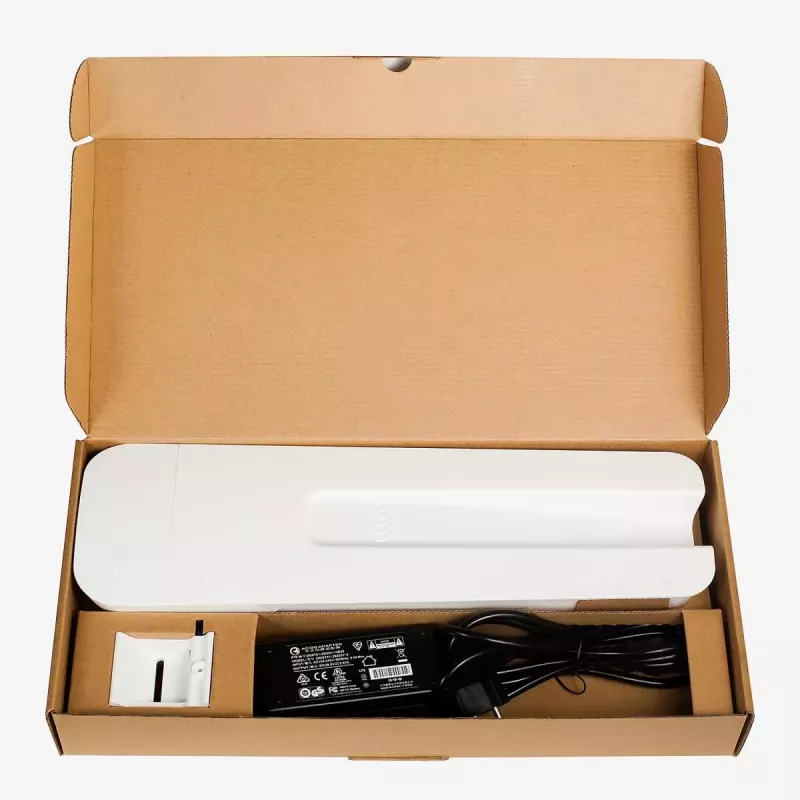

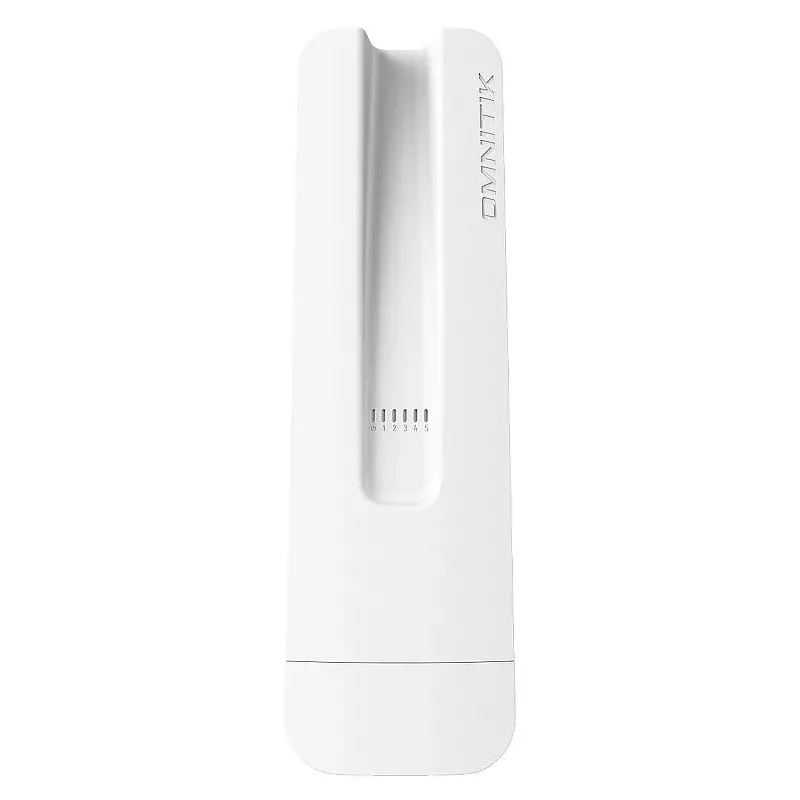

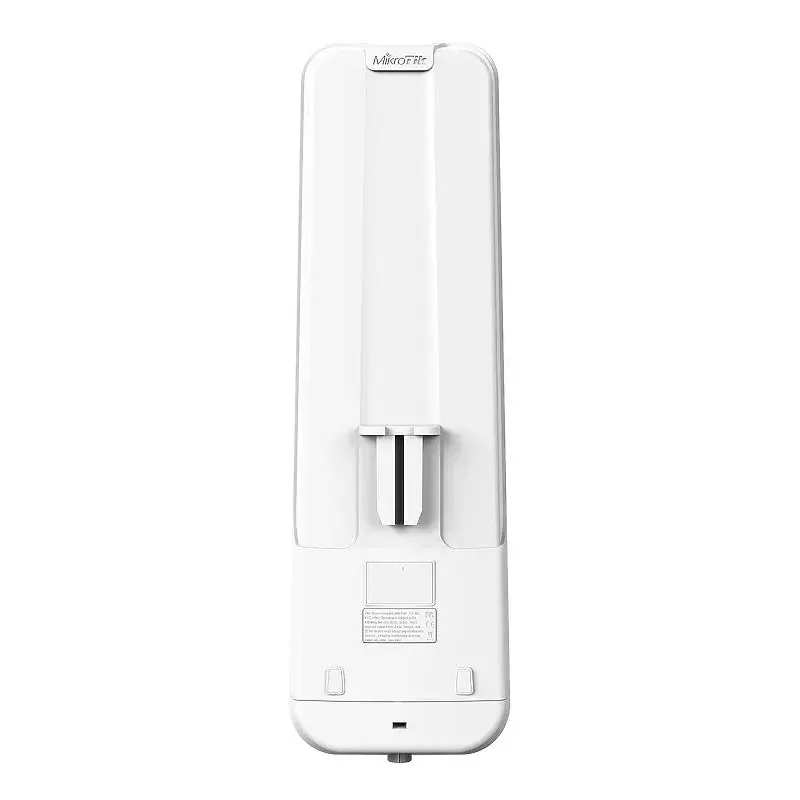

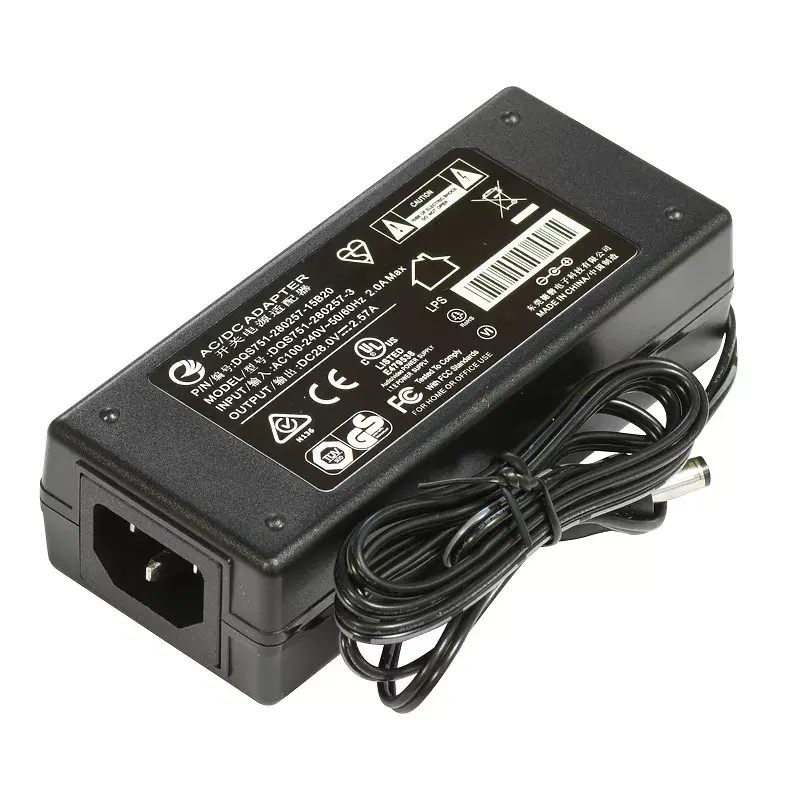

The MikroTik OmniTIK 5 PoE ac is an outdoor wireless access point with 802.11ac support, designed for pole mounting. The unit includes a weatherproof enclosure, two integrated 7.5 dBi 5 GHz omni antennas, five Gigabit Ethernet ports, a USB Type-A connector, and a PoE injector and power supply. It is powered by a 720 MHz CPU with 128 MB RAM and supports both high-power 802.11a/n/ac dual-chain wireless and backwards compatibility with 802.11a/n CPE.

Advantages

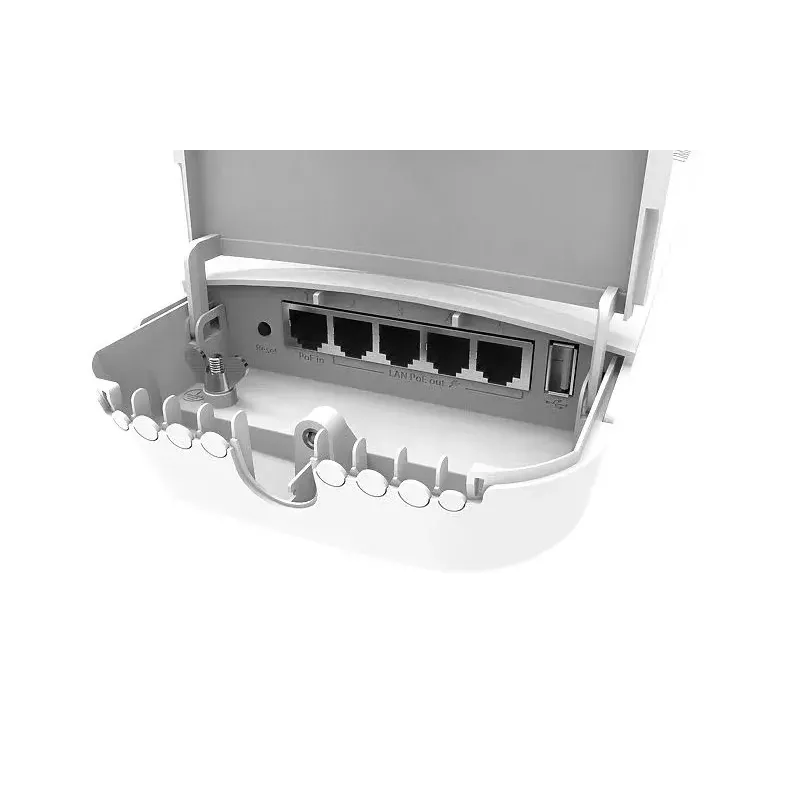

The device provides five Gigabit Ethernet ports for flexible network connections and can supply PoE to other devices on ports 2–5, reducing the need for multiple power adapters. It supports passive PoE as well as standard 802.3at/af input and output, including af/at mode B (4,5+)(7,8-) when 48–57 V input is used. The weatherproof outdoor enclosure and integrated omni antennas simplify outdoor deployment for wide-area coverage.

Suitable for

Key specifications

How to use

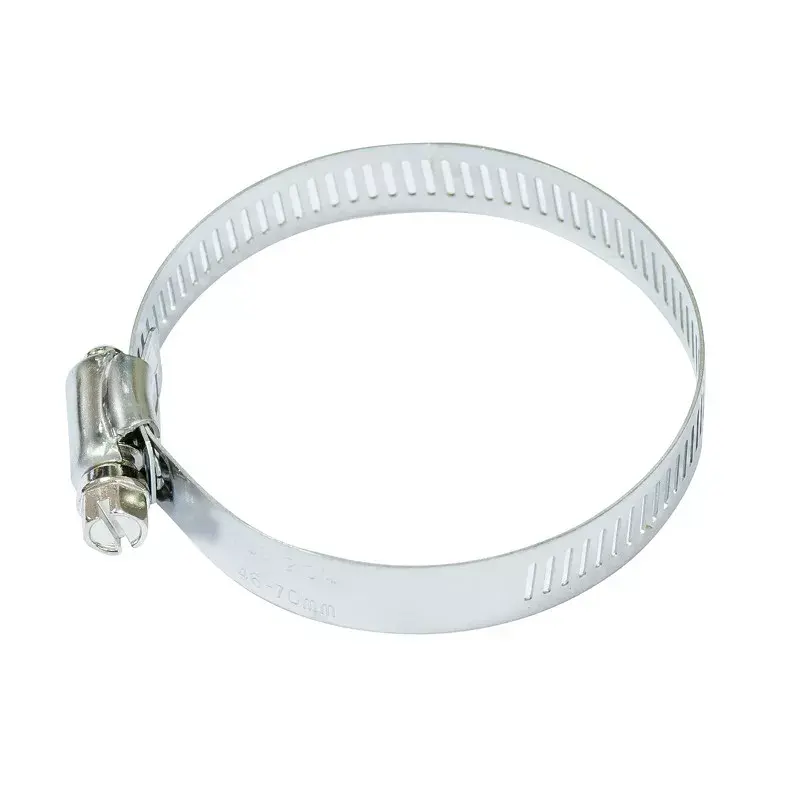

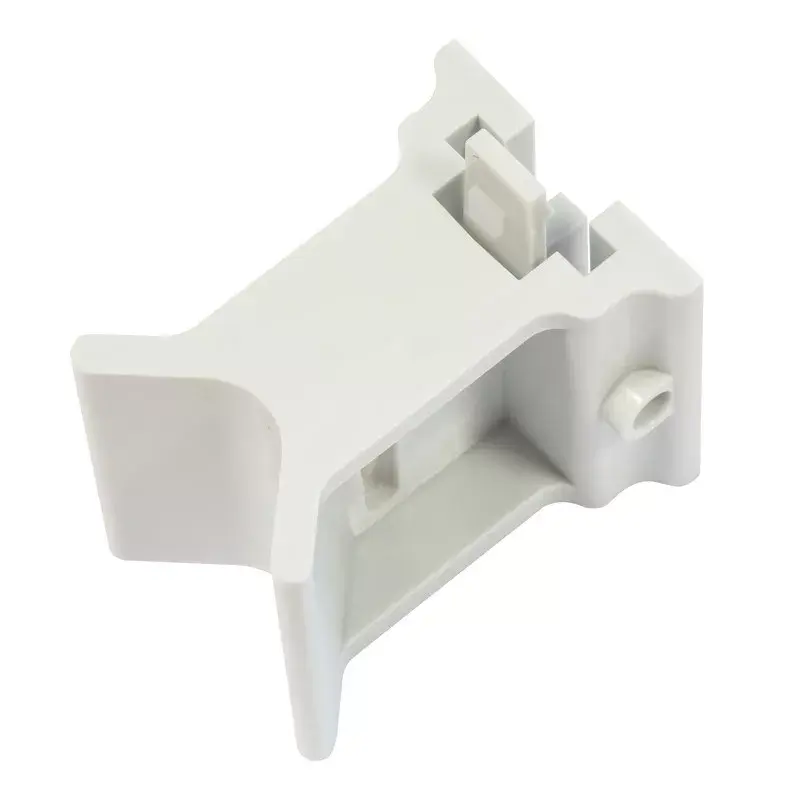

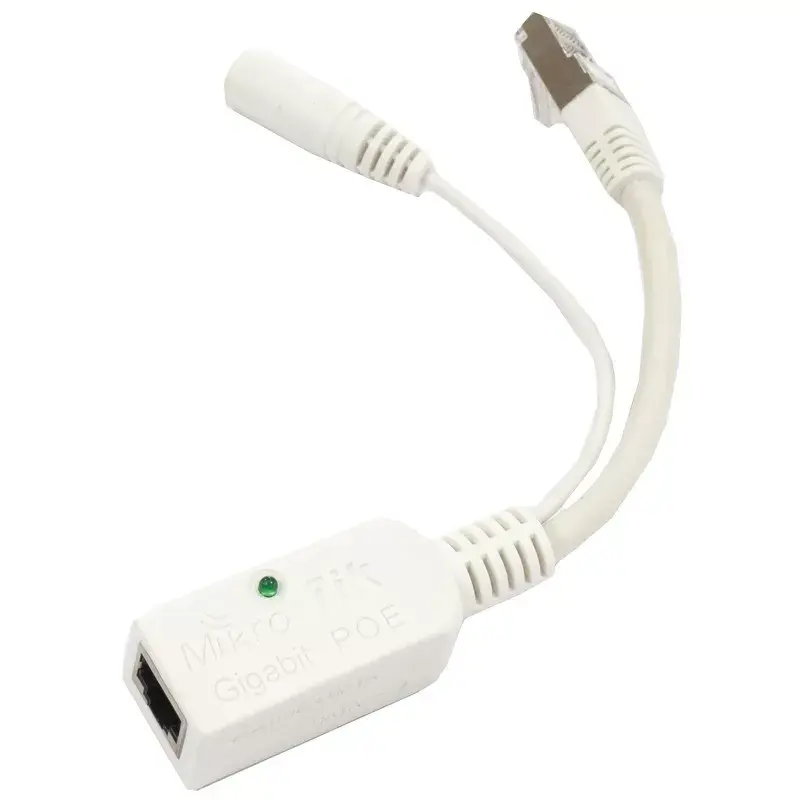

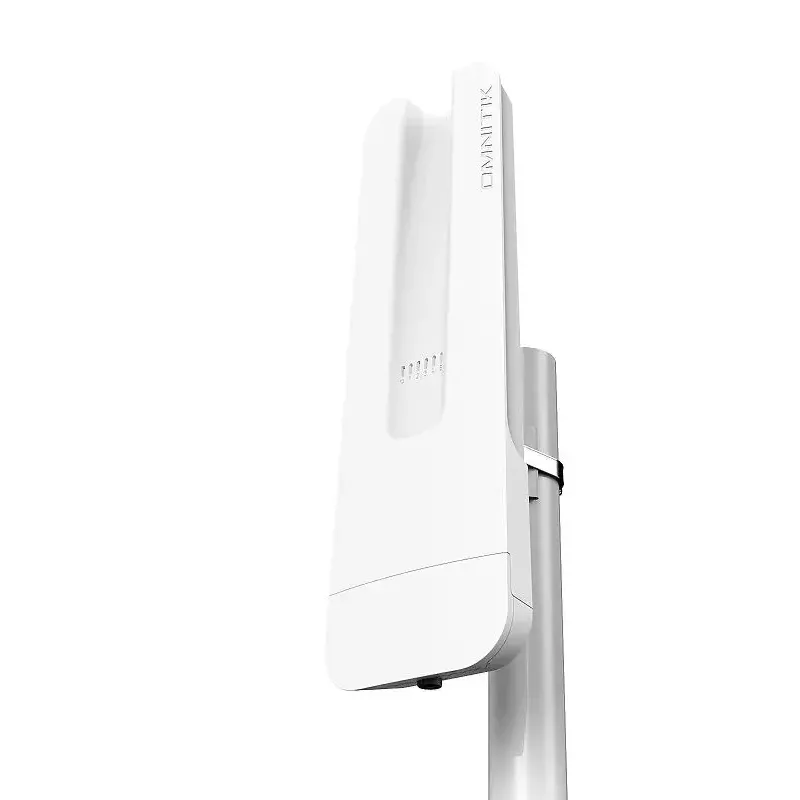

Mount the OmniTIK 5 PoE ac on a pole using the supplied mounting kit and connect the provided PoE injector or another compatible 48–57 V power source to the device. Configure wireless settings and network interfaces through the MikroTik RouterOS interface or Winbox. Connect client devices to the wireless network or use Ethernet ports for wired devices; ports 2–5 can also power downstream PoE devices if the unit receives appropriate input voltage.

Recommendations

For reliable long-term outdoor operation, install the unit with adequate clearance from large obstructions, use high-quality outdoor Ethernet cabling, and ensure the input voltage matches the required PoE mode when powering other devices from the Ethernet ports.
