Langaton tukiasema TP-Link EAP110-Outdoor 2.4GHz Wi-Fi N

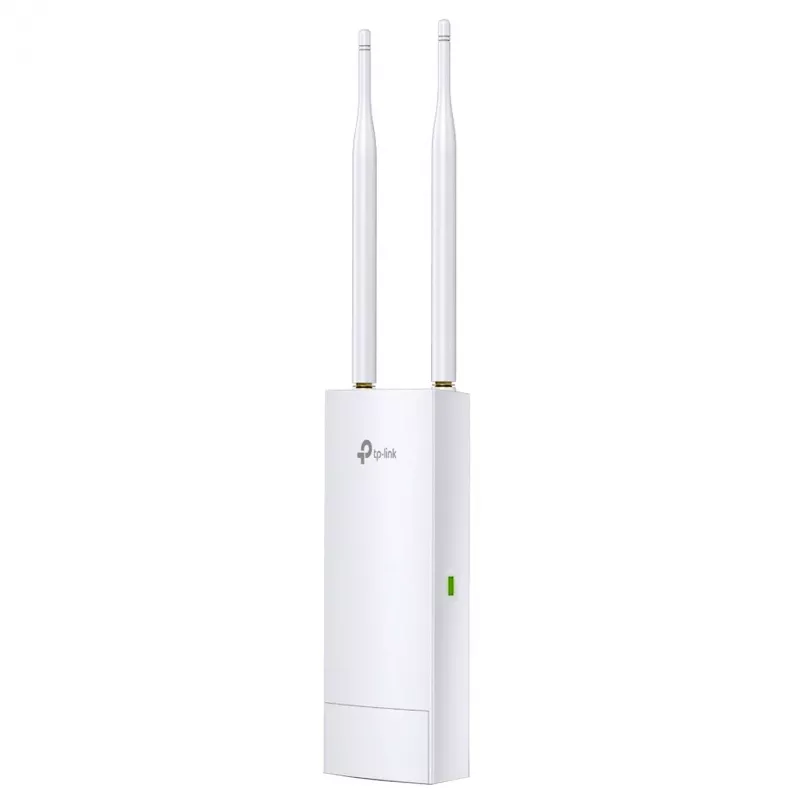

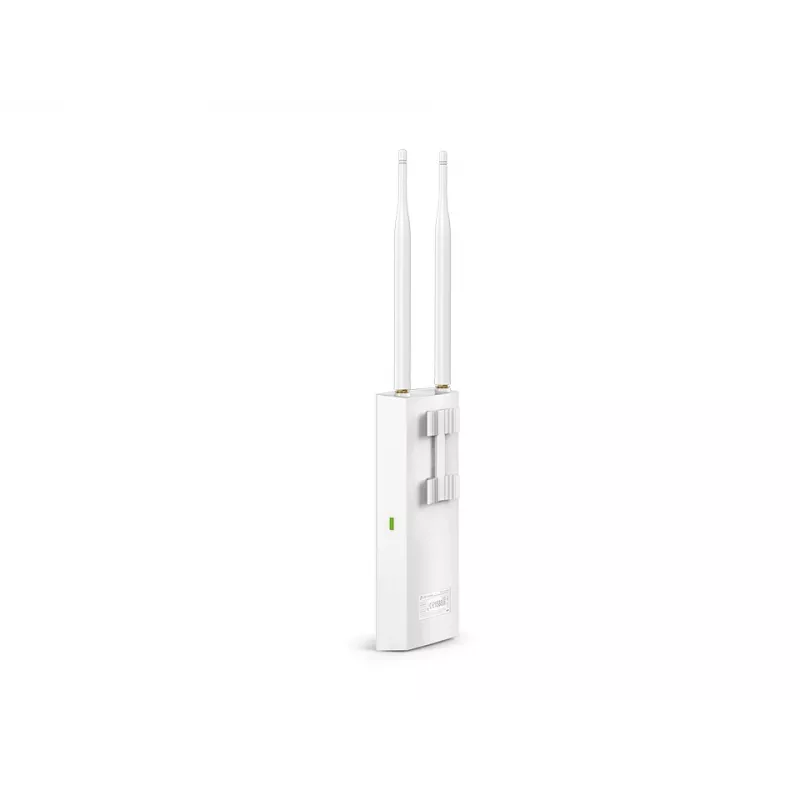

The TP-Link EAP110-Outdoor is a 2.4 GHz outdoor wireless access point (Wi‑Fi N) providing up to 300 Mbit/s throughput. Designed for outdoor deployment, it includes two detachable omnidirectional antennas, passive Power over Ethernet (PoE) support, and an IP65 weatherproof enclosure. The compact, phone-like housing (215 × 46 × 27 mm) and available wall‑ or pole‑mount kits allow flexible installation for varied indoor and outdoor scenarios. Management is available locally via the Omada Hardware/Software Controller or remotely through Omada Cloud and the Omada mobile app.

Advantages

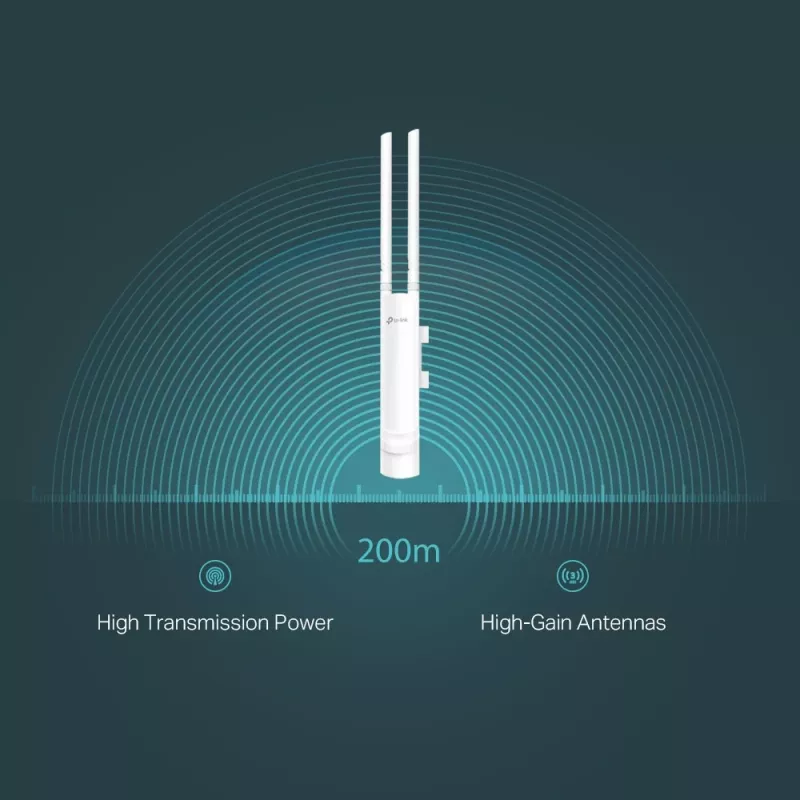

The device offers high transmission power with two high‑gain omnidirectional detachable antennas for extended outdoor coverage up to about 200 meters. Passive PoE simplifies outdoor setup by removing the need for a separate DC power adapter. Its IP65-rated enclosure protects against dust and water, and the compact white housing suits discreet indoor placement as well. Omada centralized management and a free mobile app enable remote monitoring, configuration, and client management.

Suitable for

• Outdoor wireless coverage for small public areas, parks, and gardens
• Wireless access for building exteriors, terraces, and cafes
• Temporary or permanent installations requiring PoE power delivery
• Sites needing centralized management via Omada Controller or cloud

Key specifications

• Wireless band: 2.4 GHz (IEEE 802.11b/g/n)
• Maximum data rate: 300 Mbit/s
• Antennas: 2 detachable omnidirectional antennas
• Ethernet: 1 × RJ‑45, 10/100 Mbit/s
• Power: Passive PoE
• Maximum power consumption: 3.12 W
• Ingress protection: IP65

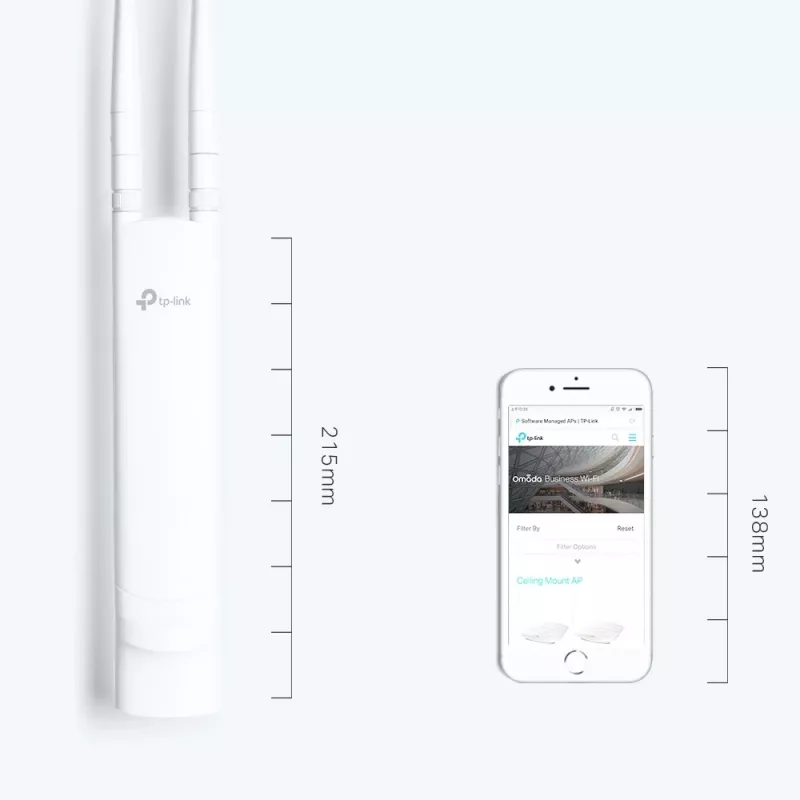

• Dimensions: 215 × 46 × 27 mm
• Colour: White

How to use

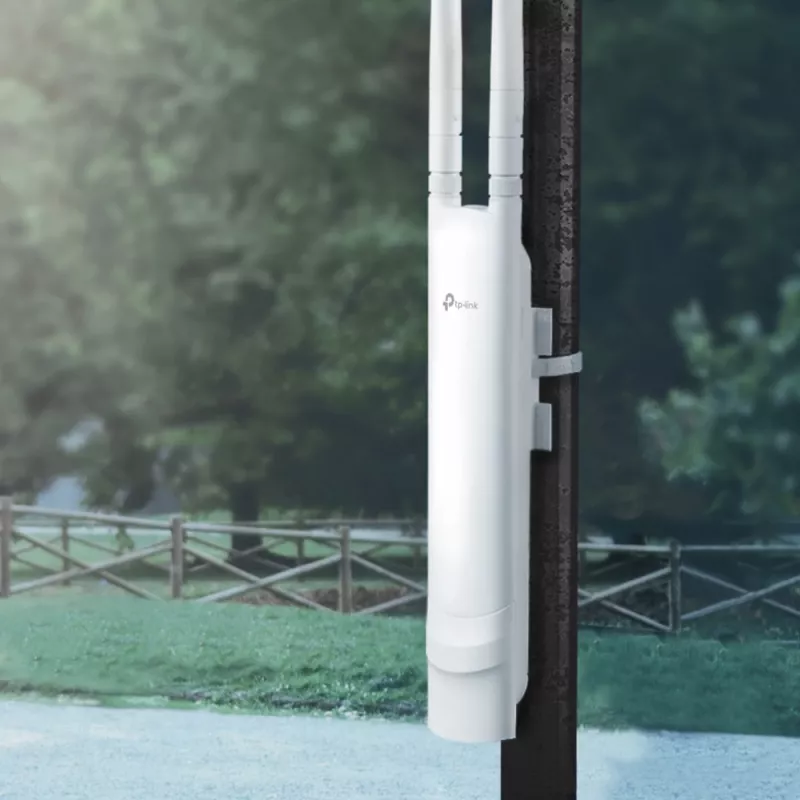

Mount the EAP110‑Outdoor on a wall or pole using the supplied mounting kit. Connect the access point to a PoE injector or PoE switch using a Cat5e/6 Ethernet cable to provide both power and network connectivity. Use the Omada Hardware Controller (OC200) or Omada Software Controller for centralized on‑premise management, or adopt Omada Cloud for remote administration. For initial setup and routine monitoring, follow the guided steps in the Omada mobile app to configure SSID, security (WPA/WPA2‑PSK or WPA/WPA2‑Enterprise), and other wireless settings.

Recommendations

Install antennas before powering the unit and position the access point at a height and location free of large obstructions for best outdoor coverage; observe the product’s IP65 limits and avoid submersion. Use Cat5e/6 cabling for PoE delivery and enable appropriate WPA/WPA2 security settings when deploying public or guest SSIDs.
