Lanview LVN128146 Keystone-moduuli

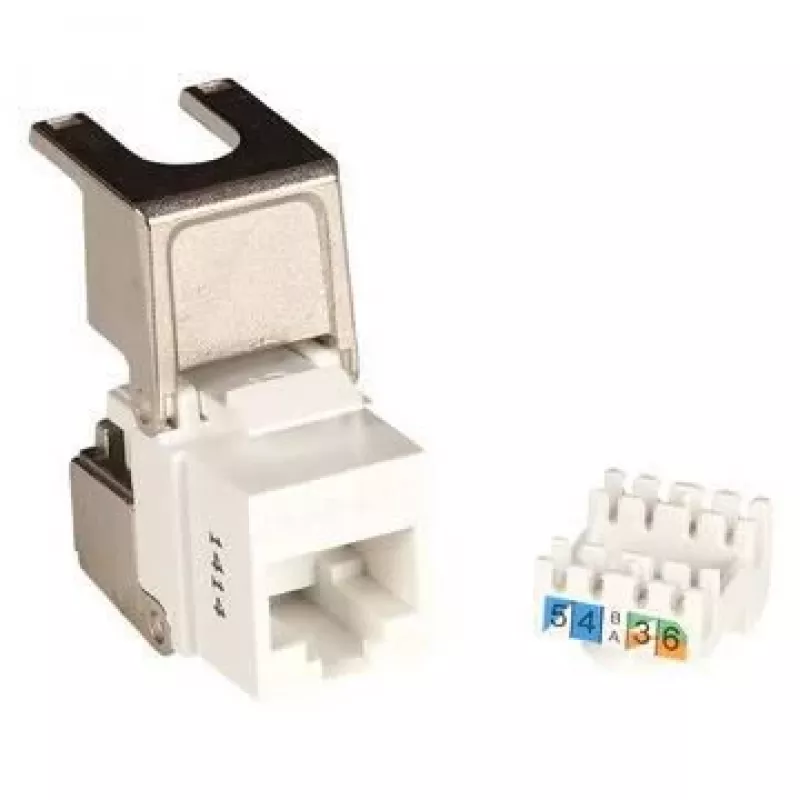

The Lanview LVN128146 keystone module is an unshielded Cat6a jack designed for patch panels and data outlet installations. Its flat construction and compact dimensions (15 mm × 30 mm × 20 mm) allow installation in standard depth back boxes while offering multiple cable entry directions. The module includes an RJ-45 connector and comes in a metallic finish, providing a simple, space-efficient solution for creating reliable network connections.

Advantages

The flat construction permits versatile mounting options, including flush or angled shutter configurations when used with keystone-compatible faceplates. Its compact size makes it suitable for tight spaces in patch panels and outlets, and the RJ-45 interface ensures compatibility with standard Ethernet cabling. Being an unshielded Cat6a keystone jack, it supports high-speed network links without added shielding hardware.

Suitable for

• Patch panels in wiring closets and comms racks
• Wall outlets and faceplates with keystone openings
• Data, voice and standard Ethernet network terminations
• Installations requiring multiple cable entry directions

Key specifications

• Brand: Lanview
• Model / MPN: LVN128146
• Type: Unshielded Cat6a keystone jack
• Connector: RJ-45
• Construction: Flat
• Color / Finish: Metallic
• Dimensions (W × D × H): 15 mm × 30 mm × 20 mm
• Package quantity: 1 piece
• EAN: 5704174319085

How to use

Terminate the appropriate Cat6a UTP cable onto the keystone module following standard color-code wiring (T568A or T568B) and secure the conductors per the module's termination style. Insert the keystone into a compatible faceplate or patch panel slot until it snaps into place. When mounting in a standard depth back box, orient the module to accommodate the desired cable entry direction, then connect patch cords to the RJ-45 port for network access.

Recommendations

Use the Lanview LVN128146 in dry, indoor environments and pair it with compatible keystone faceplates or patch panels. For best performance, follow Cat6a cabling practices — maintain proper bend radius, avoid untwisting pairs excessively during termination, and choose the matching wiring standard across the link.
