Lanview RWP12U45BL-D telinekaappi 12U seinäasennusteline musta

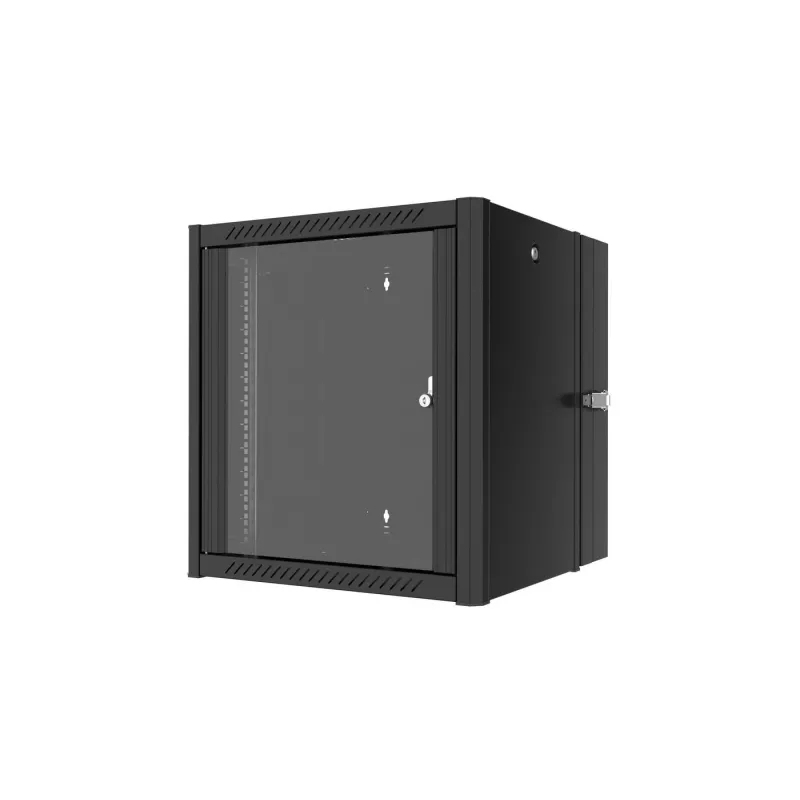

Lanview RWP12U45BL-D is a 12U wall-mounted rack with IP20 protection, designed for installing and protecting 19" compatible network and telecom equipment. The cabinet features a glass front door with extruded aluminum frame and colored side strips, a double wall-mount rear section for additional 19" equipment, multiple cable inlet points and removable side panels for easy access. It is supplied with one set and two device installation rails and supports passive or optional active ventilation.

Advantages

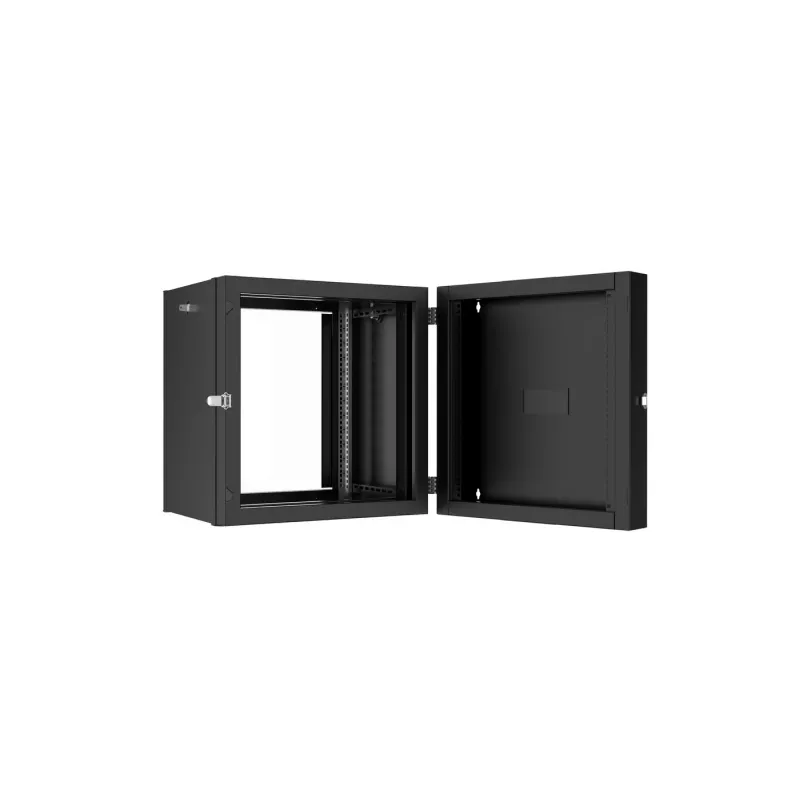

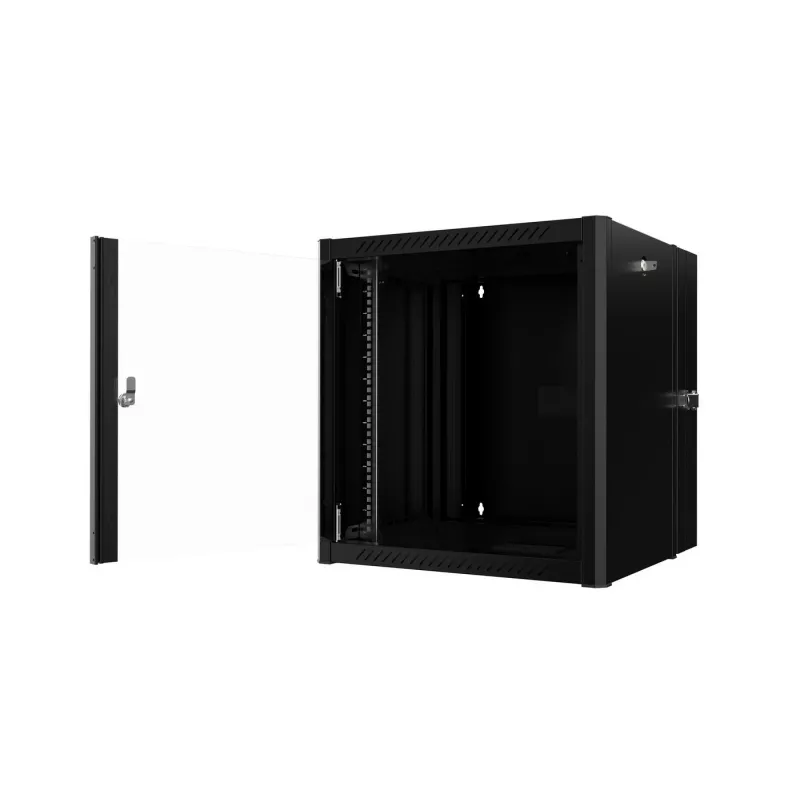

The cabinet combines a tempered 4 mm antistatic glass door with an aluminum frame for improved fracture resistance and a decorative appearance. A double wall-mounted back section allows fitting further 19" devices up to 70 mm depth and provides a rear cable inlet for tidy cable routing. Multiple 145 x 70 mm cable entry openings (top, bottom and rear) plus a rubber-edged movable cable entry module with a 0–50 mm sliding compression system ensure secure cable management and reduced dust ingress. Removable side panels provide access from front and sides for wall-mounted installation and full access in freestanding use. The rack is compatible with a ventilation module with up to two fans for active cooling or can rely on passive ventilation through upper chassis openings.

Suitable for

• Mounting 19" network switches, patch panels and small servers
• Housing cable harnesses and structured cabling in offices or server rooms
• Wall-mounted installations where space-saving and secure equipment enclosure are needed

Key specifications

• Rack capacity: 12U
• Protection rating: IP20
• External dimensions (W x D x H): 600 x 600 x 639 mm (rack: 600 x 450 x 639 mm; double wall-mount section: 600 x 150 x 631 mm)
• Door: 4 mm tempered antistatic glass with extruded aluminium frame
• Device depth supported in rear section: up to 70 mm
• Cable entries: 145 x 70 mm openings at top, bottom and rear; movable rubber-edged cable entry module (0–50 mm)
• Ventilation: passive via chassis openings; optional fan module up to 2 fans for active ventilation
• Weight: 39 kg
• Colour: Black
• Includes: 1 set and 2 device installation rails

How to use

Mount the cabinet on a suitable wall surface following local building and load-bearing regulations. Use the double wall-mount section to install additional 19" compatible devices up to 70 mm deep and secure equipment on the supplied installation rails, adjusting rail depth as required. Route cables through the top, bottom or rear 145 x 70 mm inlet openings; use the movable rubber-edged cable entry module to compress and protect incoming cables while minimising dust. If active cooling is required, install the optional fan module (up to two fans) into the upper ventilation opening; otherwise rely on the passive ventilation holes for natural airflow.

Recommendations

Install only equipment that conforms to 19" mounting standards and does not exceed the supported depth in the rear section. Ensure adequate ventilation and follow electrical safety and grounding practices when installing powered equipment and optional fan modules.
