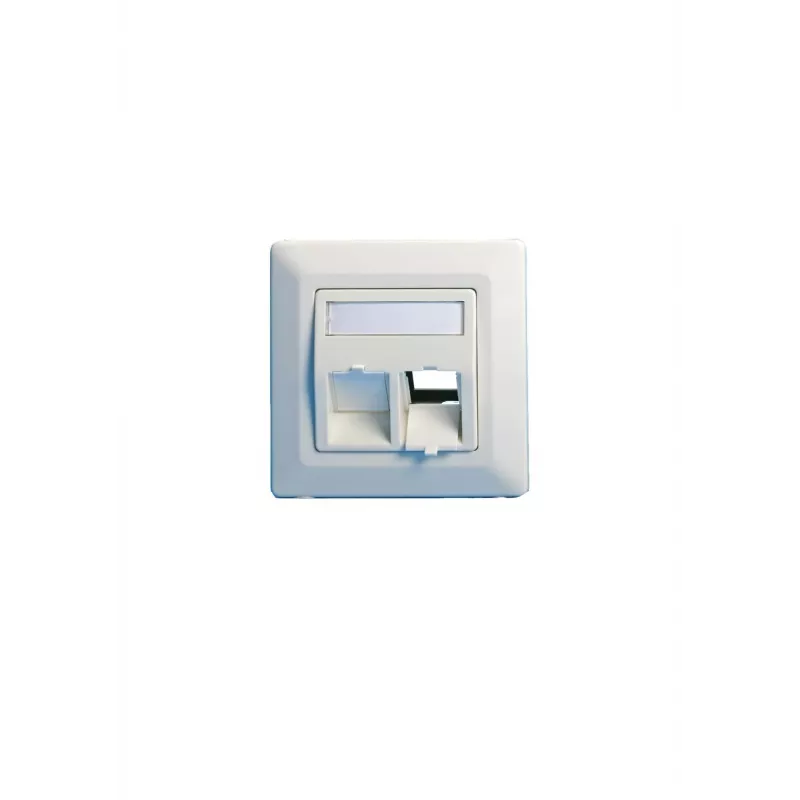

Lanview LVN126188 seinälevy/kytkinlevy valkoinen

The Lanview LVN126188 wall plate features an RJ45 Keystone Flip jack mounted at an angle to reduce the required back box depth. The screwless, white cover plate includes a protected text window for an ID label and zinc alloy fittings. Designed for compatibility with Lanview products, this single-piece wall plate provides a neat, low-profile finish for network outlet installations.

Advantages

The angled RJ45 Keystone Flip jack reduces rear clearance requirements, allowing installation in shallower back boxes. The screwless cover delivers a clean aesthetic, while the protected text window preserves labeling against dust and wear. Zinc alloy fittings increase mechanical durability compared with standard plastic fittings.

Suitable for

• Residential network outlet installations
• Shallow back box or limited depth wall cavities
• Office wall-mounted LAN ports requiring a neat, screwless finish

Key specifications

• Model: Lanview LVN126188
• Color: White
• Dimensions: 80 mm x 80 mm
• Weight: 74 g
• Pack quantity: 1 piece
• Connector: Angled RJ45 Keystone Flip jack
• Fittings: Zinc alloy

How to use

Mount the wall plate onto a compatible 80 mm x 80 mm back box or bracket. Terminate the Ethernet cable onto a compatible RJ45 keystone module or jack, insert the keystone into the flip opening, and secure the plate using the concealed fittings. Slide an ID label into the protected text window to identify the port.

Recommendations

For best results use with Lanview compatible keystone modules and ensure the back box depth accommodates the angled jack; verify cable termination meets category requirements for the intended network speed.
