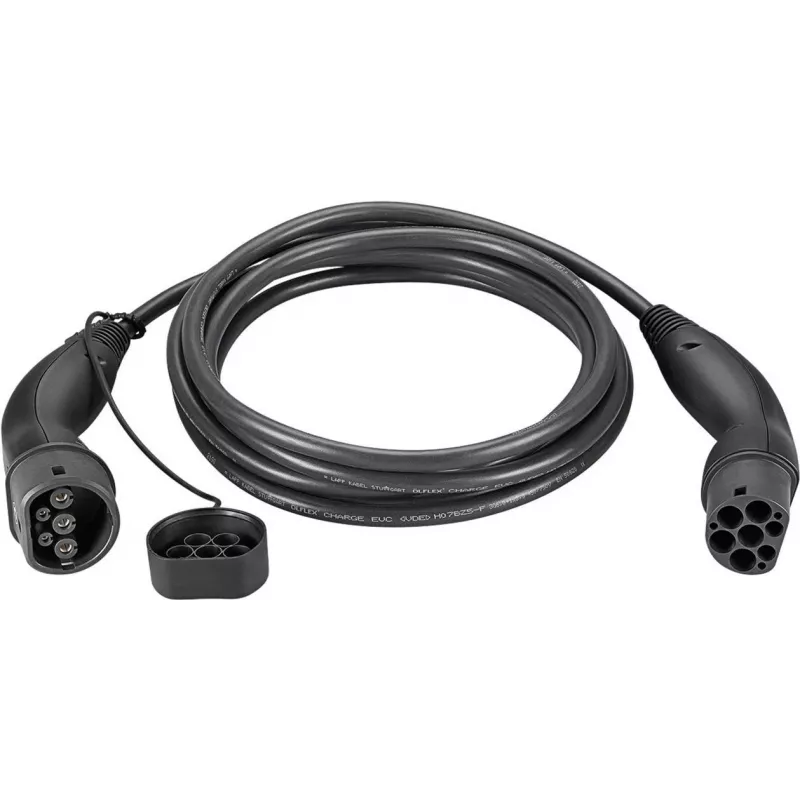

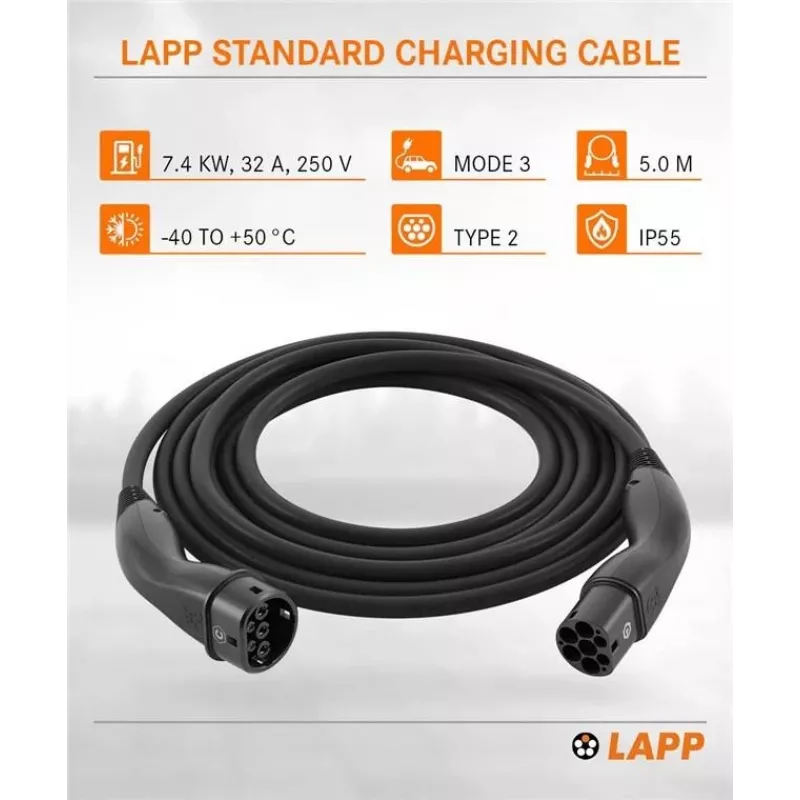

LAPP MOBILITY tyyppi 2 EV-latauskaapeli, 7,4 kW, 5 m, musta (61780)

Drivers of electric vehicles in Europe can rely on this LAPP MOBILITY charging cable for daily AC charging at home or at public stations. It connects the vehicle's Type 2 inlet to a Type 2 charging station, supporting Mode 3 charging with a maximum power of 7.4 kW at 230 V single-phase. The 5 m cable gives you flexibility in parking, and the black PUR jacket withstands mechanical stress, UV, oil, and abrasion. The cable is halogen-free, with an IP44 rating when connected, and operates from -30 °C to +50 °C.

Key specifications

• Connector 1 (vehicle side): Type 2 (IEC 62196-2)
• Connector 2 (charging station side): Type 2 (IEC 62196-2)
• Maximum charging power: 7.4 kW
• Maximum current: 32 A
• Number of phases: 1-phase
• Operating voltage: 230 V AC
• Cable length: 5 m
• Cable diameter: 12.8 mm
• Cable colour: Black
• Cable jacket material: PUR (Polyurethane)
• IP rating: IP44 (connected)
• Operating temperature: -30 °C to +50 °C
• Halogen-free: Yes
• UV resistant: Yes
• Oil resistant: Yes
• Abrasion resistant: Yes
• Certification: TÜV Rheinland
• Standards: IEC 62196-2, EN 50620

Why choose it

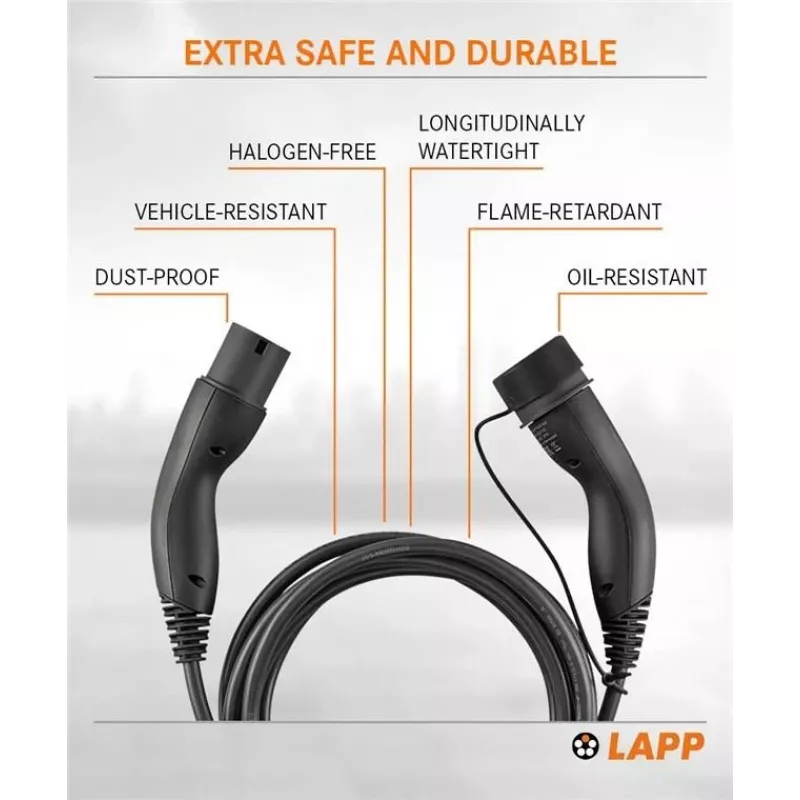

This cable is built for durability and safety. The PUR jacket is tough yet flexible, and the cable is halogen-free for low smoke emission. The IP44 rating protects against splashing water when connected, and the wide temperature range ensures reliable operation in most climates. TÜV certification confirms compliance with relevant standards.

Ideal use cases

• Home charging with a wallbox
• Public AC charging stations
• Workplace charging
• Fleet charging

Good to know

The cable is designed for Mode 3 charging only. Always ensure the charging station and vehicle are compatible with Type 2 connectors and the maximum current. Store the cable in a dry place when not in use.
