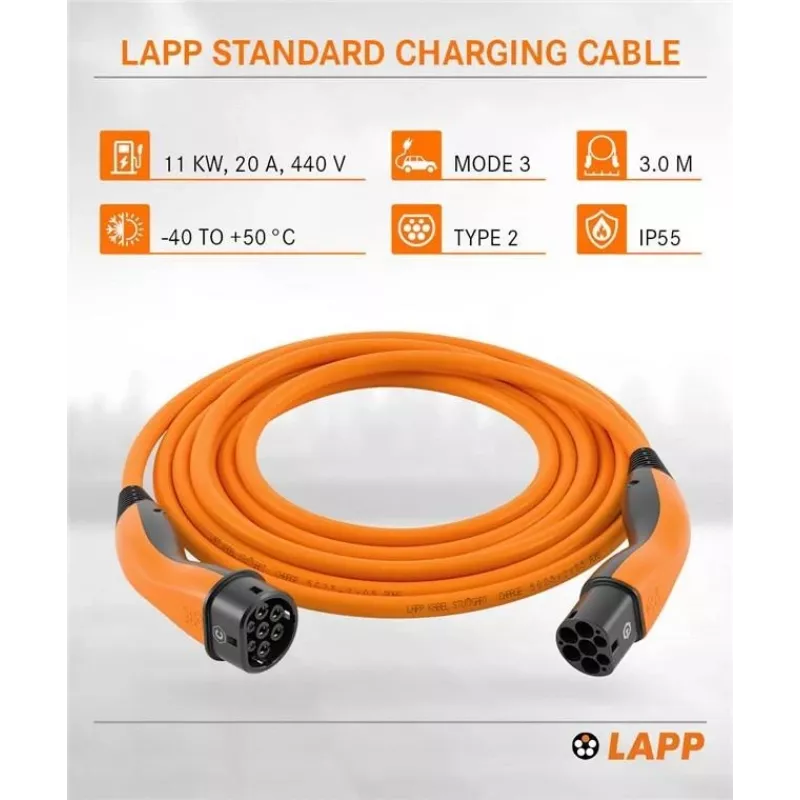

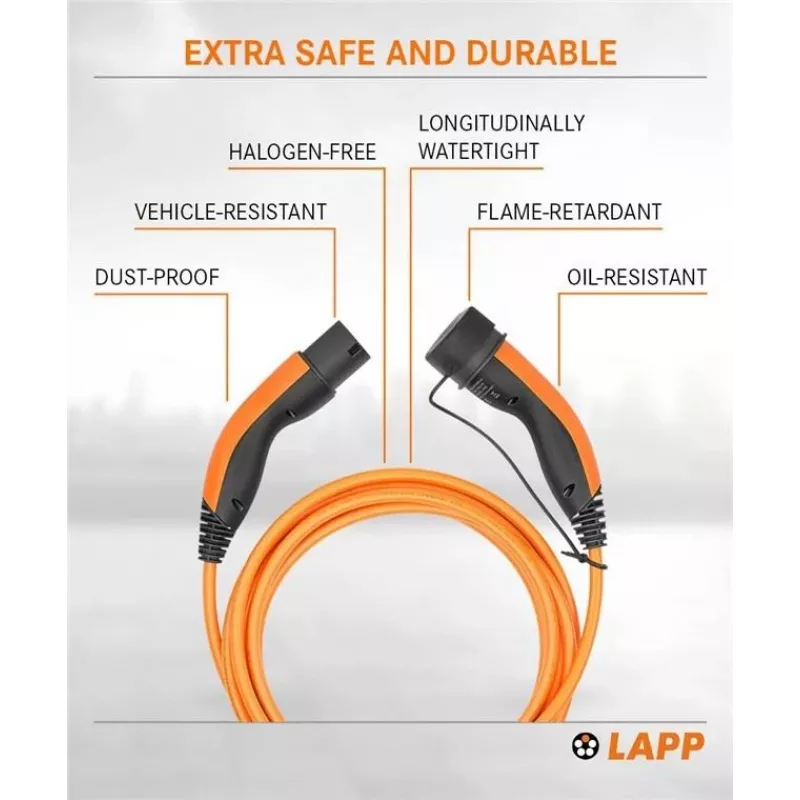

LAPP Type 2 EV-latauskaapeli 11 kW 3m oranssi 75743

Electric vehicle drivers often face the challenge of finding a reliable, durable charging cable that works seamlessly with public and home charging stations. The LAPP Type 2 Charging Cable solves this by providing a robust, weather-resistant connection for 3-phase AC charging up to 11 kW.

Who is it for

This cable is ideal for EV owners who need a dependable Type 2 to Type 2 cable for charging at stations without a tethered cable, or as a replacement for a worn-out original cable. It suits both private and commercial use.

Main features

• Supports 3-phase charging up to 11 kW (16 A, 400 V AC)
• 3-meter length offers flexibility in parking positions
• High-visibility orange TPE jacket resists UV and abrasion
• IP44 protection when connected, suitable for outdoor use in all weather
• Compatible with all Type 2 (IEC 62196-2) EVs and charging stations

Specifications

• Connector 1: Type 2 (IEC 62196-2)
• Connector 2: Type 2 (IEC 62196-2)
• Maximum charging power: 11 kW
• Maximum current: 16 A
• Voltage rating: 400 V AC
• Number of phases: 3
• Cable length: 3 m
• Cable colour: Orange
• Cable cross-section: 5 x 2.5 mm² + 2 x 0.5 mm²
• Conductor material: Copper
• Insulation material: TPE
• Jacket material: TPE
• Operating temperature range: -30°C to +50°C
• Protection class (connected): IP44
• Certifications: CE, TÜV

Tips

Always ensure the connectors are clean and dry before use. Store the cable in a cool, dry place when not in use to prolong its lifespan. The orange colour enhances visibility, reducing tripping hazards in low light.
