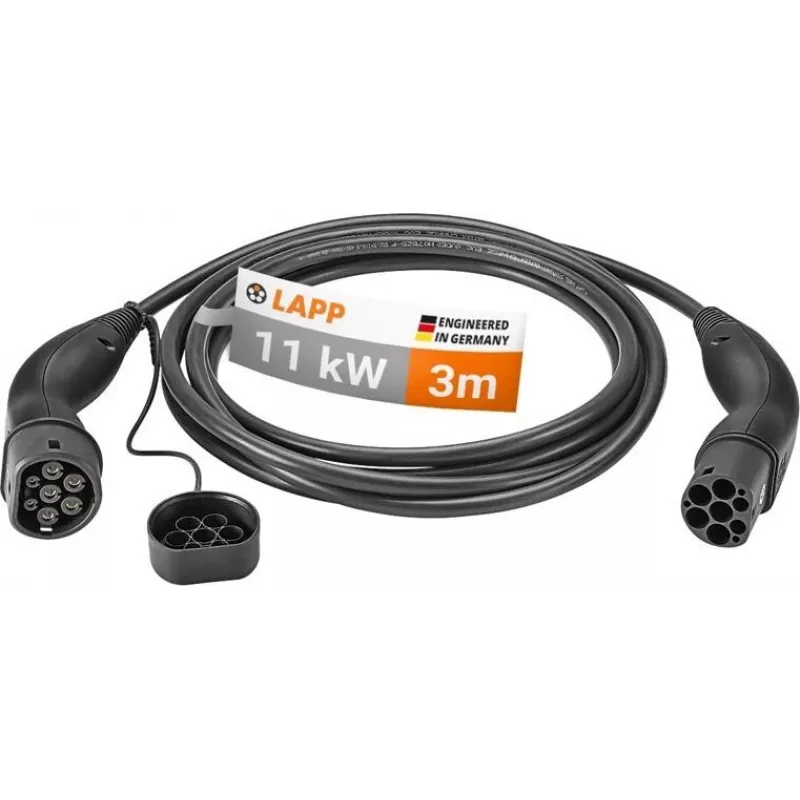

LAPP Type 2 EV-latauskaapeli Mode 3 11 kW 3-vaiheinen 16 A 3 m musta 75747

For electric vehicle owners who charge at public AC stations or wallboxes with a Type 2 outlet, this LAPP charging cable delivers reliable 11 kW three-phase power. The 3-meter black cable connects your EV's Type 2 inlet to the charging station, supporting Mode 3 AC charging with a maximum current of 16 A per phase at 400 V. Its TPE-U jacket remains flexible in cold weather and withstands frequent handling, while the IP44 rating protects the connection from splashing water during outdoor charging.

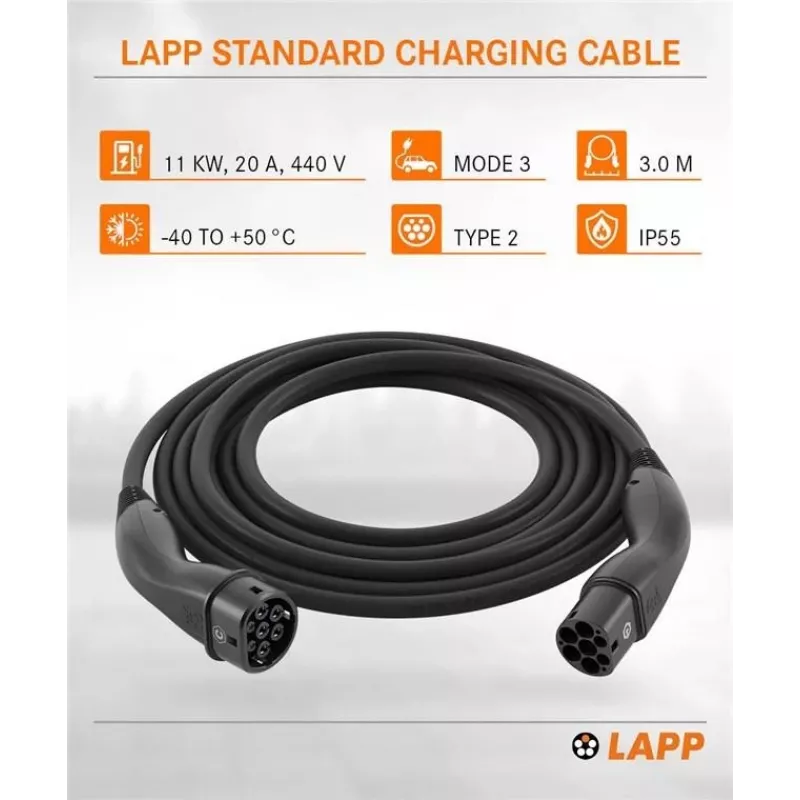

Key specifications

• Connector type: Type 2 (IEC 62196-2) on both vehicle and infrastructure side
• Maximum charging power: 11 kW (3-phase, 16 A, 400 V AC)
• Cable length: 3 m
• Cable cross-section: 5 x 2.5 mm² power conductors + 2 x 0.5 mm² signal conductors
• Cable jacket material: TPE-U
• Ingress protection: IP44 when connected
• Operating temperature range: -30°C to +50°C
• Standards compliance: IEC 62196-2, EN 50620

Why choose it

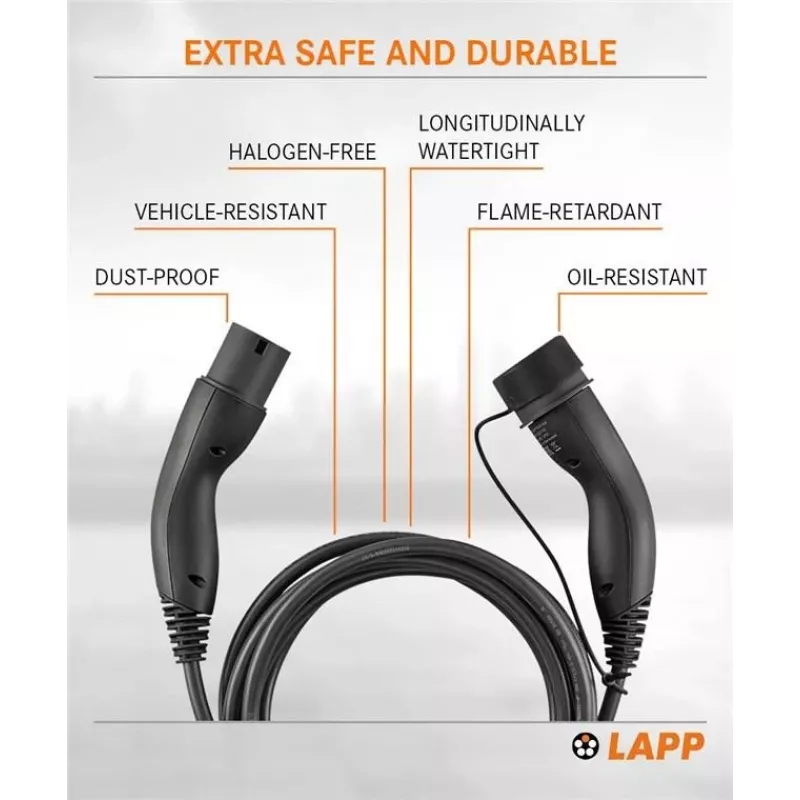

LAPP is a trusted manufacturer of industrial cables, and this EV charging cable is built for daily use. The TPE-U jacket resists abrasion, oils, and UV exposure, ensuring long service life even in harsh environments. The 3-meter length provides flexibility for most parking situations without excessive cable clutter.

Ideal use cases

• Charging electric vehicles at public AC charging stations with Type 2 outlets
• Use with home wallboxes that have a Type 2 socket
• Charging EVs with a Type 2 inlet, including most European models

Good to know

The cable is designed for Mode 3 charging, where the charging station communicates with the vehicle for safe power delivery. It is not suitable for DC fast charging. The IP44 rating applies when the connectors are properly mated; the cable itself is not waterproof when disconnected.
