Laservaaitustyökalu Einhell TC-LD 25

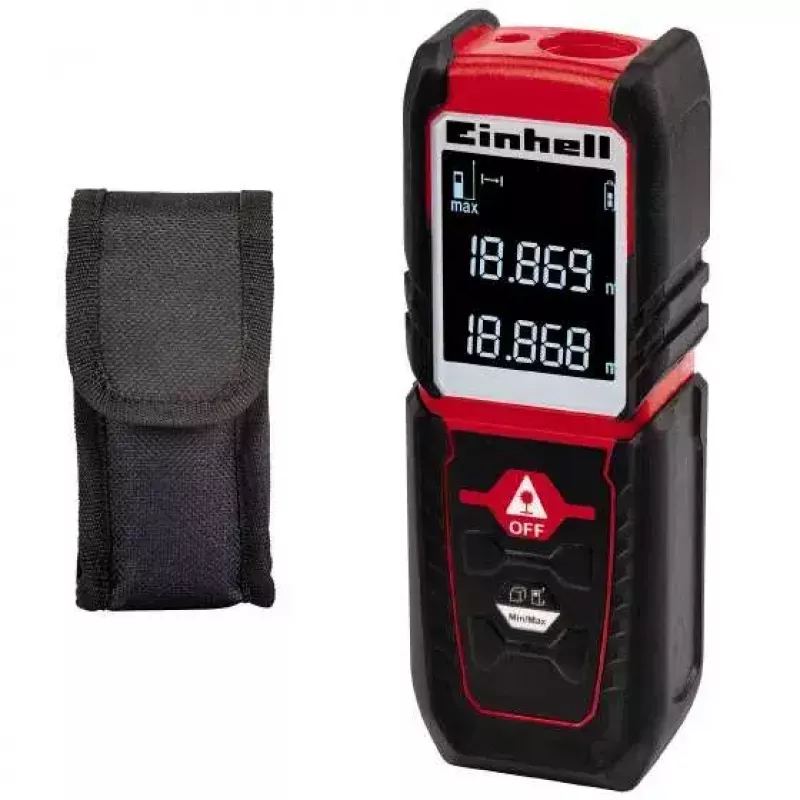

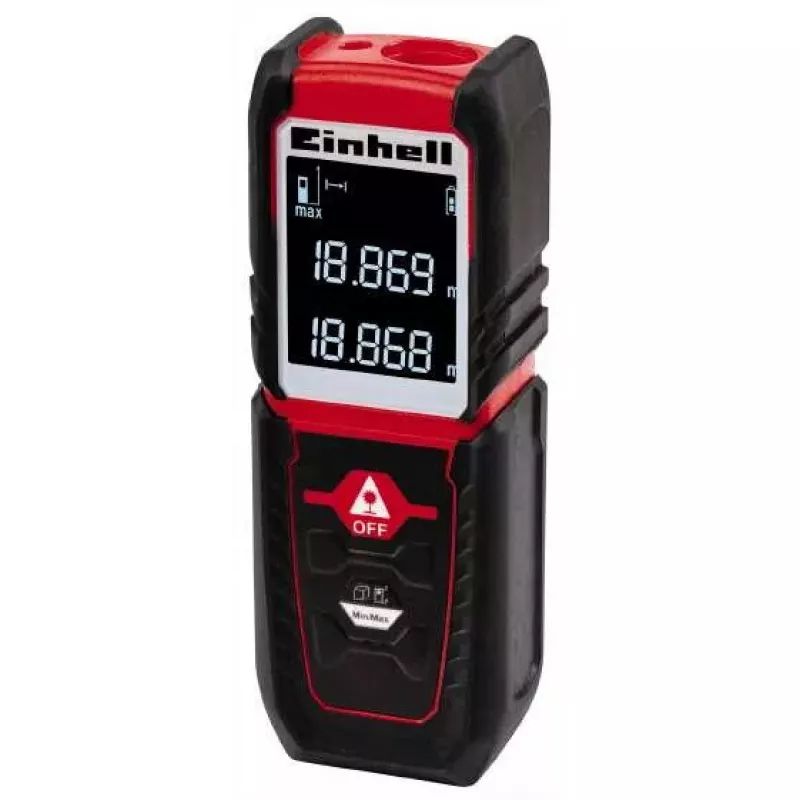

The Einhell TC-LD 25 laser level tool is a compact, pocket-sized laser distance meter designed for quick and precise distance measurements up to 25 m with a levelling accuracy of ±3 mm/m. Lightweight at approximately 90 g and powered by two 1.5 V AAA batteries, the device supports measurements from either the front or rear edge, and can calculate lengths, areas and volumes. The unit’s black and red housing, soft grip and included storage bag make it easy to carry, position and protect on job sites or at home.

Advantages

The TC-LD 25 provides fast distance readings and supports continuous min/max measurement for tracking changing distances. A safety interlock requires a repeated power-up before the laser emits, reducing accidental exposure. Automatic shut-off after three minutes of inactivity helps conserve battery life. Its compact form factor and ergonomic soft grip permit comfortable single-handed operation, while the option to measure from front or back edges increases placement flexibility.

Suitable for

• Interior leveling and alignment tasks in renovation and carpentry work
• Measuring room dimensions, calculating floor areas and volumes
• Garden landscaping and outdoor distance checks up to 25 m
• Quick checks of workpieces and installations in a home workshop

Key specifications

• Maximum measuring range: 25 m
• Levelling accuracy: ±3 mm/m
• Power supply: 2 × 1.5 V AAA batteries (not included)
• Automatic switch-off after 3 minutes of inactivity
• Measurement reference: selectable front or rear edge
• Continuous min/max measurement function
• Weight: approx. 90 g
• Soft grip housing and compact, pocket-sized design
• Includes storage bag

How to use

Insert two 1.5 V AAA batteries into the battery compartment following the polarity markings. Position the device on a stable surface or hold it by the soft grip. Select the measurement reference (front or rear edge) as required and power the unit on; repeat the power-up to enable the laser emission for safety. Aim the laser at the target point and press the measurement button to obtain a distance reading. Use the device functions to calculate area or volume from measured lengths or activate min/max mode for continuous distance tracking. The device switches off automatically after three minutes of inactivity.

Recommendations

For best accuracy, measure from a stable position and avoid reflective surfaces or direct sunlight on the laser. Replace batteries when readings become dim or inconsistent, store the device in the supplied bag when not in use, and follow local laser safety guidelines to avoid direct eye exposure.
