LCD-näyttövarsi Standard ROLINE 17.03.1123

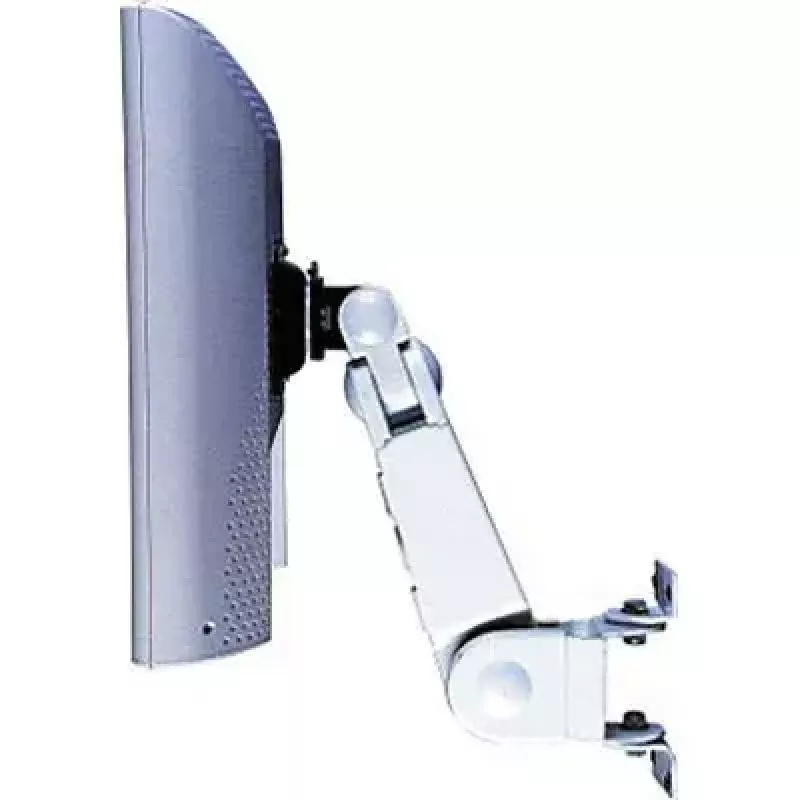

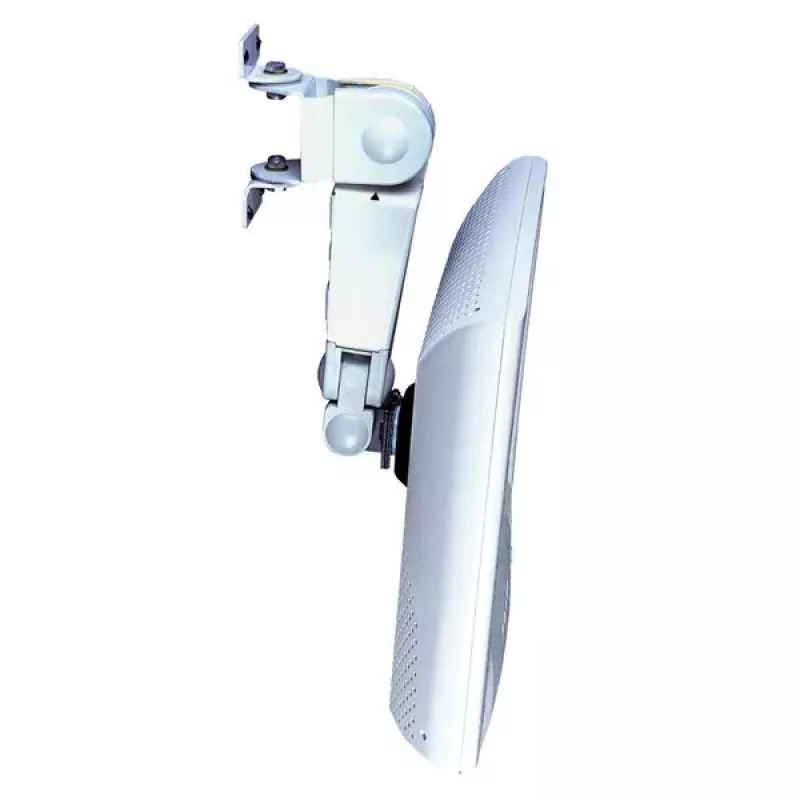

The ROLINE LCD Monitor Arm Standard ROLINE 17.03.1123 is a white wall-mounted arm designed for single LCD monitors weighing up to 6 kg. It supports VESA 75 x 75 mm and VESA 100 x 100 mm mounts and provides four articulation points for flexible positioning to achieve comfortable viewing angles in work or public environments.

Advantages

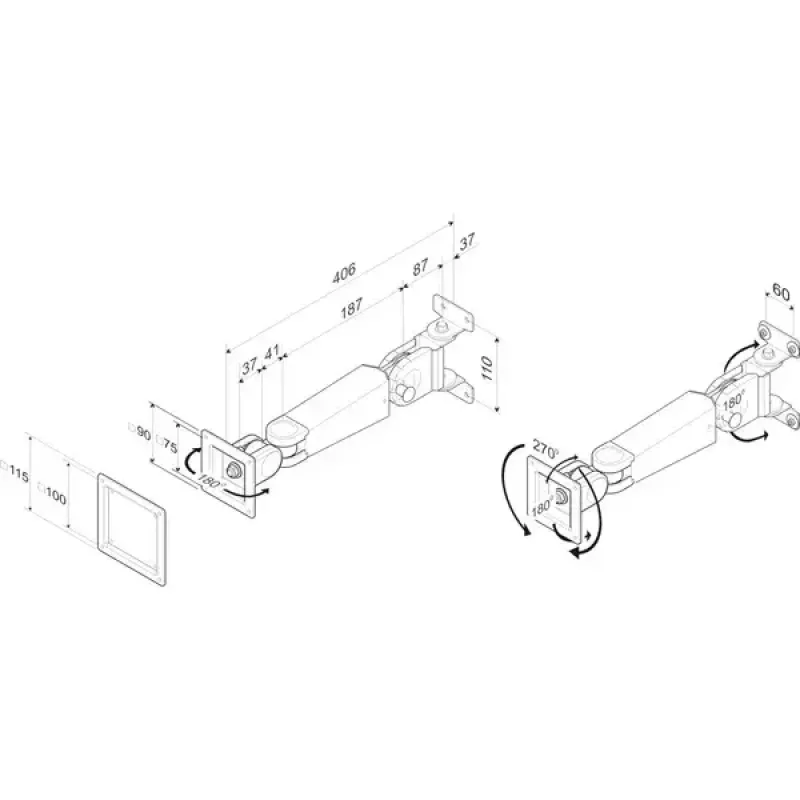

The arm offers four rotating joints that allow tilt, swivel and positioning adjustments, enabling improved ergonomics and screen flexibility. Its VESA-compatible mounting (75 x 75 and 100 x 100) ensures broad monitor compatibility. The wall-mount design saves desk space and the white finish provides a discreet, modern appearance.

Suitable for

• Home offices with limited desk space
• Reception areas and public kiosks
• Workstations requiring ergonomic screen adjustment
• Small monitors or displays up to 6 kg

Key specifications

• Brand: ROLINE
• Model: 17.03.1123
• Maximum weight capacity: 6 kg
• Supported VESA mounts: 75 x 75 mm, 100 x 100 mm
• Number of displays: 1
• Mount type: Wall mount
• Product colour: White

How to use

Mount the arm on a solid wall using appropriate fixings (not included) and align the plate to the chosen position. Attach the monitor to the VESA plate using the matching screws for 75 x 75 mm or 100 x 100 mm patterns. Adjust the arm across its four joints to set the desired height, tilt and viewing angle. Check that all fasteners are secure before use.

Recommendations

Use the ROLINE monitor arm for displays within the specified weight limit (up to 6 kg) and ensure the wall and fixings can support the combined weight. Regularly check and tighten screws to maintain stable positioning.
