LED-valaisin Digitus DN-19 LIGHT-3 3W 270lm 6000K

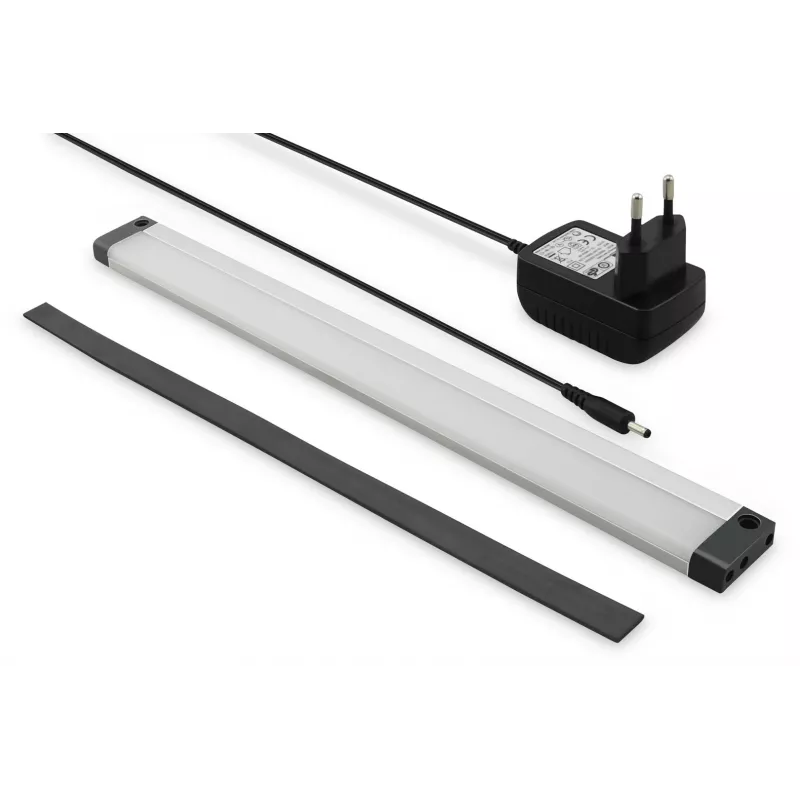

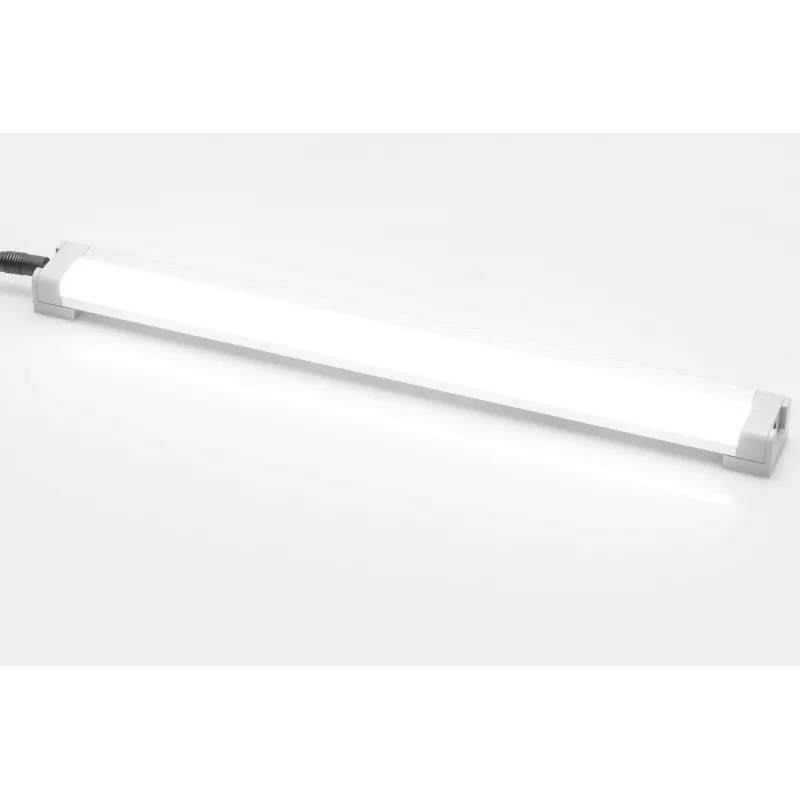

The Digitus LED Bulb DN-19 LIGHT-3 is a compact 3 W lighting solution designed for installation inside 483 mm (19") enclosures. Delivering 270 lm at a daylight‑like 6000 K color temperature, the lamp provides immediate maximum light without a warm‑up phase and has an expected lifetime of 25,000 hours. Its slim design, magnetic mounting strip (285 mm) and M2.5 screw holes allow horizontal or vertical installation and flexible placement inside cabinets.

Advantages

The LED bulb is energy efficient (energy class F) and produces no noticeable heat while offering full brightness from switch‑on. Two operating modes — automatic door mode (blocking type) and touch/wave mode (waving type) — provide adaptable control. A power adapter is included for immediate use, and the product is cost effective with a long service life.

Suitable for

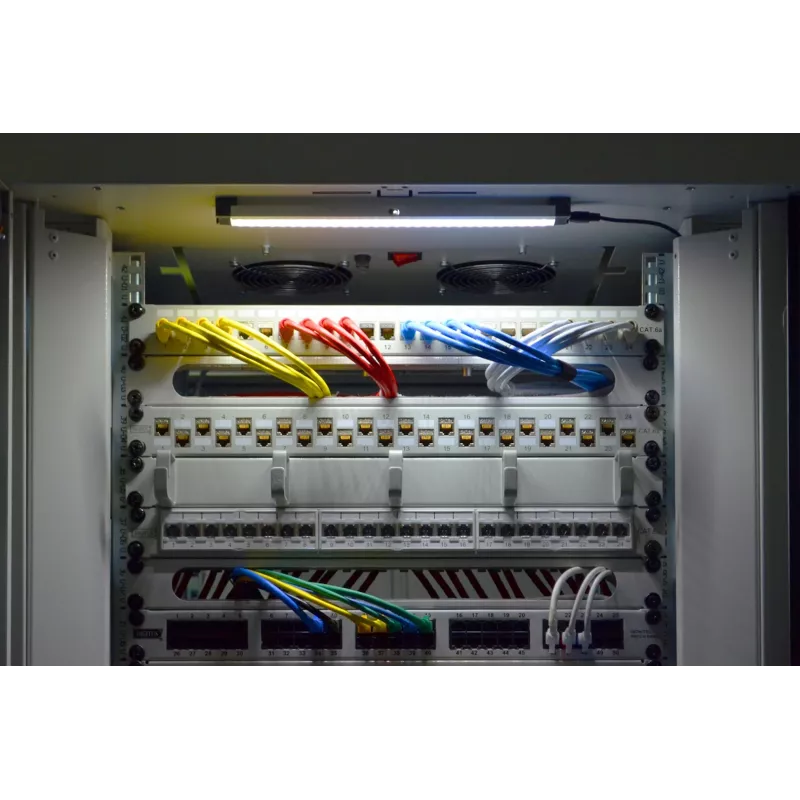

• Lighting 483 mm (19") server or network cabinets
• Illumination of enclosures, racks and control cabinets
• Areas requiring compact, low‑heat LED lighting

Key specifications

• Brand: DIGITUS
• Model: DN-19 LIGHT-3
• Power: 3 W
• Luminous flux: 270 lm
• Colour temperature: 6000 K
• Energy efficiency class: F
• Mounting: 285 mm magnet strip or M2.5 screws
• Modes: Automatic door (blocking) and touch/wave (waving)
• Designed for 483 mm (19") cabinets

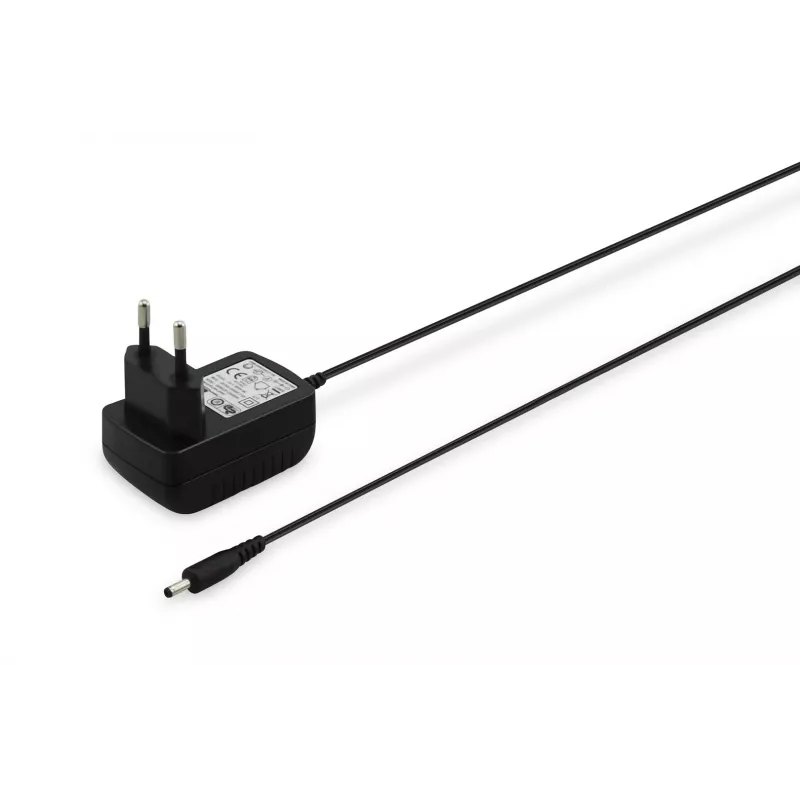

• Included: Power adapter

How to use

Mount the LED bulb inside your 483 mm (19") cabinet either by attaching the magnetic strip to a metallic surface or by fixing it with M2.5 screws. Choose horizontal or vertical orientation as needed. Use the switch to select the automatic door mode so the sensor turns the light on when the cabinet door opens and off when it closes, or select the touch/wave mode and wave once in front of the sensor to switch the light on and wave again to switch it off. Connect the included power adapter to a suitable outlet to power the unit.

Recommendations

For reliable sensor operation, mount the sensor so it is not obstructed by cables or equipment; ensure the magnetic strip has full contact with the cabinet surface or use screws for permanent fixing. Use the automatic mode for hands‑free access and touch/wave mode when manual control is preferred.
