LevelOne GEMINI 8-kanavainen PoE-verkkotallennin, 8 PoE-lähtöä, H.265

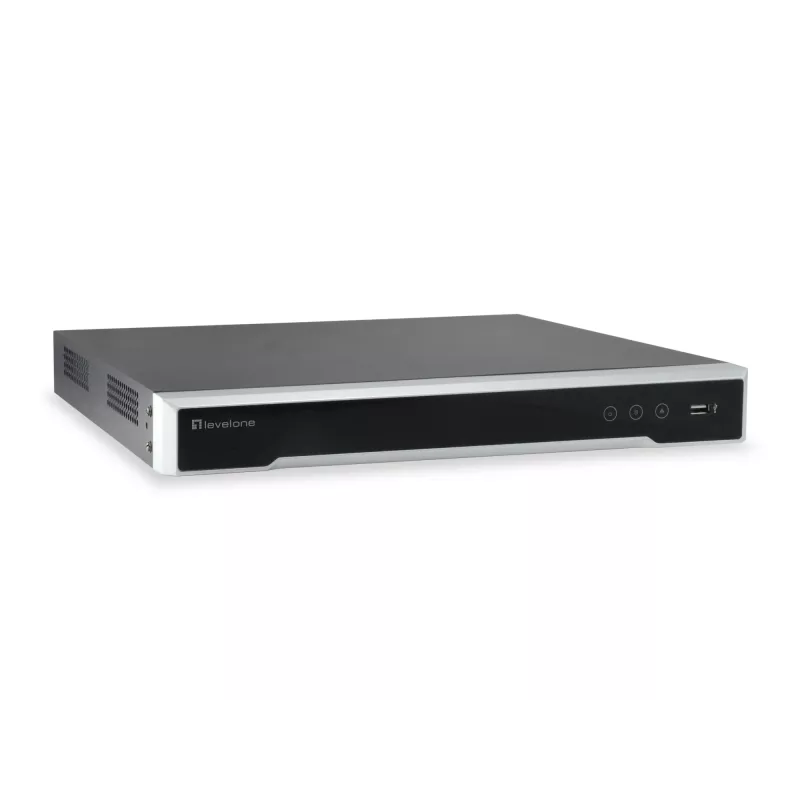

The LevelOne GEMINI NVR-0508 is an 8-channel PoE network video recorder that provides simultaneous live view, recording and playback for up to eight IP cameras with resolutions up to 8 megapixels (3840 x 2160). It supports H.265, H.264+, H.264 and MPEG4 video compression, offers two internal HDD bays and built-in HDMI, VGA and USB ports for direct local operation without a PC. An integrated 8‑port 802.3at PoE switch supplies power and data to connected PoE cameras. The device includes free Central Management System (CMS) software capable of managing multiple NVRs for larger deployments.

Advantages

The NVR-0508 combines PoE power delivery and network recording in one unit, reducing cabling and installation complexity. Support for modern H.265 compression lowers storage and bandwidth requirements while retaining image quality. Native HDMI/VGA output and USB ports allow direct monitoring and control with a monitor, mouse or keyboard. Two HDD bays and a high supported capacity provide flexible local storage options. Included CMS software supports centralized management without additional license fees.

Suitable for

• Small and medium business premises requiring up to 8 IP cameras
• Retail stores and offices needing local recording and remote monitoring
• Multi-site surveillance when combined with the included CMS for centralized management
• Installations that benefit from PoE to simplify camera power and data cabling

Key specifications

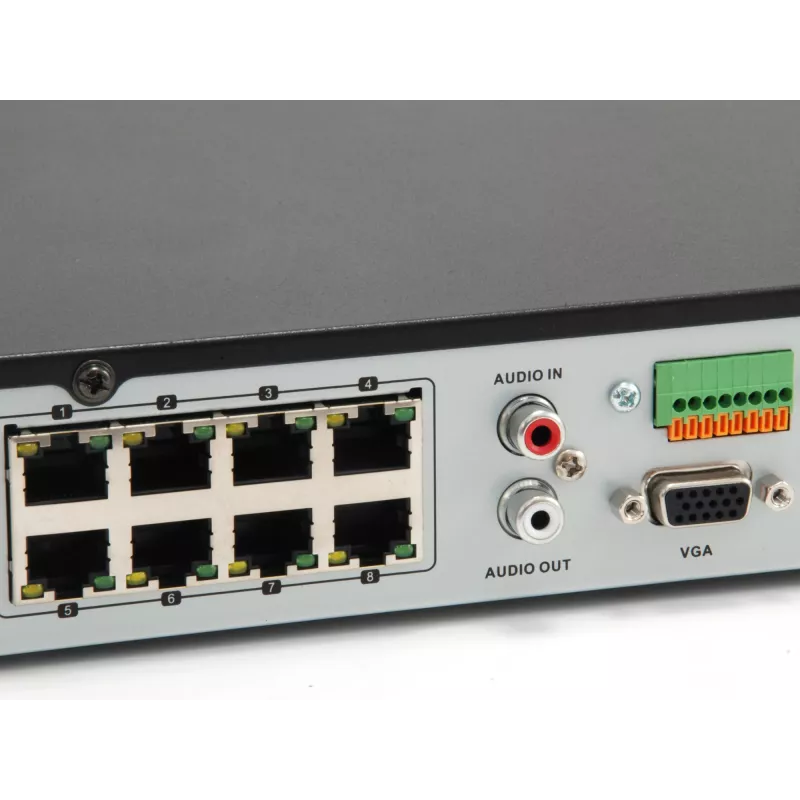

• Channels: 8 PoE channels with integrated 802.3at switch
• Maximum resolution: up to 3840 x 2160 (8 MP)
• Video compression: H.265 / H.264+ / H.264 / MPEG4
• Storage: 2 × HDD bays (SATA), supported total capacity per product data up to 12 TB
• Video outputs: HDMI and VGA

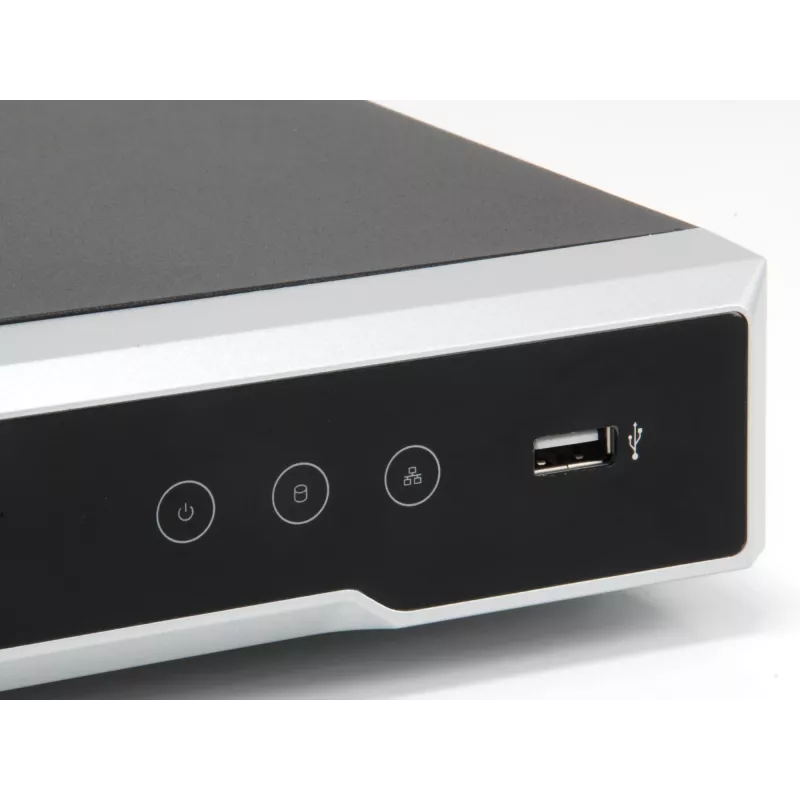

• USB: 2 × USB Type-A (USB 3.2 Gen 1 compatible)

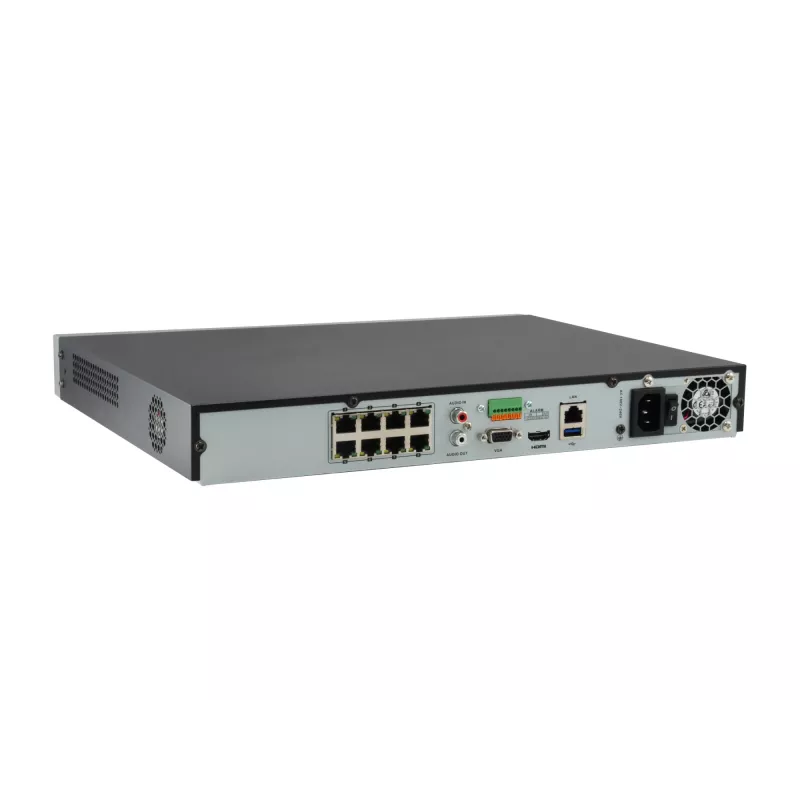

• Network ports: 9 × RJ-45 (including LAN and PoE switch ports)

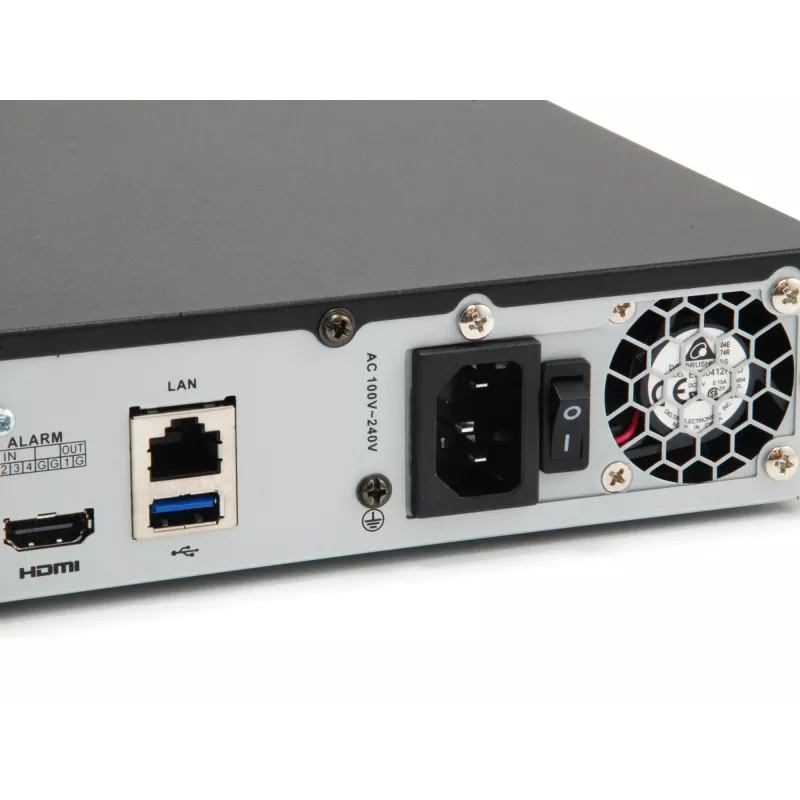

• Power: AC input 100–230 V; typical power consumption ~180 W
• Weight and colour: approx. 3 kg, black

How to use

Install the NVR in a suitable rack or shelf and connect IP cameras to the PoE ports using Ethernet cables; the integrated PoE switch will supply both power and data. Connect a monitor to the HDMI or VGA output and a mouse via USB for local configuration and live viewing. Access the web interface (IE) from a PC on the same network to perform detailed configuration, user management and recording schedules. Install the LevelOne NVR mobile app (iOS/Android) or the included CMS software for remote viewing and centralized management.

Recommendations

For reliable continuous recording, use enterprise-class SATA HDDs rated for surveillance workloads, configure appropriate recording schedules and enable H.265 compression to optimize storage. Keep firmware updated and restrict remote access through secure credentials and network controls.
