LevelOne Gigabit Fiber PCIe-verkkokortti, PCIe 4X, 2 x SFP

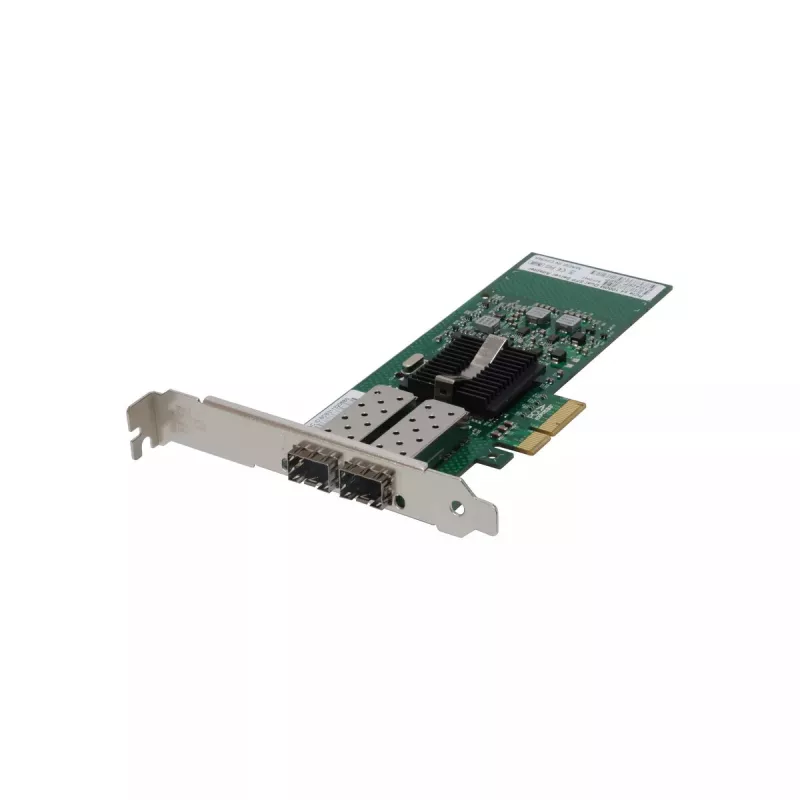

The LevelOne GNC-0122 Gigabit network card is a PCIe 4X fiber network adapter with two SFP ports designed for internal installation in servers and workstations. It provides wired gigabit connectivity over fiber, is built with an aluminium housing for durability, and supports common Ethernet standards to ensure compatibility with existing network infrastructures.

Advantages

The GNC-0122 supports Wake-on-LAN for remote startup and shutdown, iSCSI remote boot for network-based system initialization, and load balancing across multiple CPUs to optimise throughput. The card is compatible with x4, x8, and x16 PCI Express slots and works with most Network Operating Systems. Intel® PROSet Utility integration allows management via Windows Device Manager.

Suitable for

• Servers requiring fiber gigabit uplinks
• Workstations needing reliable wired connectivity
• Environments using iSCSI remote boot
• Setups that benefit from Wake-on-LAN management

Key specifications

• Model: LevelOne GNC-0122
• Interface: PCI Express (PCIe 4X compatible with x4/x8/x16 slots)
• Ports: 2 × SFP
• Connectivity: Wired, fiber
• Networking standards: IEEE 802.3, IEEE 802.3ad, IEEE 802.1p, IEEE 802.1Q, IEEE 1588
• Features: Wake-on-LAN, iSCSI remote boot, CPU load balancing
• Management: Intel® PROSet Utility for Windows Device Manager
• Colour / Material: Aluminium housing
• Weight: 0.083 kg
• EAN: 4015867191071

How to use

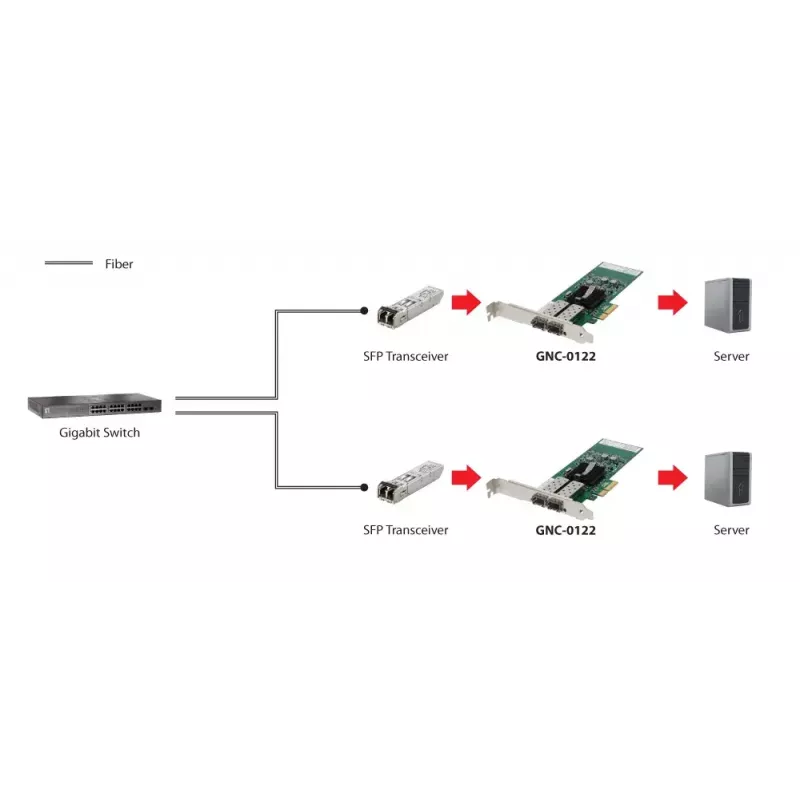

Install the GNC-0122 into an available PCIe x4, x8, or x16 slot on the host system and secure the card according to the chassis instructions. Insert compatible SFP transceivers into the two SFP ports and connect fiber cables to the network. Install the appropriate drivers and, where applicable, the Intel® PROSet Utility on Windows to configure advanced features such as load balancing, Wake-on-LAN and iSCSI boot.

Recommendations

For optimal performance, use certified SFP transceivers matched to your network’s speed and fibre type, keep drivers and firmware up to date, and configure Wake-on-LAN and iSCSI settings in the host OS or management utility according to your network policies.
