LevelOne HUBBLE 4-kanavainen verkkotallennin

The LevelOne HUBBLE NVR-1204 is a 4-channel network video recorder designed for small to medium IP surveillance installations. It supports up to 8 TB of storage on Serial ATA hard drives and provides audio support in G.711 and PCM formats. The recorder enables remote monitoring via Android and iOS mobile apps and is compatible with Microsoft Internet Explorer 9/10/11 for browser access. It requires a minimum of an Intel Core 2 Quad processor on the viewing/management workstation and supports up to three simultaneous users for live view and playback.

Advantages

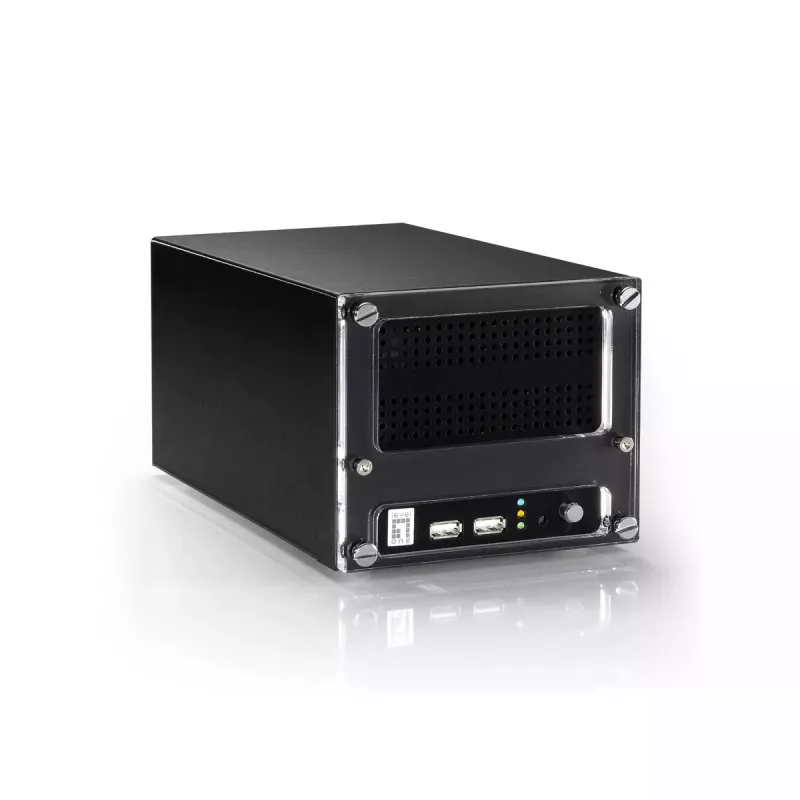

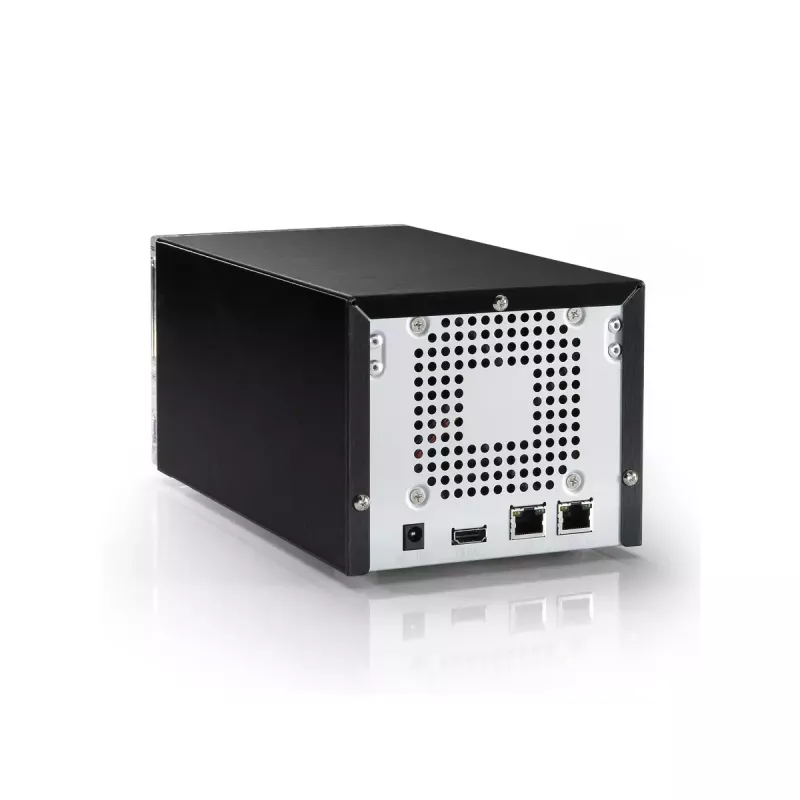

The NVR-1204 offers a compact, black enclosure with two Ethernet LAN (RJ-45) ports and two USB 2.0 ports for peripheral connectivity. With a power consumption of 22 W and a product weight of 1.39 kg, it is energy-efficient and space-saving. The device's Serial ATA HDD interface allows installation of up to 8 TB of internal storage, suitable for continuous or scheduled recording. Native support for common audio formats and mobile OS compatibility facilitate remote audio-video monitoring and basic system integration.

Suitable for

• Small business or retail video surveillance
• Office reception and common area monitoring
• Residential multi-camera security setups
• Sites requiring local storage up to 8 TB

Key specifications

• Brand: LEVELONE
• Model: HUBBLE NVR-1204 (MPN: NVR-1204, EAN: 4015867190753)
• Channels: 4 network video channels
• Storage interface: Serial ATA (supports up to 8 TB HDD)
• Audio formats: G.711, PCM
• Simultaneous users: 3
• Network ports: 2 × Ethernet LAN (RJ-45)
• USB ports: 2 × USB 2.0
• Power consumption: 22 W
• Minimum PC requirement: Intel Core 2 Quad processor
• Product colour: Black
• Weight: 1.39 kg

How to use

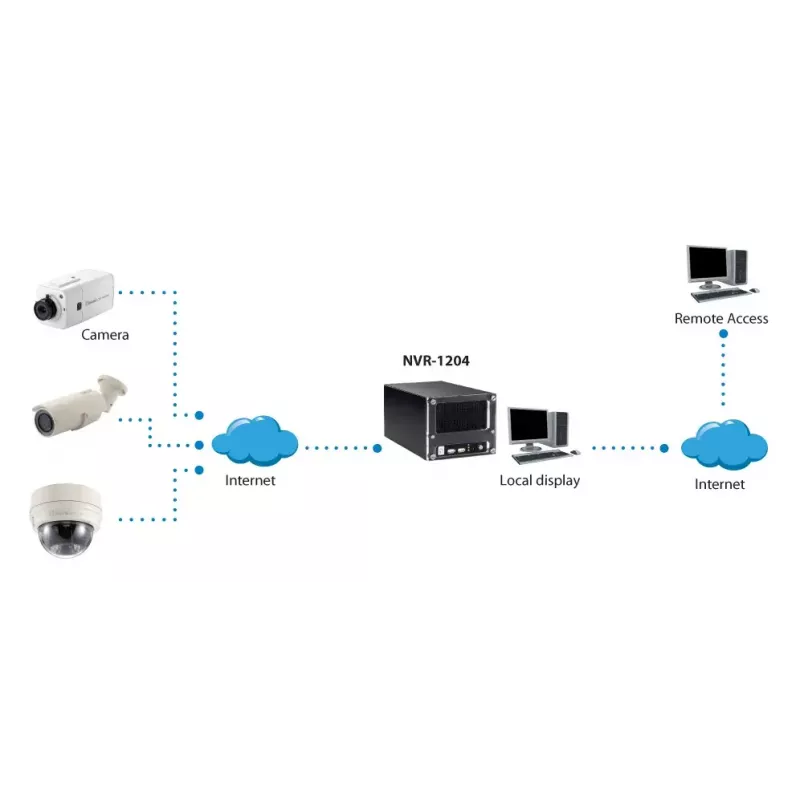

Install a Serial ATA hard drive up to 8 TB into the drive bay following the manufacturer's instructions and secure it in place. Connect the NVR-1204 to the network using an Ethernet cable to one of the RJ-45 ports and power the unit. Use a web browser (Microsoft Internet Explorer 9/10/11) or the compatible Android/iOS mobile app to access the device for initial configuration, camera registration, recording schedule setup and user account management. Create up to three simultaneous user accounts according to required access levels for live view and playback. Configure audio settings for cameras that support G.711 or PCM if two-way or recorded audio is needed.

Recommendations

For reliable long-term recording, use a surveillance-grade Serial ATA HDD rated for continuous operation and regularly verify that firmware and mobile apps are up to date. Place the NVR in a ventilated location and ensure network security by using strong passwords and restricting remote access through firewall or VPN where appropriate.
