LICATEC kaapelikanava L 25 x K 75 mm DIN 7640-1

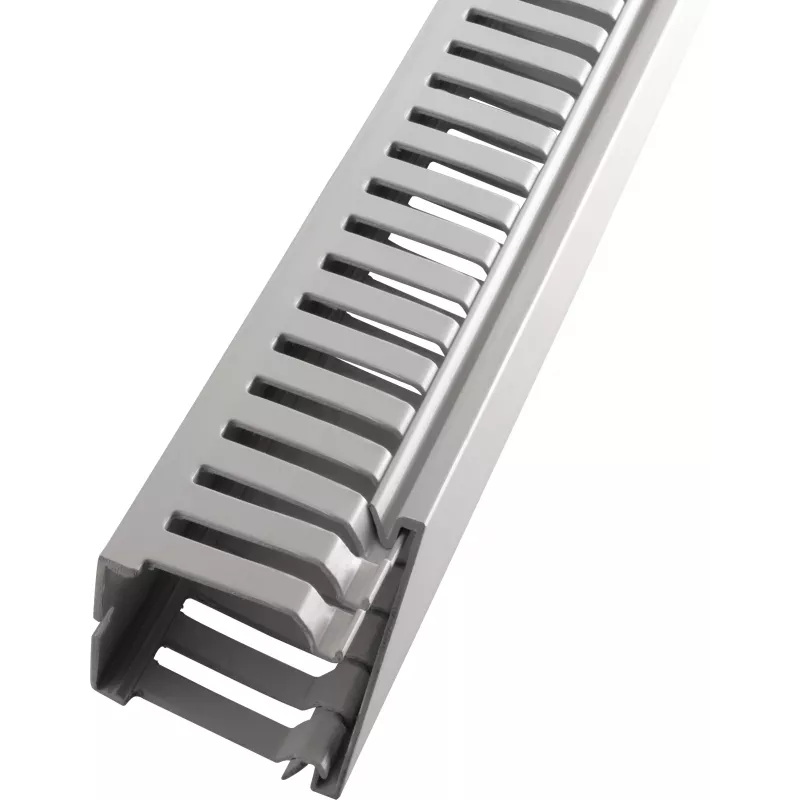

The LICATEC Wiring Duct B 25 x H 75 mm DIN 7640-1 is a high-quality cable trunking solution designed for professional cable management in electrical enclosures, control cabinets, and industrial installations. Manufactured from hard PVC (Polyvinyl Chloride) in standard grey (RAL 7035), this wiring duct offers excellent mechanical strength and durability. It complies with DIN EN 50085-2-3 and RoHS standards, ensuring reliable performance and safety.

Advantages

This wiring duct provides a tidy and organized cable routing system, protecting cables from damage and simplifying maintenance. Its open slot design allows easy insertion and removal of cables, while the pre-punched base holes facilitate quick mounting. The material is self-extinguishing (UL94 V-0) and resistant to oils, greases, and dilute acids, making it suitable for demanding industrial environments.

Suitable for

• Cable management in electrical enclosures and control cabinets
• Industrial installations requiring organized cable routing
• Protection and segregation of cables in panel building

Key specifications

• Product Type: Wiring Duct / Cable Trunking
• Material: Hard PVC (Polyvinyl Chloride)
• Colour: Grey (RAL 7035)
• Width: 25 mm
• Height: 75 mm
• Length: 2000 mm
• Slot Width: 5 mm
• Slot Spacing (Center-to-Center): 8.5 mm
• Temperature Range: -5°C to +60°C
• Flammability Rating: UL94 V-0 (Self-extinguishing)
• Halogen-Free: No
• Standard Compliance: DIN EN 50085-2-3, RoHS, DIN 7640-1

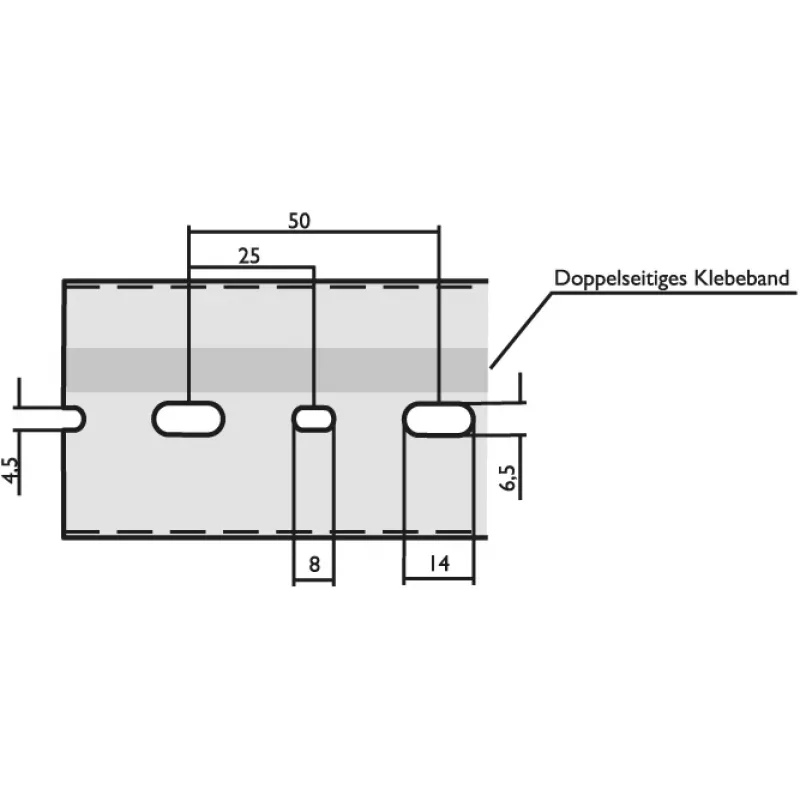

• Mounting Type: Pre-punched base holes
• Cover Included: Yes
• Slot Type: Open Slot
• Dielectric Strength: Approx. 30 kV/mm
• Impact Resistance: Good
• UV Resistance: Limited (Indoor use recommended)

Recommendations

For optimal cable management, ensure the duct is securely mounted using appropriate fasteners. Use the included cover to protect cables from dust and mechanical damage. This product is designed for indoor use; avoid prolonged exposure to direct sunlight.
