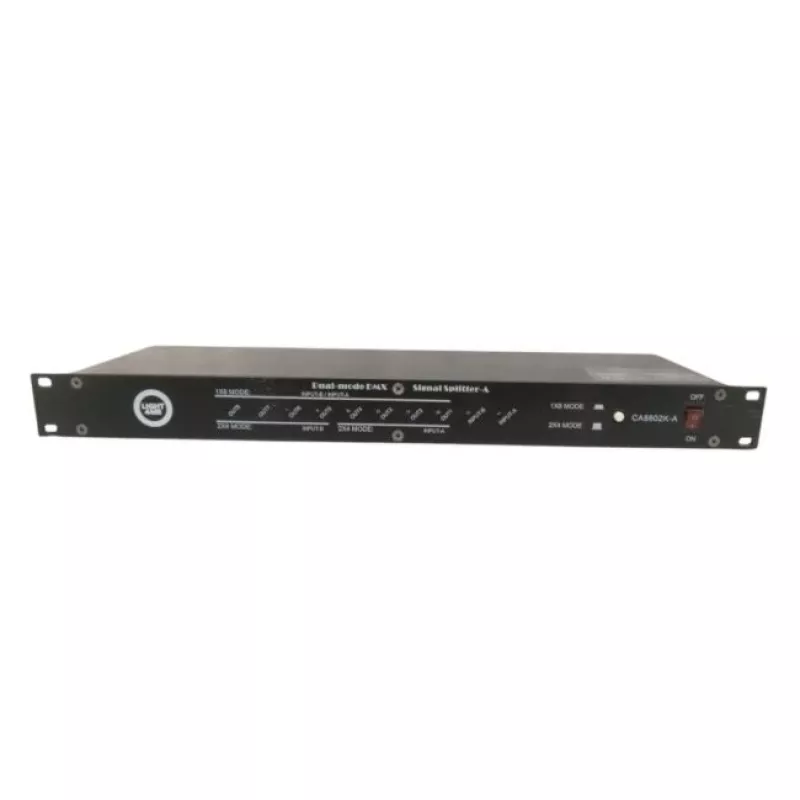

LIGHT4ME XSPLIT 2x4 DMX-jakaja

The LIGHT4ME XSPLIT 2x4 DMX Splitter is a professional-grade signal distribution unit designed for reliable DMX512-A data splitting in lighting installations. It features two independent inputs, each with four optically isolated outputs, ensuring signal integrity and preventing ground loops. Housed in a rugged 1U steel chassis, this splitter is ideal for stage, studio, and architectural lighting systems.

Advantages

Optical isolation between inputs, outputs, and power eliminates interference and protects connected equipment. Built-in signal amplification maintains DMX signal strength over long cable runs. Switchable termination on each input prevents signal reflections. Compact 1U rack-mountable design saves space in equipment racks.

Suitable for

• Professional lighting setups requiring multiple DMX splits
• Stage and theater productions
• Architectural lighting control systems
• Installations where signal integrity is critical

Key specifications

• DMX Standard: DMX512-A
• Number of DMX Inputs: 2
• Number of DMX Outputs: 8 (2 independent inputs, each with 4 isolated outputs)
• Input Connector Type: XLR 3-pin, XLR 5-pin
• Output Connector Type: XLR 3-pin, XLR 5-pin
• Isolation: Optical isolation (between inputs, outputs, and power)
• Signal Amplification: Yes (built-in signal booster)
• Mounting Type: 1U Rack-mountable
• Power Supply: AC 230V, 50Hz
• Power Consumption: 10W
• Indicators: Power LED, DMX Signal LEDs (for each input/output)
• Housing Material: Steel
• Input Impedance: 120 Ohm
• Output Impedance: 120 Ohm
• Termination Switch: Yes (switchable for each input)
• Operating Temperature Range: 0°C to 40°C
• Color: Black

Recommendations

For optimal performance, use high-quality DMX cables and ensure proper termination. This splitter is a reliable choice for expanding DMX networks without signal degradation.
