Liitäntäkortti DeLOCK 63952 sisäinen M.2 PCIe

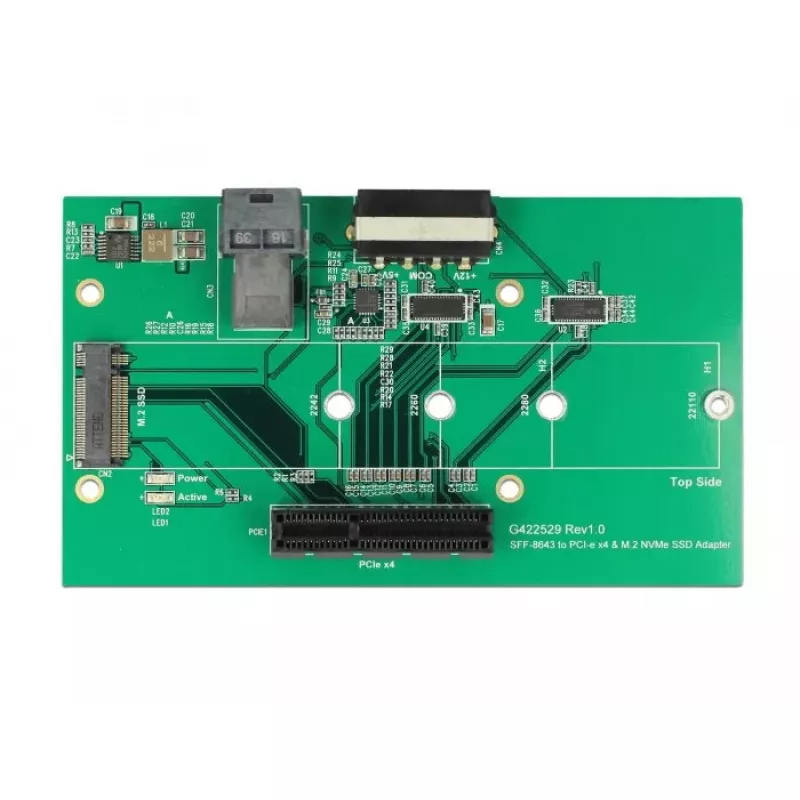

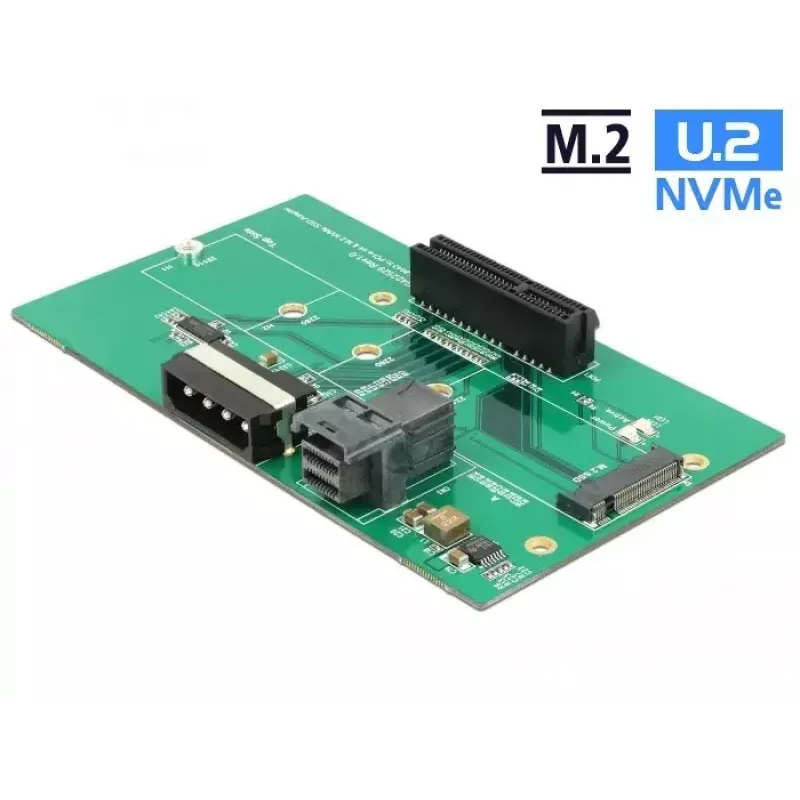

This adapter by Delock connects to the system via a U.2 host interface and provides an internal PCIe x4 NVMe connection or an M.2 Key M slot for installing NVMe cards or M.2 SSDs. The compact internal card (122 × 70 × 18 mm) supports an output current of 4 A and is designed to extend system storage and high-speed NVMe connectivity.

Advantages

The DeLOCK 63952 offers a U.2 host interface with an M.2/PCIe output, enabling NVMe signal transmission to M.2 Key M modules or compatible PCIe cards. Its compact form factor and internal design make it suitable for installation in systems where space is limited. The card is internally mounted and provides straightforward connectivity for expanding NVMe storage without additional external enclosures.

Suitable for

• Installing M.2 Key M NVMe SSDs
• Connecting PCIe x4 NVMe add-on cards via U.2
• Upgrading internal storage in small form factor or standard desktop systems

Key specifications

• Brand: DELOCK
• Model / MPN: 63952
• Host interface: U.2
• Output interface: M.2 (Key M), PCIe x4 NVMe
• Form factor: internal card
• Dimensions: 122 × 70 × 18 mm
• Output current: 4 A
• Colour: Green
• EAN: 4043619639526

How to use

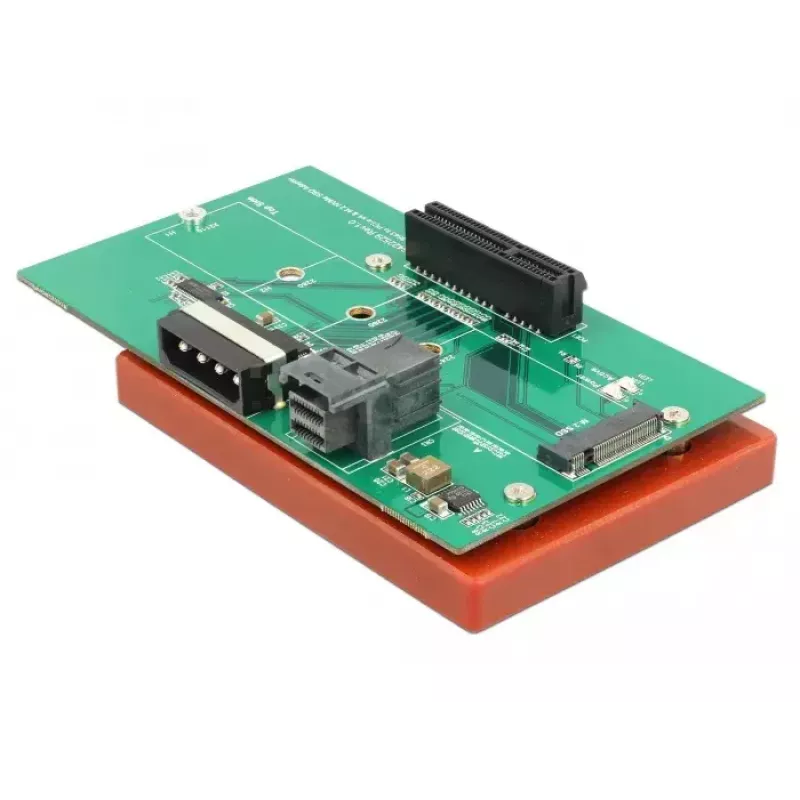

Install the DeLOCK 63952 into the appropriate internal mounting location in your chassis and connect the host cable to a U.2 port on your system. Insert a compatible M.2 Key M SSD or a PCIe NVMe card into the provided M.2/PCIe slot, secure it according to your system’s mounting procedure, and power the system. The operating system should detect the NVMe device; install drivers if required by your platform.

Recommendations

Use compatible M.2 Key M NVMe modules rated for PCIe x4 operation and ensure proper cooling in confined cases. Verify that your system exposes a U.2 interface and that the motherboard or host controller supports NVMe over U.2 before installation.
