Liitäntäkortti EXSYS EX-12007 sisäinen USB 3.2 Gen 2

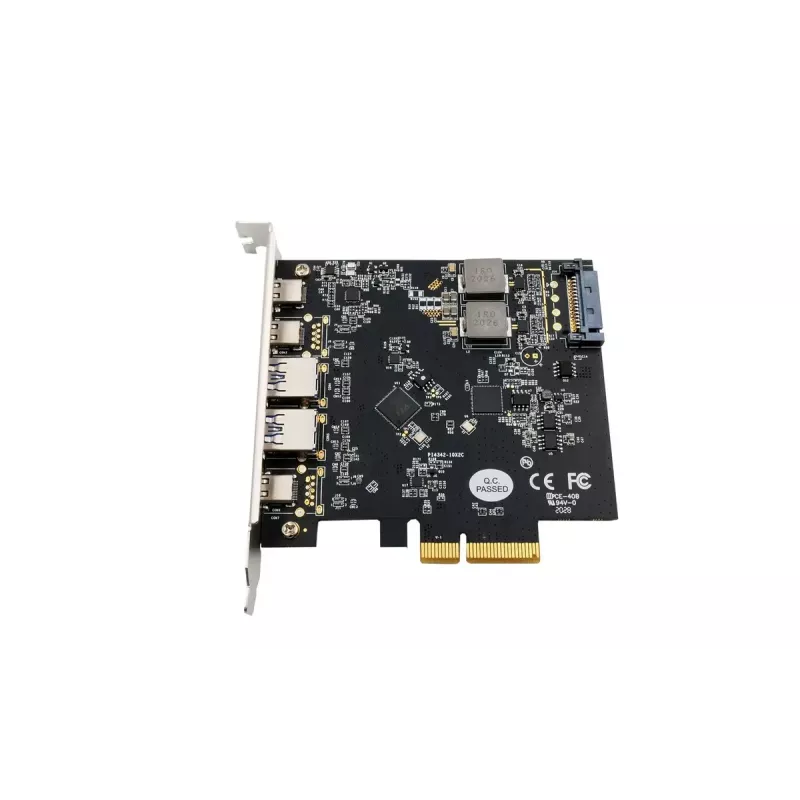

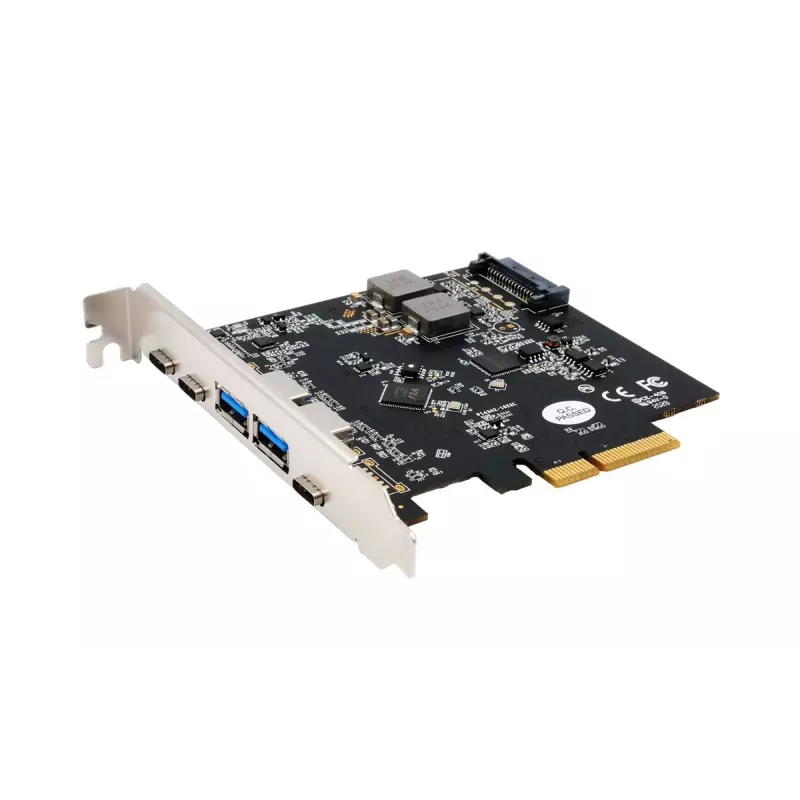

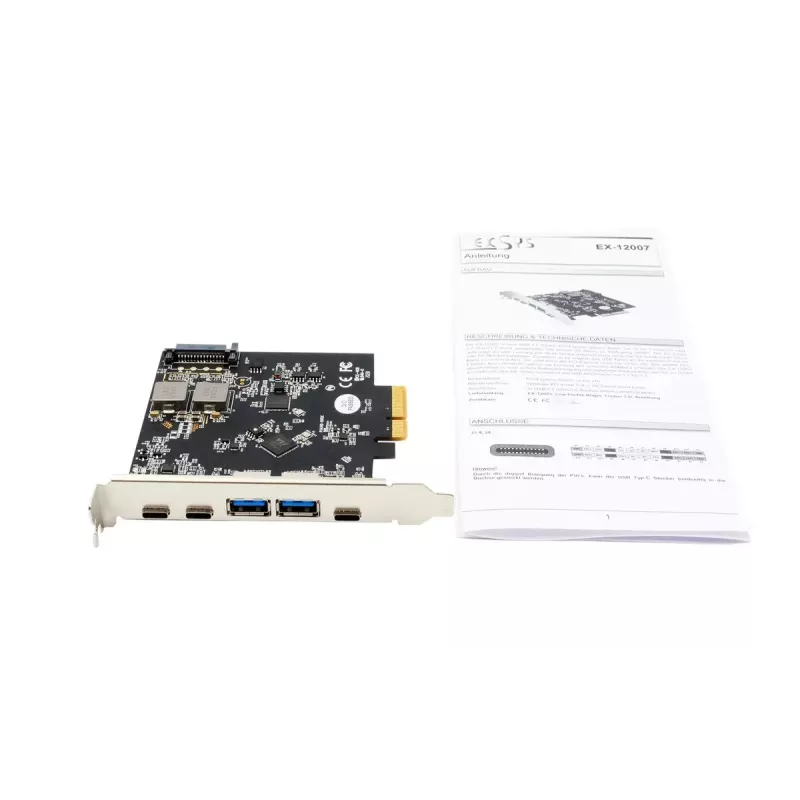

The EXSYS EX-12007 Internal USB 3.2 Gen 2 interface card installs into a PCIe slot (Gen3x4) and provides five external SuperSpeed+ USB 3.2 Gen2 ports — two Type-A and three Type-C. It enables connecting additional USB 1.1, 2.0, 3.0 and 3.2 Gen2 devices to a workstation, desktop or server and supports transfer modes from USB 1.1 Low-Speed (1.5 Mbps) up to USB 3.2 Gen2 SuperSpeed+ (10 Gbps).

Advantages

The card delivers up to 10 Gbps per supported port for fast external storage and high-bandwidth peripherals, while maintaining backward compatibility with older USB standards. Its mix of Type-A and Type-C sockets provides flexibility for a variety of devices, and the PCIe Gen3x4 interface ensures stable, low-latency connectivity. The Type-C ports support up to 3.0 A current for powering compatible devices.

Suitable for

• Connecting external storage enclosures and SSDs
• High-resolution webcams and digital cameras
• Scanners and USB peripherals requiring higher bandwidth
• Workstations and servers needing additional external USB ports

Key specifications

• Interface: PCIe Gen3x4
• External ports: 5 × USB 3.2 Gen2 (2 × Type-A, 3 × Type-C)
• Supported speeds: 1.5 Mbps (USB 1.1 Low), 12 Mbps (USB 1.1 Full), 480 Mbps (USB 2.0), 5 Gbps (USB 3.0), 10 Gbps (USB 3.2 Gen2)
• Type-C port current: up to 3.0 A
• MPN: EX-12007
• EAN: 4718359120077

How to use

Power down your computer and install the EX-12007 into an available PCIe Gen3x4 slot following standard anti-static procedures. Secure the card to the chassis, connect any required internal power or data cables if specified by your system, then power on and install the appropriate drivers for your operating system if they are not detected automatically. Once installed, connect external devices to the Type-A or Type-C ports; the card will negotiate the highest common USB mode supported by each device.

Recommendations

For optimal performance, connect high-bandwidth devices (such as external NVMe enclosures or high-resolution capture devices) directly to the USB 3.2 Gen2 Type-C ports and ensure your host system provides sufficient PCIe lanes. Use quality cables rated for SuperSpeed+ to maintain 10 Gbps throughput and enable device power where required.
