Liitäntärasia Ernitec 0070-11815 valkoinen 14,2 cm halkaisija

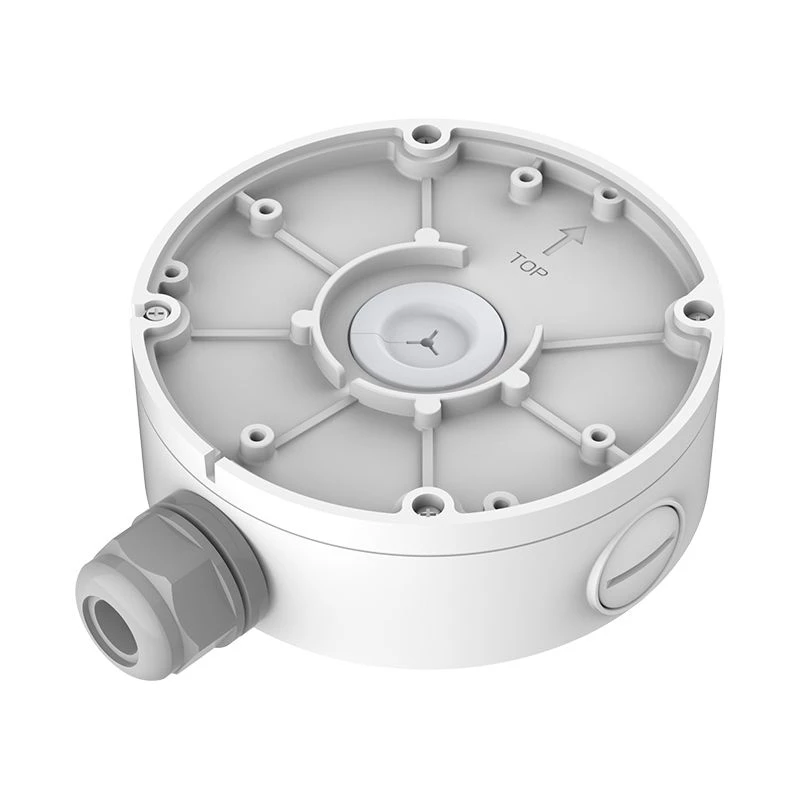

Ernitec 0070-11815 junction box in white provides a compact mounting solution for surveillance cameras. Constructed from aluminum alloy and plastic, the unit has an external diameter of 141.8 mm and a depth of 51 mm, with a load-bearing capacity of up to 3 kg. The junction box is intended for fixed installations where a neat, weather-resistant connection and cable routing are required.

Advantages

The junction box combines aluminum alloy and plastic for a balance of durability and weight. Its 141.8 mm diameter and shallow 51 mm depth allow discreet installation under domes or camera housings. A rated load capacity of 3 kg supports a wide range of compact surveillance cameras. The white finish matches typical security hardware and helps the box blend into light-coloured façades.

Suitable for

• Indoor and sheltered outdoor camera mounting
• Surface cable routing and junctions for CCTV cameras
• Mounting compact dome and bullet cameras within the stated load limit

Key specifications

• Material: Aluminum alloy + Plastic
• Color: White
• Operating humidity: 0%–90% RH
• Load bearing: 3 kg (6.61 lb)
• Dimensions: Ø141.8 × 51 mm
• Product weight (manufacturer data): 0.58 kg
• Brand / MPN / EAN: ERNITEC / 0070-11815 / 5715063138212

How to use

Mount the junction box to a stable surface using appropriate screws and anchors for the substrate. Route camera cables through the provided openings and make electrical and signal connections inside the box. Secure the camera or camera mount on top of the box, ensuring the total weight does not exceed the 3 kg rating. Close the cover to protect connections from dust and light moisture when used in sheltered locations.

Recommendations

For outdoor installations exposed to direct weather, use additional weatherproof housings or sealants and verify compatibility with the specific camera model and mounting accessories to ensure safe load distribution and environmental protection.
