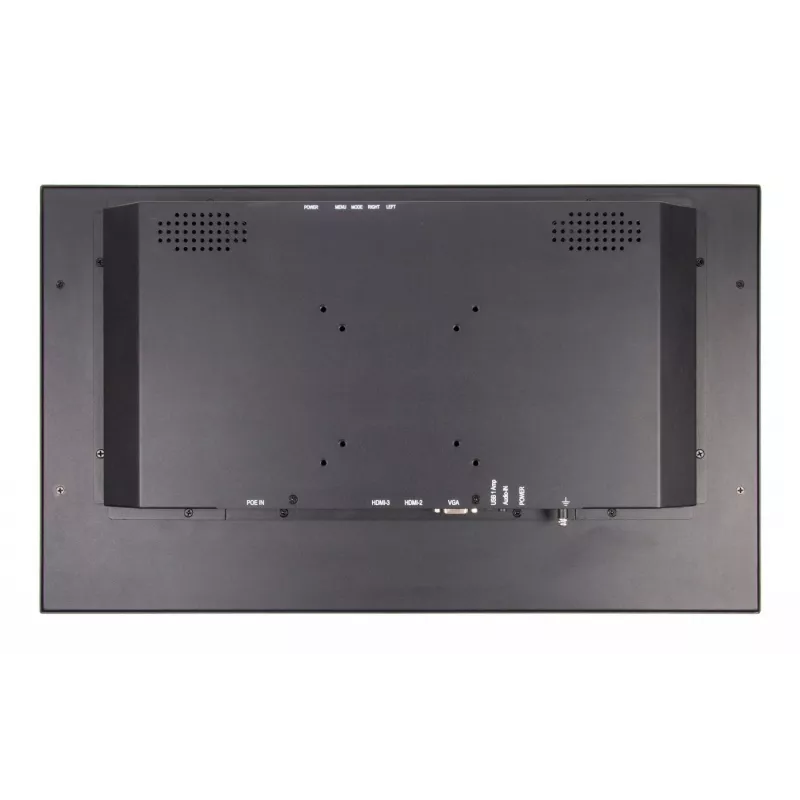

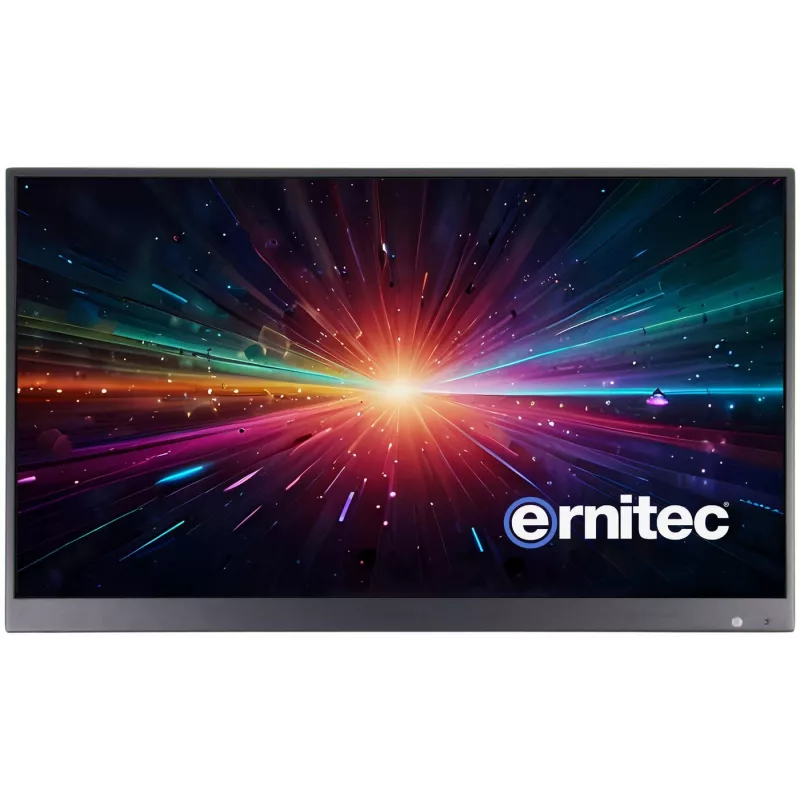

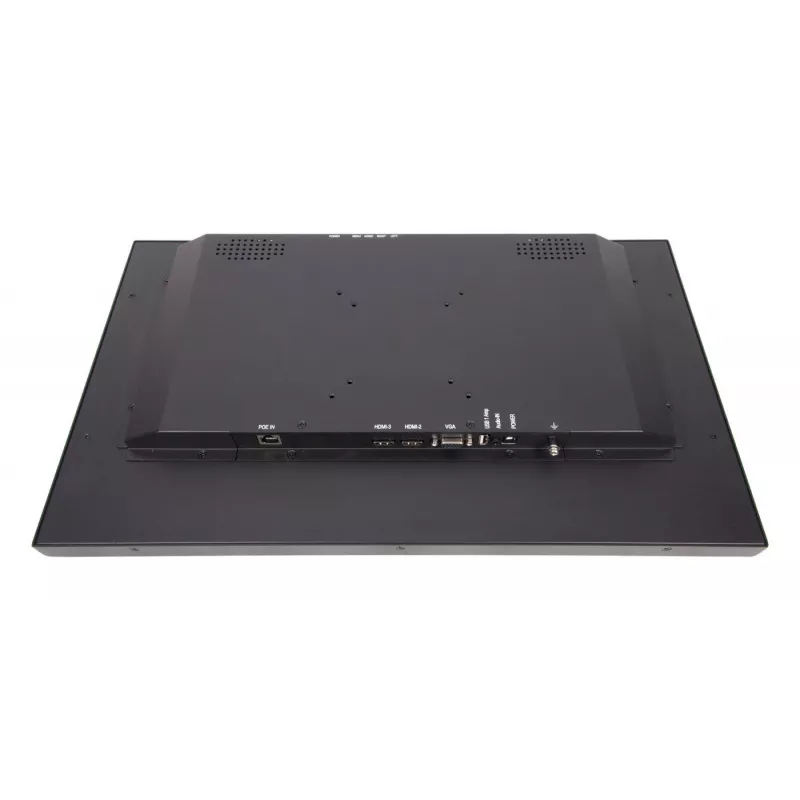

Näyttö ERNITEC 0070-24124-HDMIPOE — malli 0070-24124-HDMIPOE

ERNITEC 0070-24124-HDMIPOE is a SmartView Series CCTV monitor with an integrated HDMI-over-IP receiver and PoE compatibility, designed for simplified surveillance and professional display use. The monitor supports transmission of HDMI video and power over a single CAT5e/6 cable when paired with the included HDMI-over-IP transmitter box, enabling streamlined installations in control rooms, retail environments, industrial stations and other security-critical locations.

Advantages

The built-in HDMI-over-IP receiver removes the need for an external receiver, reducing cable clutter and installation points. Full HD (1080p) resolution provides clear, detailed video suitable for monitoring tasks. The single-cable design transmits both video and power up to 100 meters over standard Ethernet cabling and is compatible with PoE injectors or switches for centralized power delivery. Plug & play setup accelerates deployment in new or existing surveillance systems.

Suitable for

• Security control rooms and command centers
• Retail and commercial surveillance
• Industrial monitoring stations
• Remote viewing hubs and centralized AV installations

Key specifications

• Model: 0070-24124-HDMIPOE (ERNITEC SmartView Series)
• Display resolution: Full HD 1080p
• Connectivity: Built-in HDMI-over-IP receiver; pairs with included HDMI-over-IP transmitter box
• Cable type: CAT5e/6 for video and power over a single cable
• Maximum transmission distance: up to 100 meters over standard Ethernet cabling
• Power: PoE ready — compatible with PoE injectors or switches
• Included accessories: HDMI-over-IP transmitter box, PoE injector, quick start guide

How to use

Connect the included HDMI-over-IP transmitter box to your HDMI source and link it to the ERNITEC monitor using a single CAT5e/6 cable. If using PoE, connect the CAT cable through a PoE injector or PoE-capable switch to supply power and video simultaneously. Power on the monitor and source; the integrated receiver establishes the HDMI-over-IP connection automatically for immediate use. Adjust display settings via the monitor controls as needed for optimal image quality.

Recommendations

For reliable performance, use quality CAT5e or CAT6 cabling and ensure network components (PoE injectors or switches) meet required power and transmission specifications. Maintain HDMI source resolution at 1080p for best compatibility with the monitor’s Full HD display.
