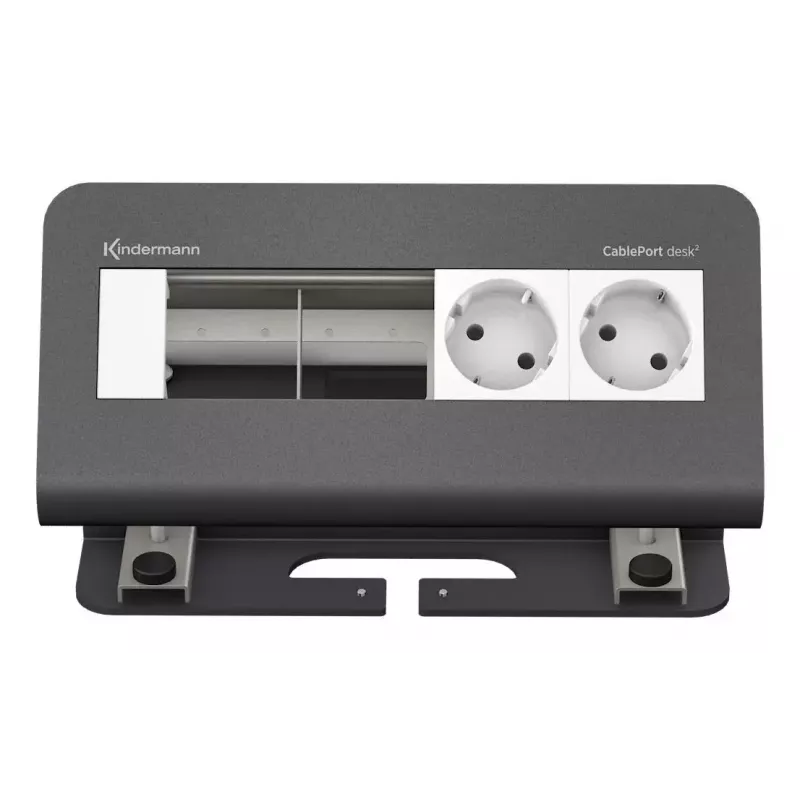

Liitäntärasia tyyppi F Kindermann 7430000072

The Kindermann 7430000072 outlet box is a desktop-mounted connection unit designed for neat integration into workstations. The compact casing (241 × 124 × 101 mm) has a powder-coated RAL 7015 slate grey finish and provides space for modular connectivity: two fixed mains outlets and room for four half or two full Konnect flex 45 click adapter plates. A 1 m GST18 power cable is included.

Advantages

Easy click mounting for Konnect flex 45 adapter plates ensures fast and secure installation. The box has a plain, flush surface for a discreet appearance and includes concealed clamps for stable, anti-slip fixing on desktops 10–60 mm thick. It is compatible with Neets media controls, USB rechargers and EnOcean modules, allowing flexible configuration for different setups.

Suitable for

Key specifications

How to use

Place the outlet box on the edge of the desktop and secure it using the concealed clamps adjusted to the desk thickness (10–60 mm). Insert the required Konnect flex 45 click adapter plates by snapping them into the half- or full-size cutouts. Connect the GST18 power cable to a mains supply. Integrate compatible modules such as Neets controls, USB recharger or EnOcean where needed to complete the configuration.

Recommendations

For safe operation, ensure the desktop edge and clamp surfaces are clean and undamaged before mounting. Do not exceed the recommended desk thickness range. Install adapter plates and electrical connections only with the power disconnected and follow local electrical codes.
