Lindy 4-porttinen HDMI 8K60 -vaihtokytkin eARC HDMI USB A USB C

The Lindy 4 Port HDMI® 8K Switch with eARC is a professional solution for providing simple yet reliable switching control over 4 HDMI® source devices connected to a single HDMI® display, while also expanding a displays HDMI® port connections. Supporting HDMI® 2.1 48G signals, this switch allows for the transmission of detailed 8K resolutions, while additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for a premium home cinema experience, eye-catching digital signage in retail settings or engaging presentations. HDCP 2.3 support ensures there are no issues with a variety of 8K content when connected to source devices including set top boxes, Blu-Ray players and 8K HDR media players.

As well as HDMI® audio pass-through, the switches 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, great for ensuring a multi-channel audio experience to provide a heightened sense of realism for the viewer.

The Switch also supports eARC (Enhanced Audio Return Channel), enabling high-quality audio formats like Dolby Atmos and DTS:X to be transmitted directly to compatible audio devices. This simplifies setups by using the HDMI® cable for audio, reducing extra cables and enhancing the immersive audio experience, perfect for high-end home theater systems.

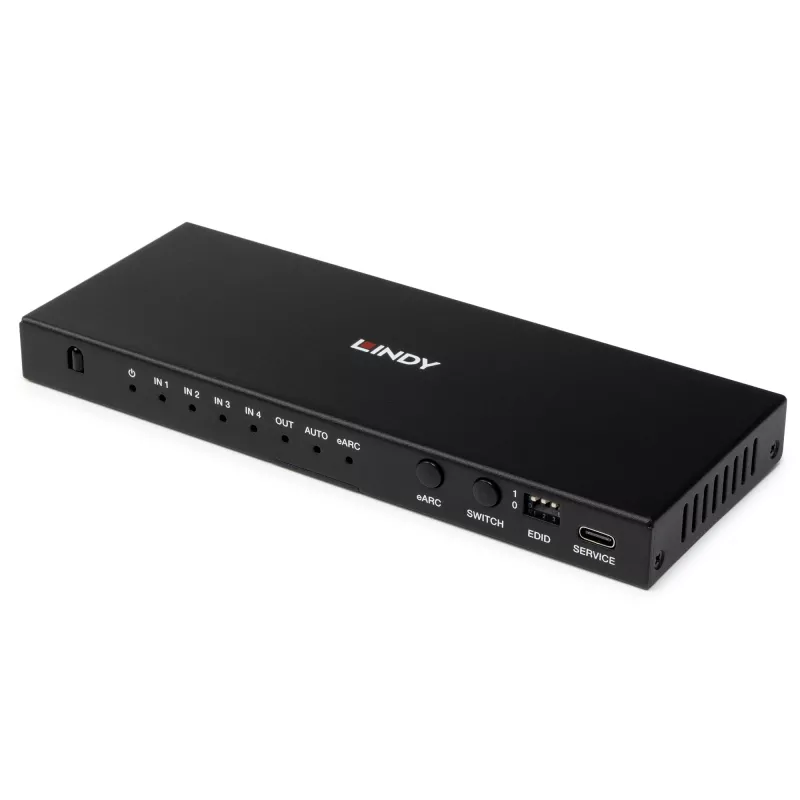

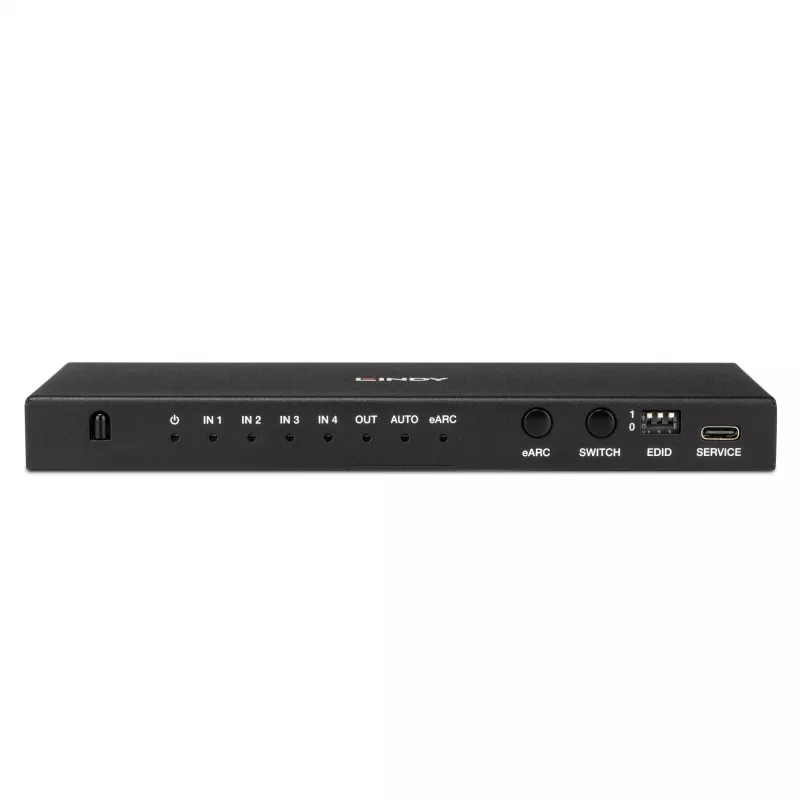

This 4 Port HDMI® switch also provides a huge range of seamless control options for the user, to ensure efficient, hassle free usage for both new, and experienced users. The switch itself can be controlled manually via push button switching, while it can also identify the active HDMI® source device and automatically switch to this option.

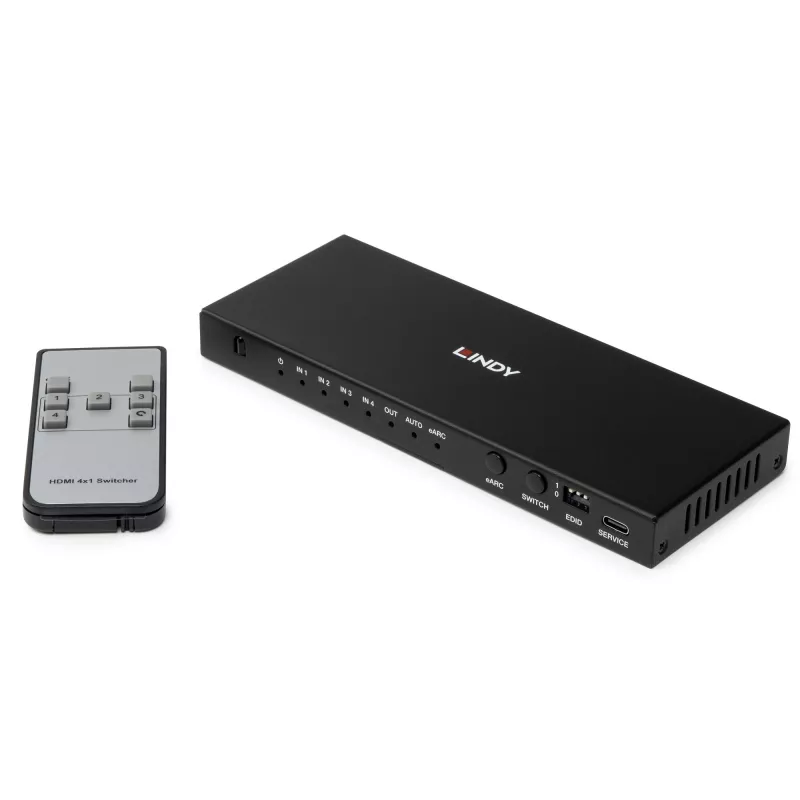

The included remote control allows the user to have convenient control over multiple videos and audio formats from a distance, great for trade show demonstrations or training presentations.

Lindy 4 Port HDMI 8K60 Switch with eARC. Video port type: HDMI, Console ports: HDMI, USB A, USB C. HD type: 8K Ultra HD, Maximum resolution: 7680 x 4320 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, LED indicators: Status. Power source: DC, Input voltage: 5 V, Output current: 1 A. Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS

How to use

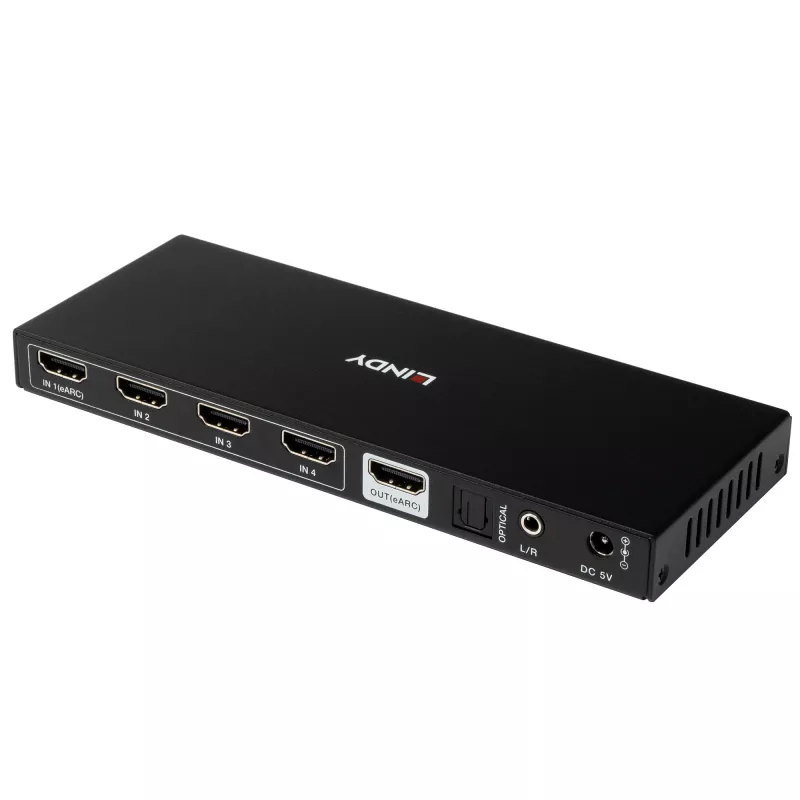

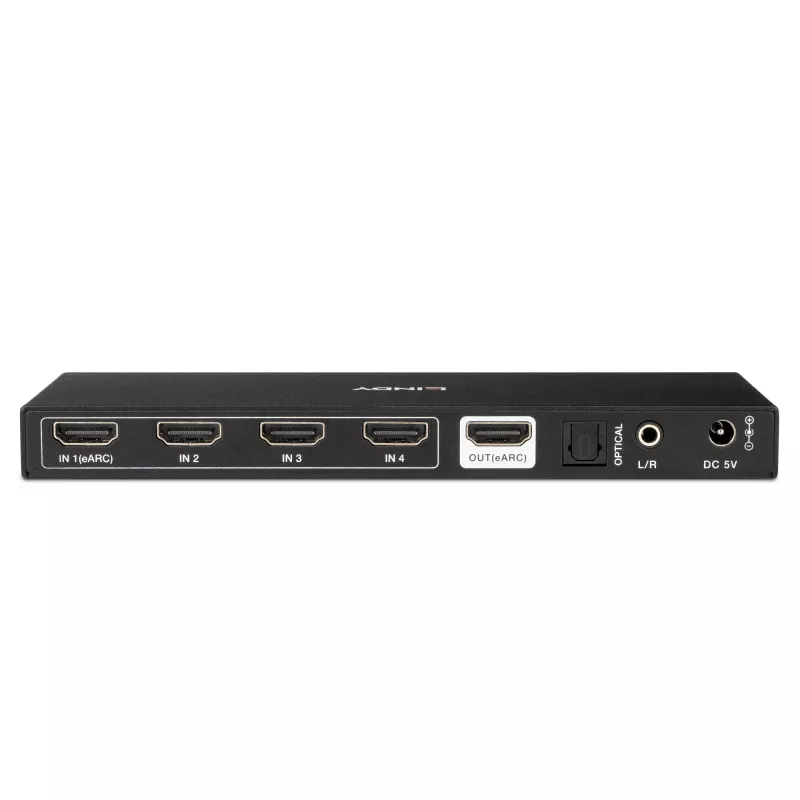

Connect up to four HDMI source devices to the HDMI inputs and connect the HDMI output to your display. If using external audio equipment, connect a soundbar or amplifier via the eARC-enabled HDMI output or the optical/3.5 mm audio ports. Power the unit with the supplied 5 V DC adapter. Use the front panel push button to cycle inputs, allow automatic source detection to switch to the active device, or operate the unit with the included IR remote control from a distance.

Recommendations

For best results use certified HDMI 2.1 cables rated for 48G bandwidth, and ensure source and sink devices support the desired 8K and HDR formats. Place the unit in a ventilated location and avoid running power and HDMI cables in parallel with high-power electrical wiring to reduce interference.
