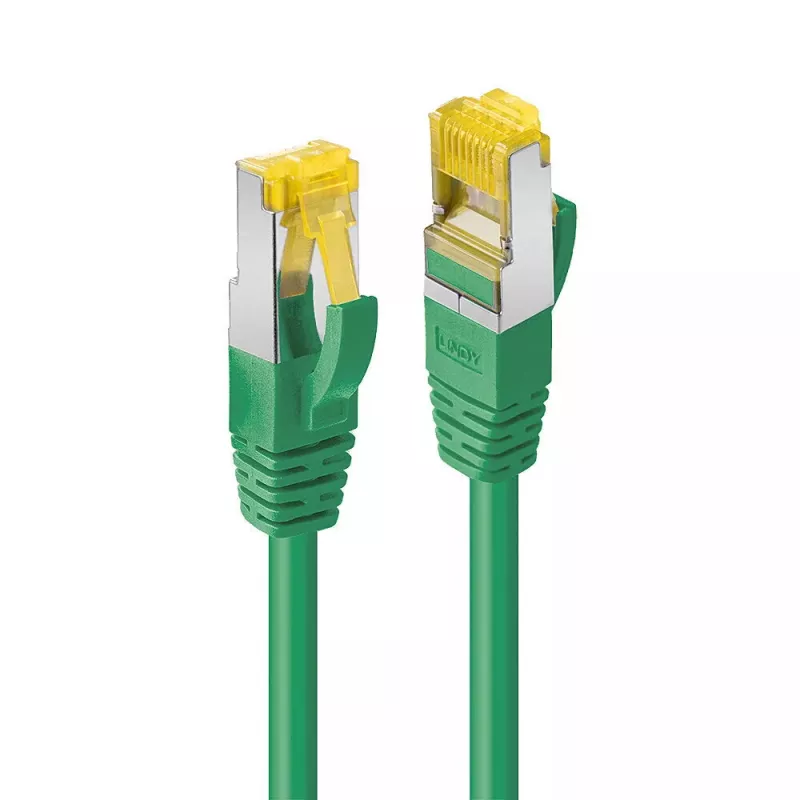

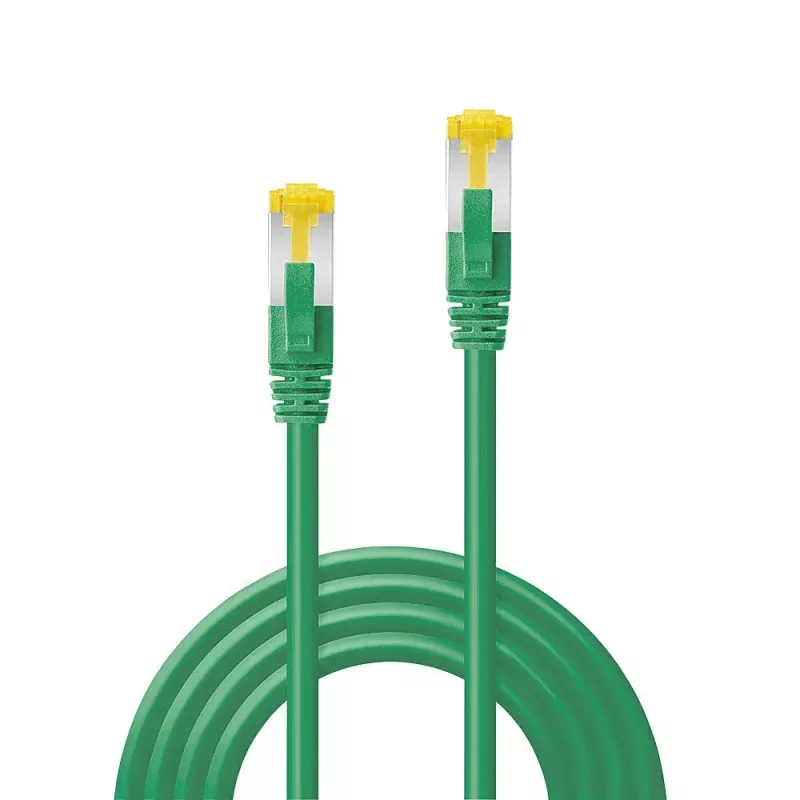

Lindy 47648 verkkokaapeli vihreä 2 m Cat7 S/FTP (S-STP)

Cat.7 S/FTP network cable supporting bandwidths up to 600 MHz, designed for Ethernet standards up to 10GBase-T. The cable features total braided shielding with individual foil shielding per pair (S/FTP), gold-plated contacts and a snagless strain relief to protect the connector latch during installation and removal. The cable is supplied individually in a polybag and is intended for use in data centres, server rooms, racks and network or control cabinets. The cable jacket is printed with the marking: "Cat.6A S/FTP patch cords with 600MHz raw cable" because current RJ45 connectors meet Cat.7 performance though Cat.7 originally defined GG45 connectors.

Advantages

The S/FTP construction with braided overall shielding and foil shielding per pair provides high protection against electromagnetic interference and crosstalk, suitable for high-frequency operation up to 600 MHz. Gold-plated contacts offer corrosion-resistant, reliable connections over long periods. The snagless strain relief reduces the risk of latch damage during frequent installations and removals. Individual polybag packaging protects the cable until deployment.

Suitable for

• Data centres and server rooms
• Rack-mounted network and control cabinets
• High-speed Ethernet installations up to 10GBase-T
• Structured cabling requiring shielded Cat.7-class performance

Key specifications

• Category: Cat.7 (S/FTP)
• Shielding: Braided overall shield + foil per pair (S/FTP)
• Frequency support: up to 600 MHz
• Ethernet standard: up to 10GBase-T
• Connectors: RJ45 with gold-plated contacts
• Design: Snagless strain relief
• Packaging: Individual polybag
• Available lengths: 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m, 7.5 m, 10 m, 15 m, 20 m, 30 m
• Available colours: Black, Blue, Grey, Red, White, Yellow, Green

How to use

Choose the required length and colour, align the RJ45 connector with the port and insert firmly until the latch clicks. When routing the cable in racks or cabinets, avoid sharp bends and maintain the cable bend radius recommended for twisted-pair cabling. For shielded installations, ensure proper grounding of the shield at appropriate points in the network to maintain shielding effectiveness. Remove and reconnect the cable as needed using the snagless strain relief to protect the latch.

Recommendations

For installations requiring maximal immunity to interference, use this S/FTP Cat.7 cable in combination with shielded connectors and properly grounded racks and panels. Select the cable length that minimises excess slack to reduce potential signal degradation.
