Lindy 50 m kuitu-hybridi-micro-HDMI-kaapeli 18G irrotettavilla HDMI- ja DVI-liittimillä

The Lindy 50m Fibre Optic Hybrid Micro-HDMI Cable (model 38324) is a thin hybrid cable combining fibre optic and copper conductors to extend Micro-HDMI, HDMI and DVI signals up to 50 metres without additional adapters. It is supplied with a narrow metal Micro-HDMI connector for easy installation through conduits and tight spaces, and detachable HDMI and DVI connectors can be attached at either end to connect to a wide range of displays and devices. The cable supports the HDMI 2.0 18G specification for high-quality video and multi-channel audio transmission.

Advantages

The hybrid construction delivers the EMI/RFI resistance and long-distance capability of fibre optic cable together with the versatility of copper for power and signal handoff. The thin Micro-HDMI conductor and premium metal connector allow installation through small conduits without damaging the internal cable structure. Detachable HDMI and DVI connectors provide flexible connectivity options (HDMI-to-HDMI, HDMI-to-DVI, DVI-to-DVI) while gold-plated contacts improve durability and signal reliability. Supports 4K@60Hz, HDR and multi-channel audio including Dolby TrueHD and Dolby Atmos when used with compatible devices.

Suitable for

• Professional AV installations and rental events requiring long cable runs
• Digital signage and retail displays with concealed cabling
• Home theatre and premium residential setups using Micro-HDMI devices
• Connections between cameras, tablets or other devices with Micro-HDMI and screens, projectors or DVI displays

Key specifications

• Length: 50 m

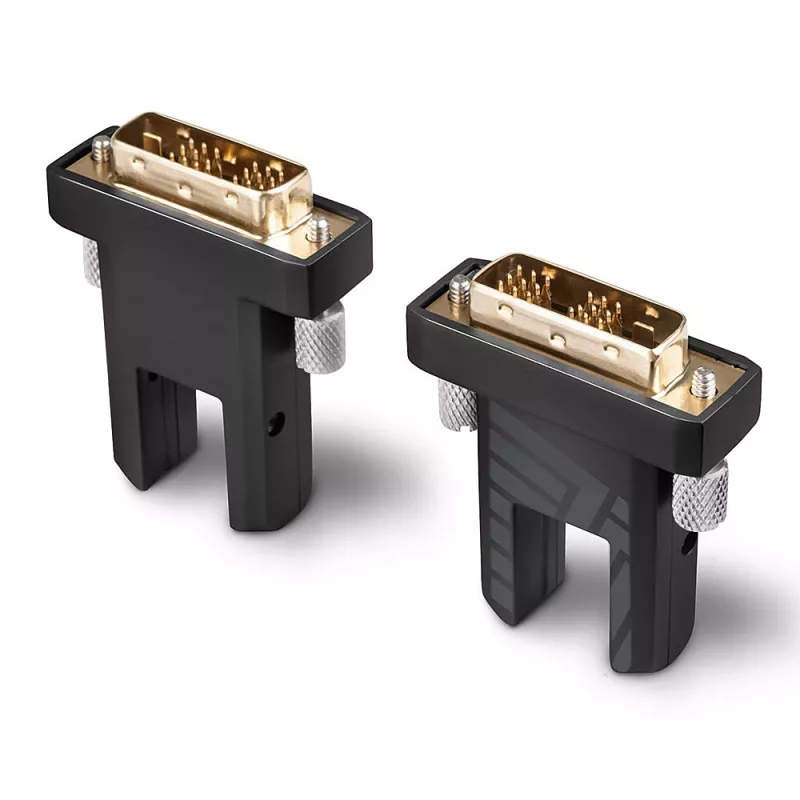

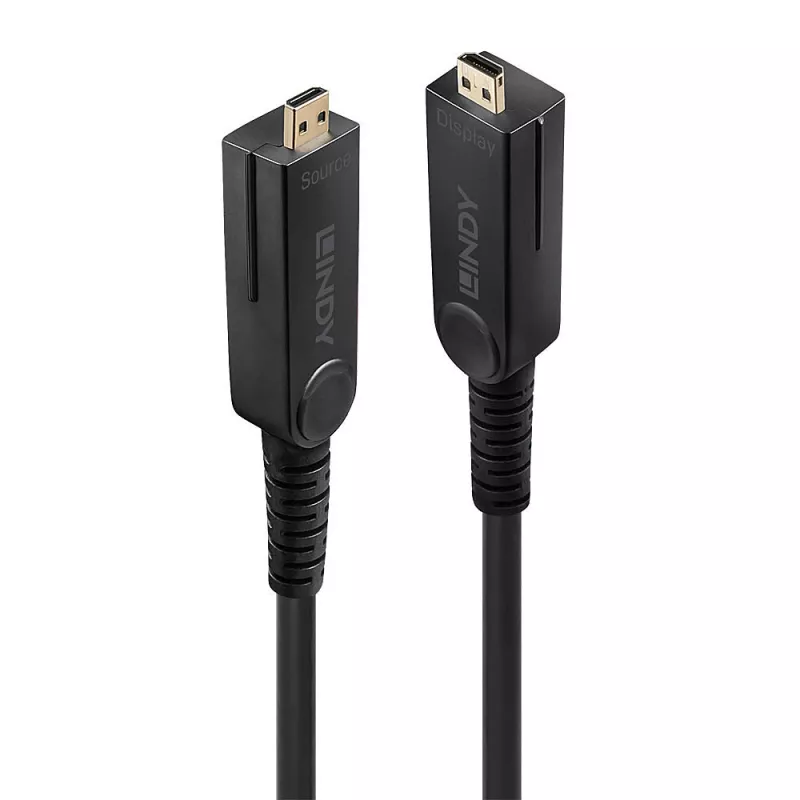

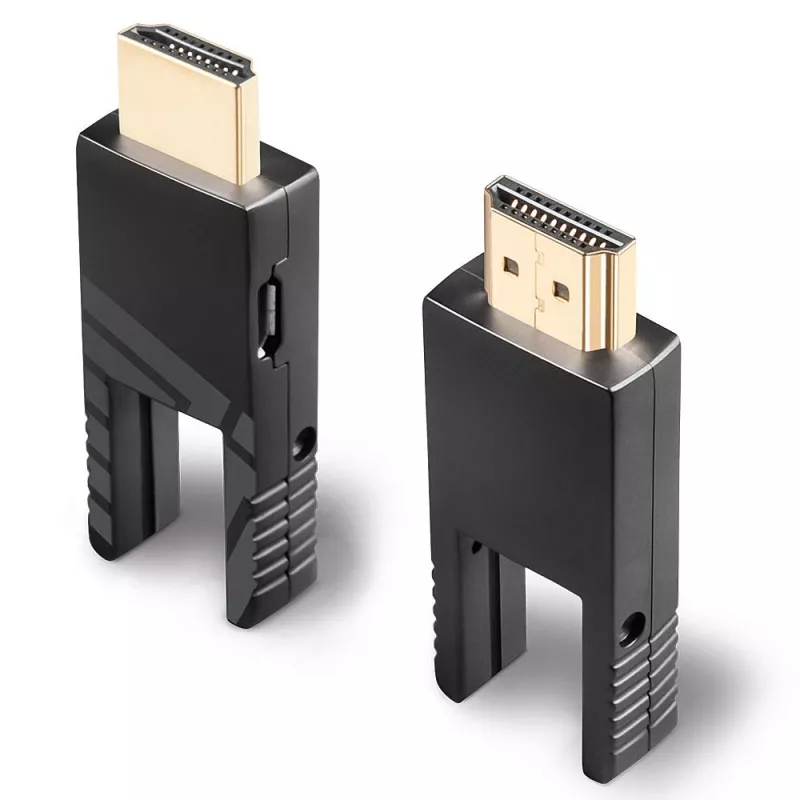

• Connector type: HDMI Type D (Micro) at both ends; detachable HDMI and DVI connectors included
• Standard: HDMI 2.0, 18 Gbit/s
• Supported video: up to 4K (3840×2160) at 60 Hz, HDR
• Audio: multi-channel audio support including Dolby TrueHD and Dolby Atmos
• Colour: Black
• MPN: 38324; EAN: 4002888383240

How to use

Feed the thin Micro-HDMI conductor through conduit or the intended cable route and pull the cable to the required length. Attach the detachable HDMI or DVI connector modules to each cable end as needed for the display or source device. Connect the Micro-HDMI end to the source device that has a Micro-HDMI port, and the installed HDMI or DVI connector to the display, projector or other receiving device. Ensure connectors are firmly seated and, if applicable, select the correct input on the display. Use compatible HDMI 2.0 devices to achieve full 4K@60Hz and HDR performance.

Recommendations

For optimal performance, avoid sharp bends and excessive tensile force during installation. Use the detachable connectors only after the cable is routed into place. Verify source and display support for HDMI 2.0 and HDR to benefit from full video and audio capabilities.
