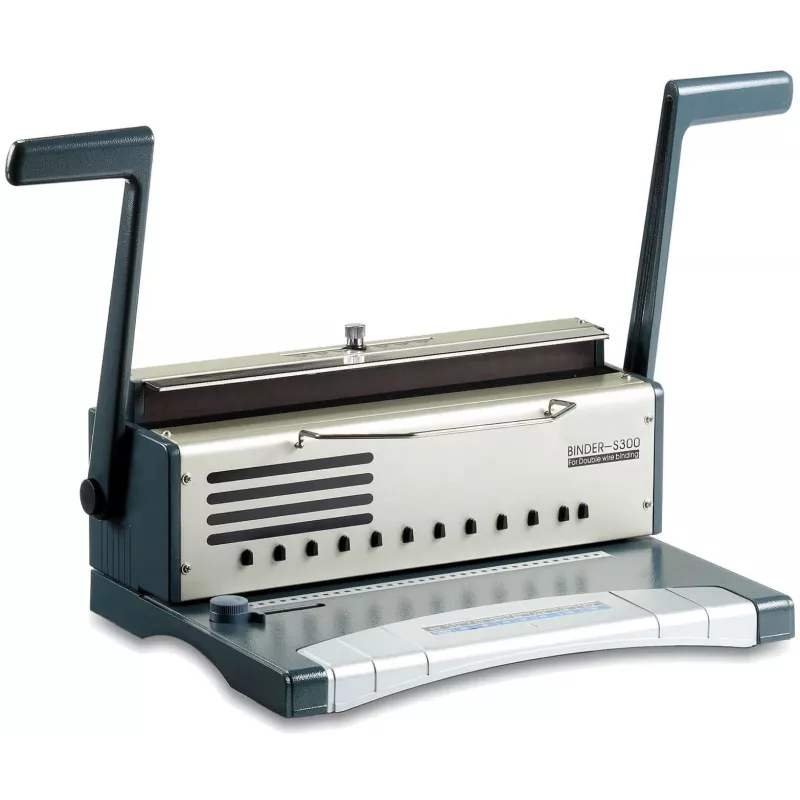

LMG S300 lankasidontakone

The LMG S300 is a manual wire binding machine with a 3:1 pitch, offering a binding capacity of up to 120 sheets. Its all-metal construction and disengageable punches provide durability and flexibility for professional document finishing.

Highlights

• Wire binding with 3:1 pitch (34 holes)
• Punches up to 12 sheets at once
• Binds up to 120 sheets (80 gsm)
• All 34 punches can be disengaged individually
• Adjustable margin depth for precise punching
• Integrated waste tray for clean operation

In daily use

The S300 is operated manually with a lever for both punching and binding. Documents are loaded vertically, and the square 4x4 mm punch holes accommodate wire sizes from 4.8 mm to 14.3 mm. The metal construction ensures stability during use.

Full specifications

• Binding type: Wire
• Punching pitch: 3:1
• Punching capacity: 12 sheets (80 gsm)
• Binding capacity: 120 sheets (80 gsm)
• Max binding width: A4 (297 mm)
• Number of punch holes: 34
• Punch hole shape: Square (4x4 mm)
• Punching method: Manual
• Disengageable punches: Yes (all 34)
• Adjustable margin depth: Yes
• Compatible wire sizes: 4.8 mm - 14.3 mm
• Construction material: Metal
• Document loading: Vertical
• Waste tray: Integrated
• Operation: Lever-operated

Final note

The LMG S300 delivers reliable wire binding for everyday office use, combining robust construction with user-friendly manual operation.
