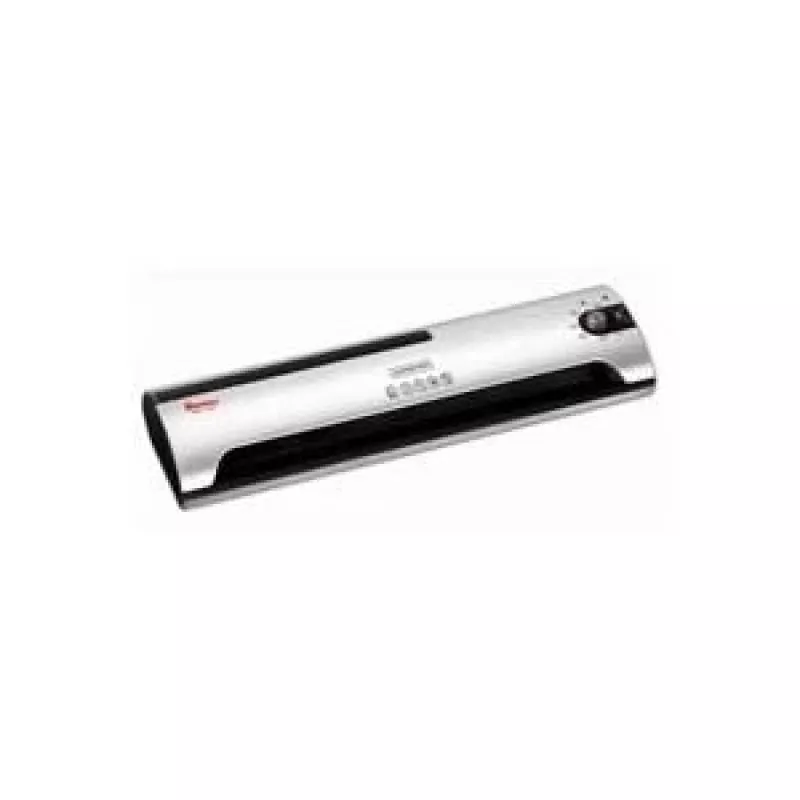

LMG Signal Technology Toplam 470 -laminaattori A2/A3/A4 kuuma- ja kylmälaminaattori 470 mm

The LMG Signal Technology Toplam 470 is a professional-grade laminating machine designed for high-volume use in offices, print shops, and schools. With a maximum laminating width of 470 mm, it accommodates A2, A3, and A4 documents. The machine features digital temperature control (0-140°C) and supports both hot and cold lamination. It can handle pouches up to 2 x 250 micron (total 500 micron) and documents up to 1.0 mm thick. The motorized reverse function and jam release ensure smooth operation. The metal housing and LCD display provide durability and ease of use.

Advantages

Fast warm-up (approx. 3-5 minutes) and variable speed up to 1500 mm/min increase productivity. The digital temperature control allows precise adjustment for different pouch thicknesses. The auto shut-off feature enhances safety and energy efficiency. Carrier-free lamination saves material and time.

Suitable for

• Professional offices and print shops
• Schools and educational institutions
• Laminating A2, A3, A4 documents, photos, and posters
• Hot and cold lamination applications

Key specifications

• Max. Laminating Width: 470 mm
• Max. Pouch Thickness: 2 x 250 micron (total 500 micron)
• Number of Rollers: 4 (heated)
• Laminating Speed: Up to 1500 mm/min (variable)
• Warm-up Time: Approx. 3-5 minutes
• Laminating Type: Hot and Cold
• Temperature Control: Digital, variable (0-140°C)
• Display Type: LCD Display
• Reverse Function: Yes (Motorized)
• Auto Shut-off: Yes
• Power Consumption: 1000 W
• Max. Document Thickness: 1.0 mm (including pouch)
• Housing Material: Metal
• Carrier-Free Lamination: Yes
• Jam Release: Yes (via reverse function)

Recommendations

For best results, use high-quality laminating pouches and ensure the machine is placed on a stable, flat surface. Allow the machine to cool down before cleaning. This laminator is ideal for frequent use and demanding tasks.
