Maadoitustarvike Triton RAX-ZL-X02-A1 metalli monivärinen

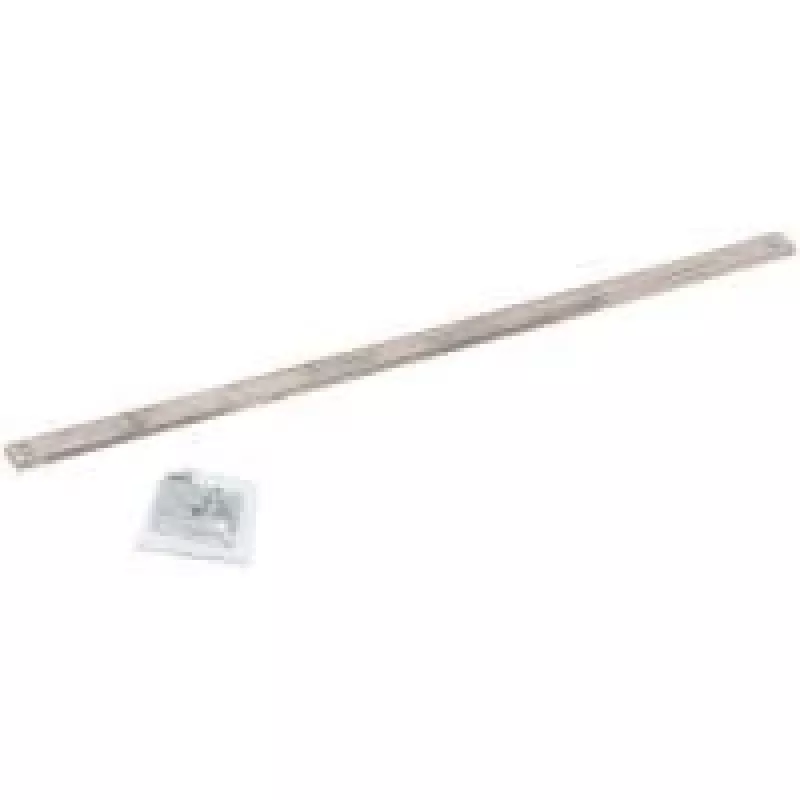

Universal earthing bar for 48.26 cm (19") installation, horizontal orientation, dimensions 500 x 20 x 5 mm. The Triton RAX-ZL-X02-A1 grounding hardware is made of durable metal with a multicolour finish and is intended to provide a reliable grounding connection in rack-mounted installations.

Advantages

The earthing bar offers a compact horizontal design compatible with 19" (48.26 cm) racks, robust metal construction for long-term use, and a standardized size (500 x 20 x 5 mm) that supports straightforward mounting and connection of grounding conductors. The multicolour finish aids visual identification without affecting electrical performance.

Suitable for

• Grounding 19" server and network racks
• Horizontal installation in telecommunication and data cabinets
• Industrial control panels requiring rack-mounted earthing

Key specifications

• Model: Triton RAX-ZL-X02-A1
• Type: Universal earthing bar, horizontal
• Designed for: 48.26 cm (19") installation
• Dimensions: 500 x 20 x 5 mm
• Material: Metal
• Finish: Multicolour
• MPN: RAX-ZL-X02-A1
• EAN: 8595105026472

How to use

Mount the earthing bar horizontally inside a 19" rack at the desired U position using appropriate rack screws or mounting hardware. Connect the bar to the building grounding system with a suitably rated grounding conductor. Attach equipment grounding wires to the bar ensuring secure mechanical and electrical contact; tighten terminals to the torque specified for the chosen connectors. Verify continuity and low resistance between the bar and the main earth connection after installation.

Recommendations

Use appropriately rated bolts and conductors for the prevailing electrical code; ensure all connections are clean and corrosion-free. Verify compatibility with your rack's mounting pattern and allow sufficient clearance for adjacent equipment. For safety, perform grounding tests after installation and periodically during maintenance.
