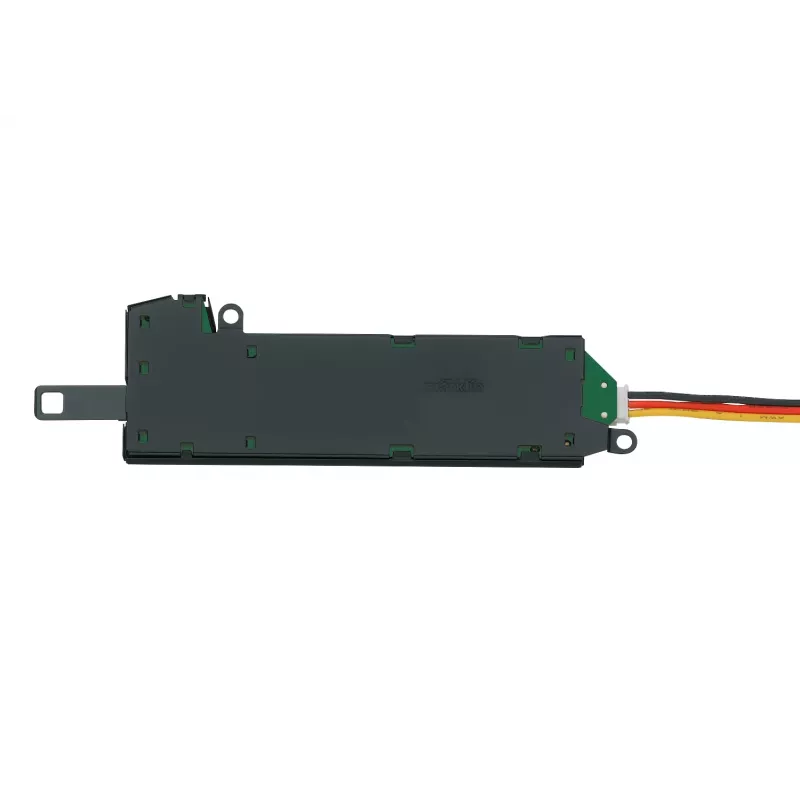

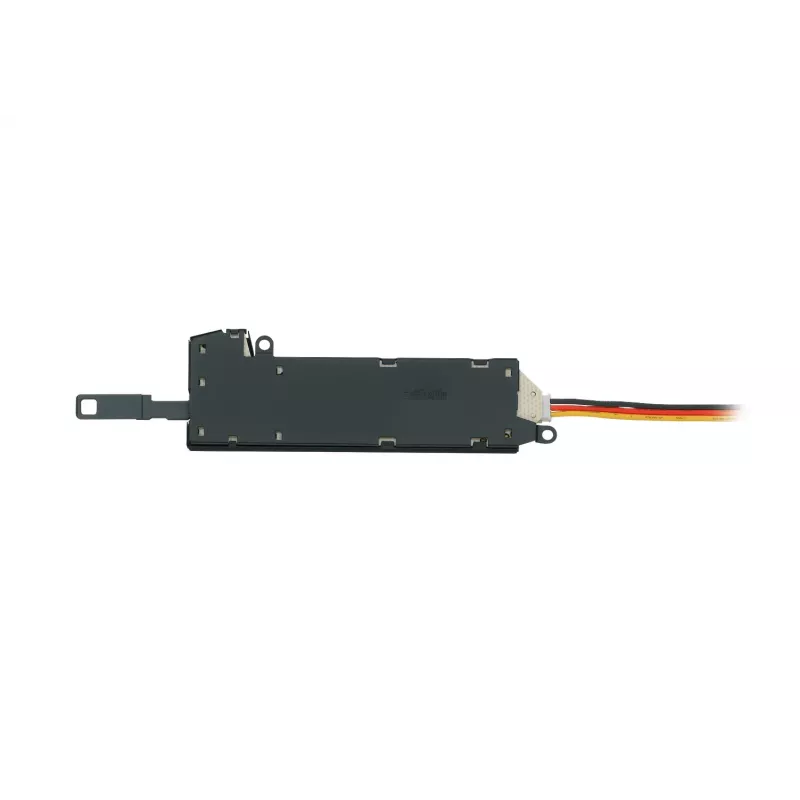

Märklin 74492 sähköinen vaihdekäyttö C-kiskovaihteille 074492

Model railway enthusiasts operating Märklin C-track layouts can remotely switch turnouts with this electric point drive. It mounts under the track and connects to compatible turnout models, allowing you to control routing from a control box or digital decoder.

Key specifications

• Product type: Electric point drive
• Compatibility: Märklin C-track turnouts (models 24611, 24612, 24671, 24672, 24630, 24640)
• Installation: Under-track mounting
• Motor type: Solenoid mechanism
• End-of-travel shut-off: Automatic
• Manual operation: Integrated lever
• Power supply: AC, 16 V
• Control method: Analog (control box) or digital (turnout decoder, e.g., Märklin 74461)
• Material: Plastic and metal
• Colour: Black/grey
• Scale: H0 (1:87)
• Special features: Low current consumption, reliable switching

Why choose it

This point drive is designed for the Märklin C-track system and provides dependable turnout control. The automatic end-of-travel shut-off protects the solenoid, while the integrated lever allows manual switching when needed.

Ideal use cases

• Remotely controlling turnouts on Märklin C-track layouts
• Upgrading manual turnouts to electric operation
• Integrating with digital control systems via a turnout decoder

Good to know

The drive operates on 16 V AC, the standard accessory voltage for Märklin systems. It does not provide position feedback.
