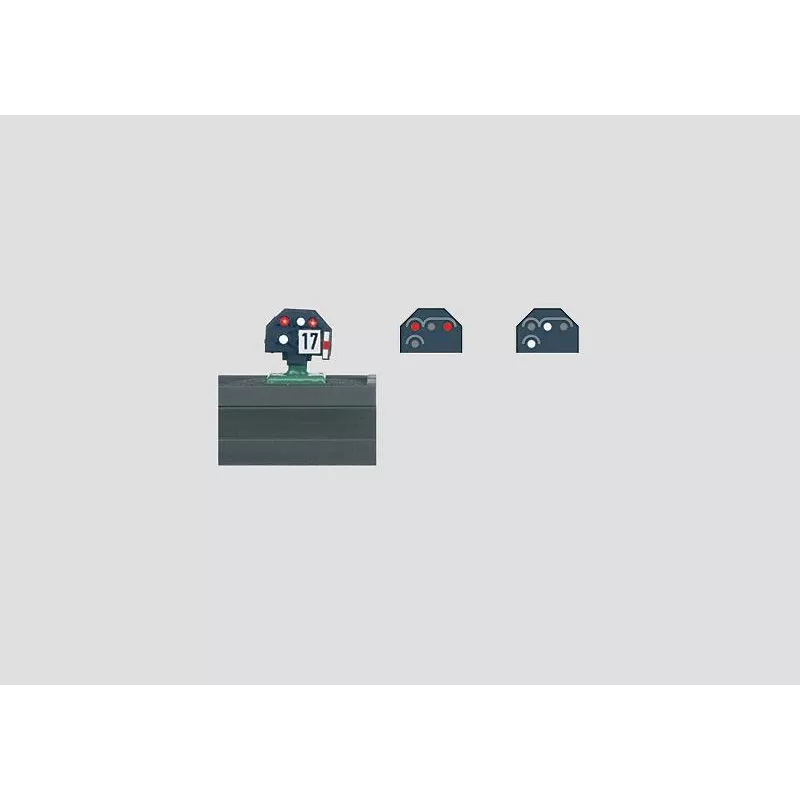

Märklin 76471 H0 valo-opastin esiopastimella, digitaali/analoginen, LED

This Märklin H0 light main signal with distant signal combines two signal functions in one compact unit, offering realistic multi-aspect signalling for your model railway. Unlike separate main and distant signals, this integrated mast saves space while providing prototypical operation.

Highlights

• Main signal aspects: Hp0 (Stop), Hp1 (Proceed at 100 km/h), Hp2 (Proceed at 40 or 60 km/h)
• Distant signal aspects: Vr0 (Expect Stop), Vr1 (Expect Proceed), Vr2 (Expect Proceed at 40 or 60 km/h)
• Maintenance-free LED lighting for long life and low power consumption
• Integrated digital decoder for Märklin Motorola and DCC protocols
• Operates on analog AC layouts as well
• Dimmable lights with realistic light changes
• Configurable digital addresses
• Plastic signal mast with metal base for stable installation

In daily use

Install the signal permanently on your layout and connect it to your Märklin AC or DCC digital system. The LEDs provide bright, realistic signal aspects, and the integrated decoder allows you to control both main and distant signals independently. The signal is designed for H0 scale and operates on 16-24V AC.

Full specifications

• Scale: H0
• Light technology: LED
• Main signal aspects: Hp0, Hp1, Hp2
• Distant signal aspects: Vr0, Vr1, Vr2
• Control: Digital (Märklin Motorola, DCC) and analog
• Operating voltage: 16-24V AC
• Integrated decoder: Yes
• Configurable addresses: Yes
• Dimmable lights: Yes
• Material: Plastic mast, metal base

Final note

Enhance your layout with realistic signalling using this versatile Märklin signal.
