Nvidia MC3309124-005 InfiniBand-kaapeli 5 m SFP+ musta (980-9I683-00J005)

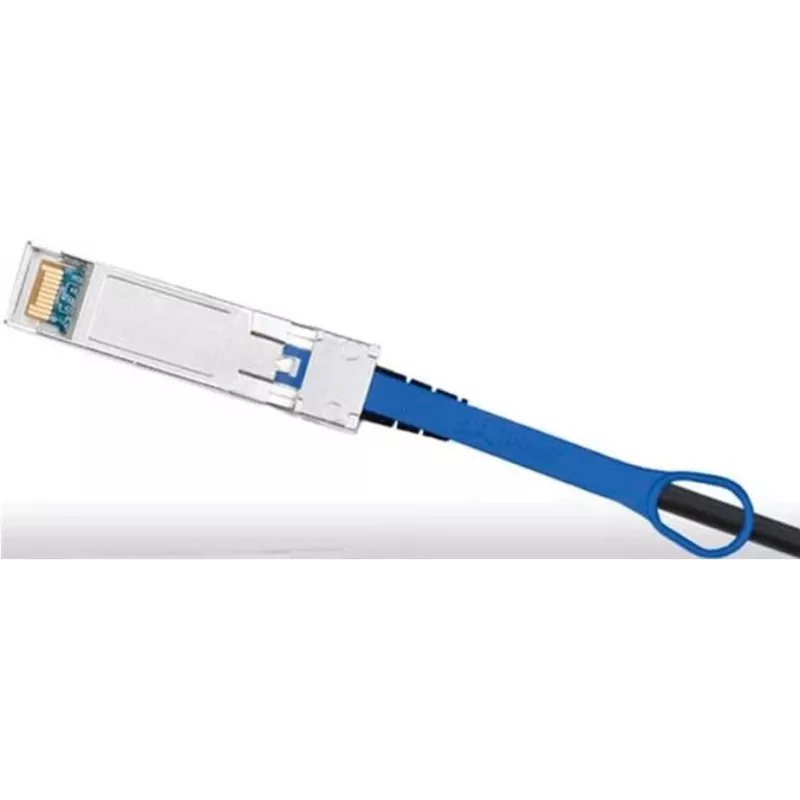

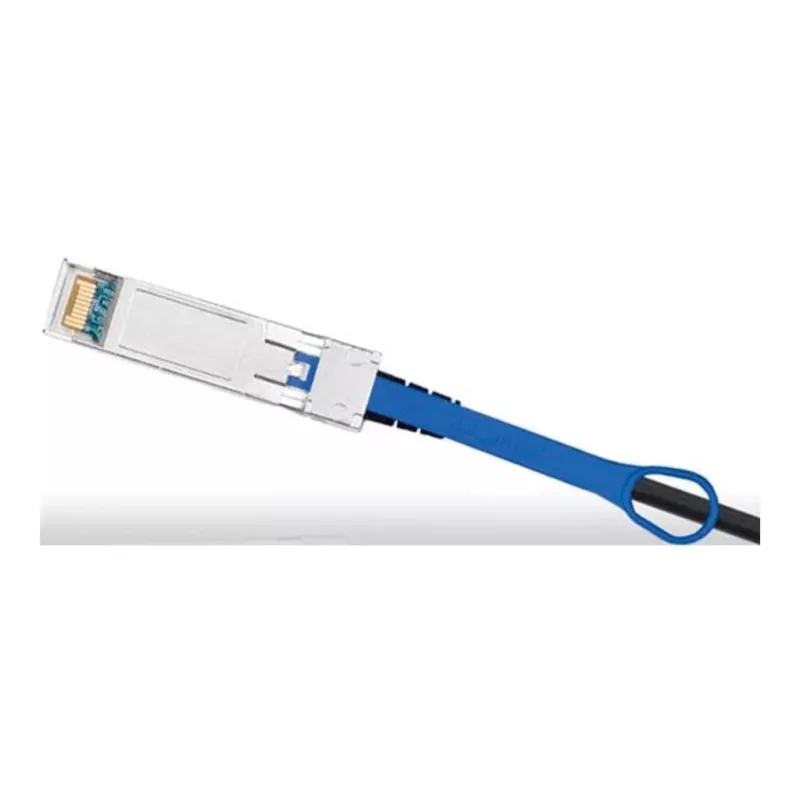

Connect servers and storage in high-performance data centers with this 5-meter direct attach copper cable. It links SFP+ ports on switches, network adapters, and storage controllers, delivering reliable 10 Gb/s throughput for InfiniBand FDR10 or 10 Gigabit Ethernet traffic.

Key specifications

• Length: 5 m
• Connectors: SFP+ to SFP+
• Data rate: 10 Gb/s per lane
• Protocols: InfiniBand FDR10, 10GbE
• Material: Copper, 24 AWG
• Colour: Black
• Impedance: 100 Ohm
• Operating temperature: 0°C to 70°C

Why choose it

Passive copper construction keeps power consumption below 0.5 W, reducing operating costs. The cable meets SFF-8431 and IBTA specifications for interoperability with Mellanox and NVIDIA equipment.

Ideal use cases

• Top-of-rack switch to server connections
• Storage area networks requiring low latency
• High-frequency trading and HPC clusters

Good to know

For best performance, use within the specified temperature range and avoid sharp bends that could damage the copper conductors.
