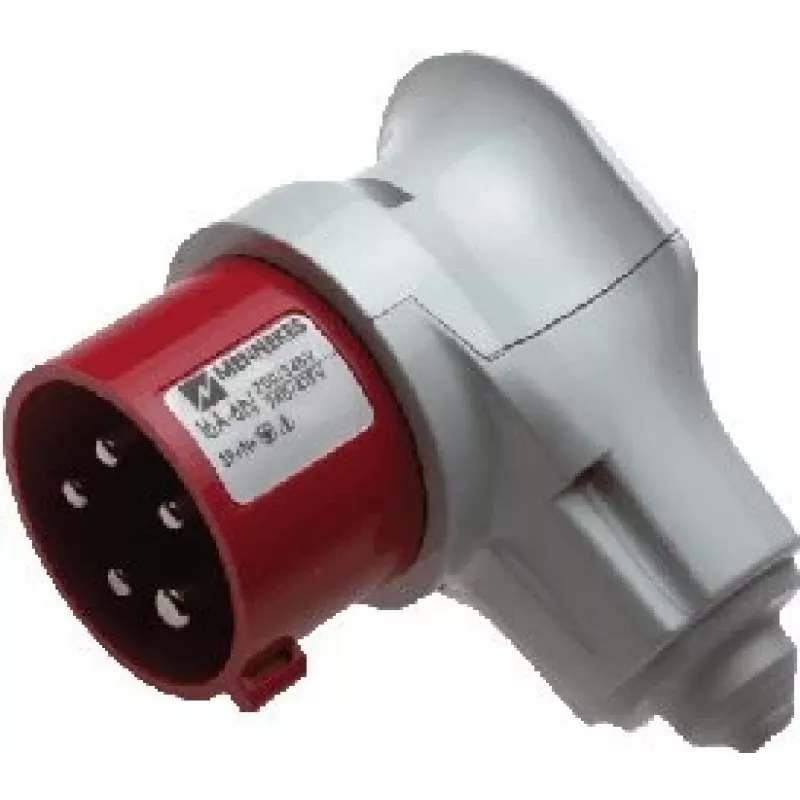

MENNEKES 16A 5-napainen 6h 400V kulmapistoke VarioTOP IP44 3982

When industrial power connections demand reliability under tough conditions, the MENNEKES 16A 5-pole angled plug delivers a secure, splash-proof link for three-phase equipment. Its 6 o'clock earth contact position prevents mismating, while the robust VarioTOP design withstands daily use in workshops, construction sites, and outdoor installations.

Who is it for

Electricians, maintenance teams, and equipment operators who need a durable, easy-to-wire plug for 400 V three-phase circuits. Ideal for portable machinery, generators, and temporary power distribution where angled cable entry saves space and reduces strain.

Main features

• Rated 16 A, 400 V, 5-pole (3P+N+PE) with 6h earth position for safe three-phase connections.
• IP44 protection against splashing water and solid objects over 1 mm, suitable for outdoor and washdown areas.
• Angled housing with screw terminals and cable gland for strain relief, accepting cables 8–18 mm diameter.
• High-quality polyamide (PA6) body in red/grey, resistant to impact and chemicals.
• Ergonomic grip and robust construction for frequent connect/disconnect cycles.

Specifications

• Brand: MENNEKES
• Model: 3982
• MPN: 3982
• EAN: 4015394119579
• Current rating: 16 A
• Voltage rating: 400 V
• Poles: 5 (3P+N+PE)
• Earth contact position: 6h
• IP rating: IP44
• Connector type: Angled plug
• Series: VarioTOP
• Connection technology: Screw terminals
• Cable entry: Gland with strain relief
• Cable diameter range: 8–18 mm
• Housing material: Polyamide (PA6)
• Colour: Red / Grey
• Standards: IEC 60309-1, IEC 60309-2
• Operating temperature: -25°C to +40°C
• Frequency: 50/60 Hz
• Contact material: Brass
• Mounting type: Cable mount

Tips

Always verify the earth contact position (6h) matches your socket before connecting. For outdoor use, ensure the cable gland is properly tightened to maintain IP44 protection. Pair with a MENNEKES compatible socket outlet for a complete, certified connection.
