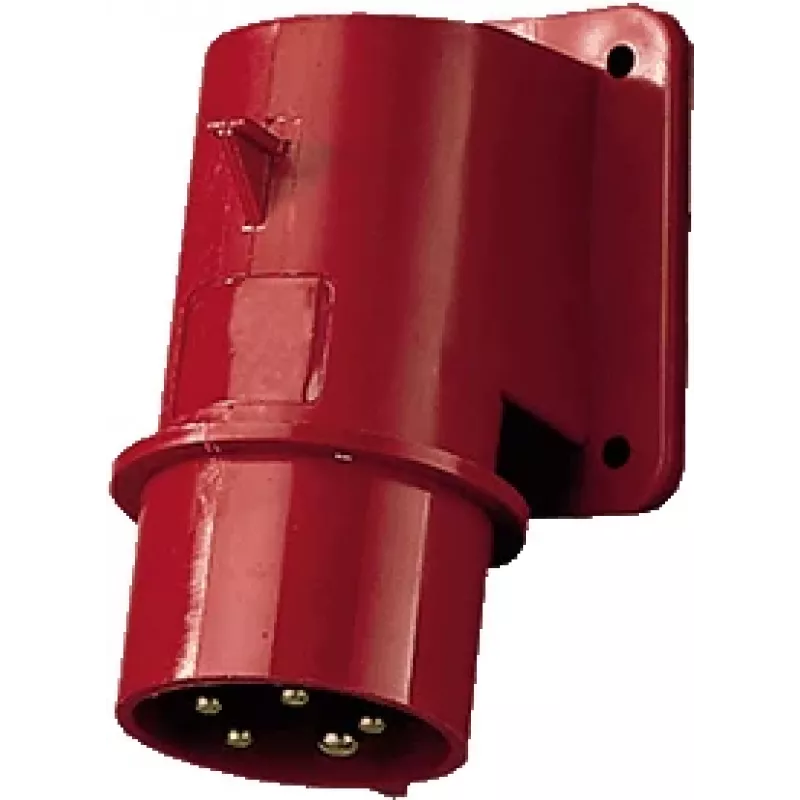

MENNEKES CEE-pinta-asennuspistoke 391 32A 5P 6H 400V IP44

This MENNEKES CEE surface-mounted plug stands out with its robust polyamide housing and screw terminals, engineered for reliable power connections in demanding industrial and commercial environments. The 32 A, 5-pole configuration with 6 h earth contact position ensures compatibility with standard 400 V three-phase systems.

Highlights

• 32 A current rating for high-power applications
• 5 poles (3P+N+PE) for three-phase with neutral and earth
• 400 V rated voltage, 50/60 Hz frequency
• IP44 protection against splashing water and solid objects
• Surface-mounted design with rear cable entry
• Red polyamide housing (RAL 3000) for high visibility

In daily use

The plug connects to a compatible CEE socket outlet, providing a secure and splash-proof connection for equipment such as distribution boards, generators, and heavy machinery. Screw terminals accept conductors from 2.5 to 10 mm², allowing flexible installation. The 75 x 75 mm flange dimensions suit standard surface mounting boxes.

Full specifications

• Product type: CEE surface-mounted plug
• Current rating: 32 A
• Number of poles: 5 (3P+N+PE)
• Voltage rating: 400 V
• Frequency: 50/60 Hz
• Earth contact position: 6 h
• Ingress protection: IP44
• Connection technology: Screw terminals
• Mounting type: Surface-mounted
• Housing material: Polyamide (PA6)
• Colour: Red (RAL 3000)
• Flange dimensions: 75 x 75 mm
• Cable entry: Rear
• Terminal capacity: 2.5 - 10 mm²
• Operating temperature: -25°C to +40°C
• Contact material: Brass, nickel-plated
• Glow wire test: 850 °C

Final note

A dependable choice for industrial power distribution where safety and durability are paramount.
