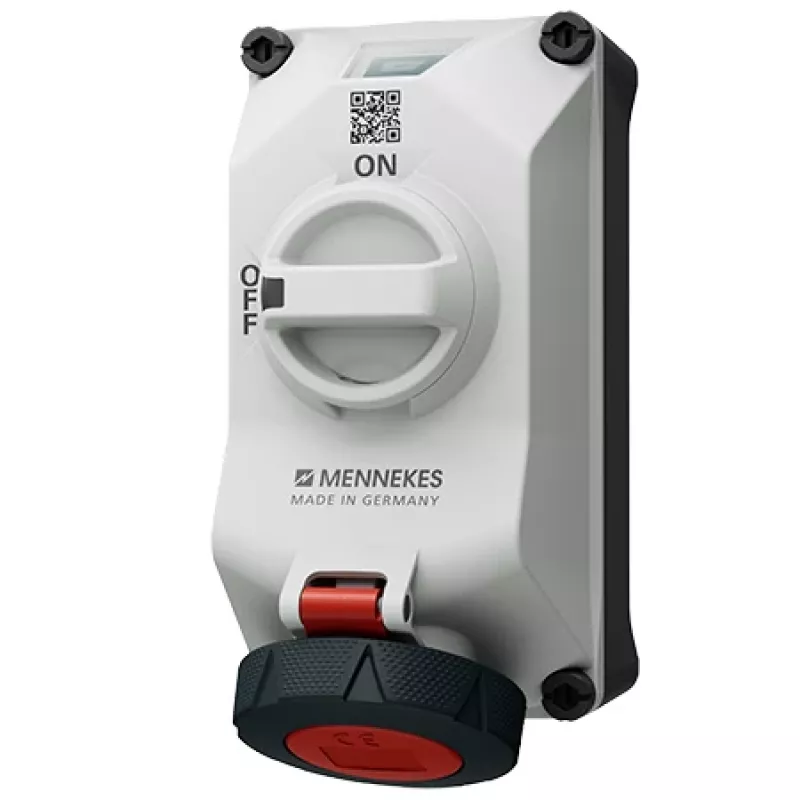

MENNEKES DUOi seinäpistorasia 5612506G 16A 5P 6h 400V IP69

In industrial food processing and pharmaceutical plants where high-pressure washdowns are routine, the MENNEKES DUOi wall-mounted socket provides a secure, watertight connection point for 400 V equipment. Its IP69 rating withstands close-range, high-temperature, high-pressure cleaning, making it a dependable power interface in demanding hygienic environments.

Key specifications

• Current rating: 16 A
• Voltage: 400 V
• Poles: 5 (3P+N+PE)
• Clock position: 6 h
• IP rating: IP69
• Housing material: Polyamide (PA6)
• Contact material: Nickel-plated brass
• Connection: Screw terminals
• Mounting: Wall-mounted
• Cable entry: 1x M25 top, 2x M25 bottom knock-outs
• Flange dimensions: 100 x 100 mm
• Operating temperature: -25°C to +40°C
• Terminal cross-section: 1.5 - 4 mm²
• Impact protection: IK08

Why choose it

The DUOi series combines robust construction with a compact flange design, allowing easy installation in tight spaces. Nickel-plated contacts ensure reliable conductivity and corrosion resistance, while the polyamide housing withstands harsh cleaning agents and mechanical stress.

Ideal use cases

• Food and beverage production lines with daily washdowns
• Pharmaceutical cleanrooms requiring high hygiene standards
• Outdoor installations exposed to weather and high-pressure cleaning
• Industrial kitchens and catering facilities

Good to know

The socket is compliant with IEC 60309-1 and IEC 60309-2, ensuring compatibility with standard industrial plugs. Its 6 h clock position prevents mismating with different voltage systems.
