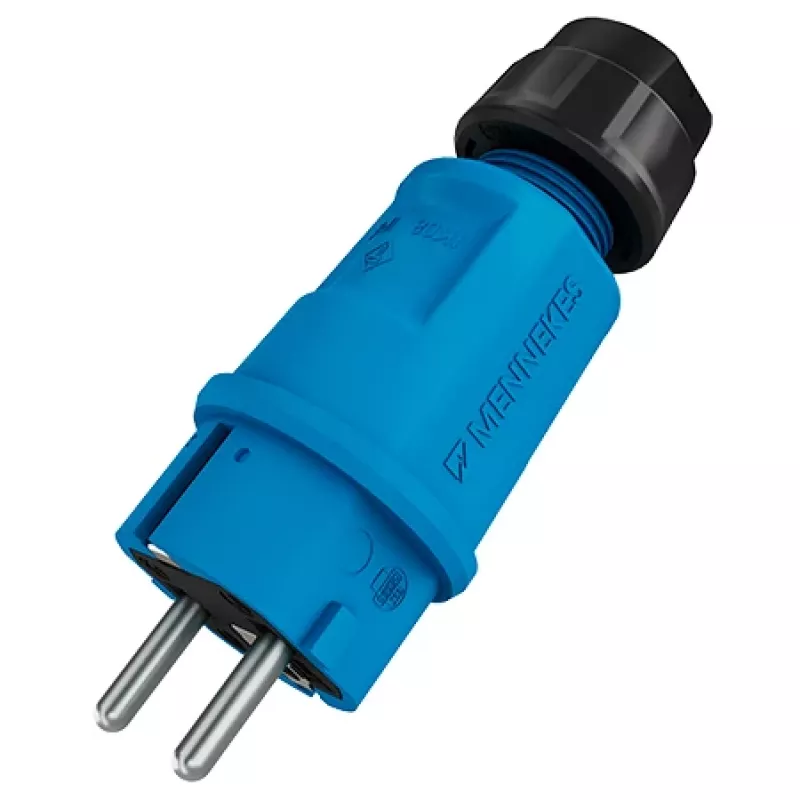

Mennekes SCHUKO-pistoke 16A 2P+PE IP54 sininen (152092)

Industrial and outdoor power connections demand a plug that can withstand moisture, dust, and mechanical stress. The Mennekes SCHUKO plug 152092 provides a secure 16 A, 230 V connection with IP54 protection, making it suitable for damp and dusty environments where standard plugs fail.

Who is it for

Electricians, maintenance teams, and DIY users who need a reliable, rewireable plug for portable equipment, generators, or outdoor installations. Its robust thermoplastic housing and integrated strain relief ensure long service life even with frequent handling.

Main features

• SCHUKO (Type F) plug, 2-pole + protective earth (2P+PE)
• Rated at 16 A, 230 V AC, 50/60 Hz
• IP54 ingress protection against dust and splashing water
• Blue thermoplastic housing for high visibility and durability
• Screw terminals for secure, field-installable connections
• Straight cable entry with integrated strain relief, accepts cable diameter 6–13 mm
• Nickel-plated brass contacts for corrosion resistance

Specifications

• Current rating: 16 A
• Voltage rating: 230 V AC
• Frequency: 50/60 Hz
• Pole configuration: 2P+PE
• IP rating: IP54
• Colour: Blue
• Connection type: Screw terminals
• Cable entry: Straight
• Cable diameter range: 6–13 mm
• Housing material: Thermoplastic
• Contact material: Brass, nickel-plated
• Operating temperature: -25 °C to +40 °C
• Mounting type: Cable-mounted
• Strain relief: Integrated

Tips

For outdoor use, ensure the cable gland is properly tightened to maintain the IP54 seal. Pair with a matching Mennekes SCHUKO socket or coupler for a complete, weather-resistant extension solution.
