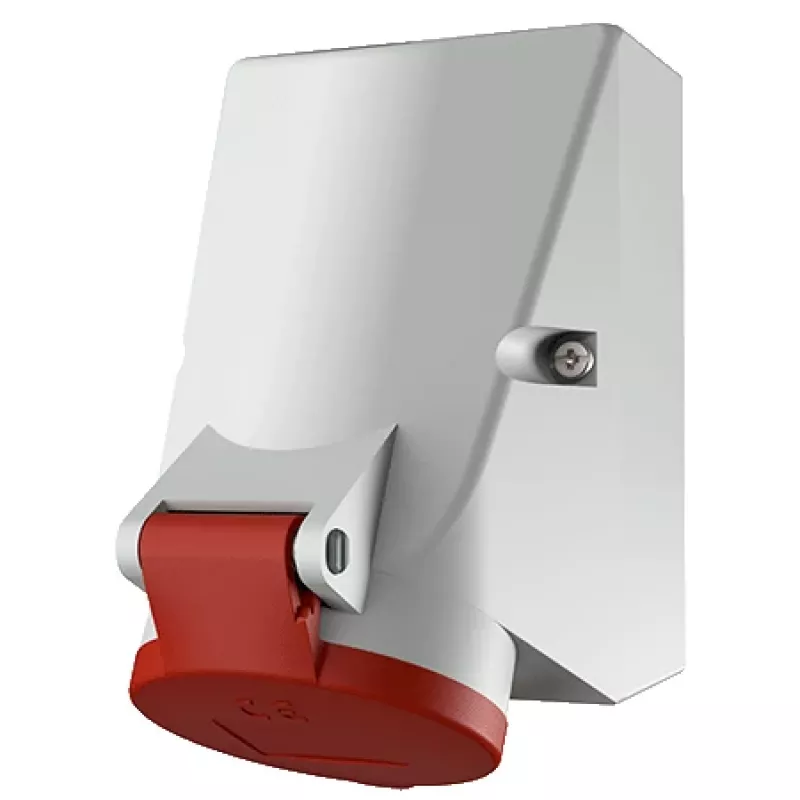

MENNEKES seinäpistorasia CEE HW/VN 16A 7P 6h 400V IP44 punainen

The MENNEKES HW/VN wall-mounted socket stands out with its 7-pole configuration, adding two auxiliary contacts to the standard 3P+N+PE setup for enhanced control and signaling in industrial environments. Its 6h hour position and 400V rating make it ideal for three-phase equipment in commercial and construction settings where reliable power distribution is critical.

Highlights

• 16 A current rating with 400 V (380–415 V) voltage for demanding three-phase applications
• 7-pole design (3P+N+PE + 2 auxiliary contacts) for flexible connectivity and control
• IP44 protection against splashing water and solid objects, suitable for protected outdoor use
• Robust polyamide housing with hinged cover for durability and easy access
• Versatile cable entry options (top, bottom, rear) for flexible installation

In daily use

This wall-mounted socket is engineered for industrial and commercial environments where reliability is paramount. The screw terminals accommodate 1.5–4 mm² conductors, ensuring secure connections. Its red housing provides clear identification for 400V systems, while the hinged cover protects the contacts when not in use. Operating from -25°C to +40°C, it performs consistently across a wide temperature range.

Full specifications

• Connector Type: CEE Wall Socket
• Current Rating: 16 A
• Voltage Rating: 400 V (380–415 V)
• Number of Poles: 7-pole (3P+N+PE + 2 Auxiliary Contacts)
• Hour Position: 6h
• Ingress Protection (IP) Rating: IP44
• Mounting Type: Wall-mounted
• Housing Material: Polyamide (PA)
• Connection Technology: Screw terminals
• Frequency: 50/60 Hz
• Colour: Red
• Standards Compliance: IEC 60309-1, IEC 60309-2
• Cable Entry: Multiple (top, bottom, rear)
• Cover Type: Hinged cover
• Application Environment: Industrial, Commercial, Construction Sites (protected outdoor)
• Operating Temperature Range: -25°C to +40°C
• Terminal Cross-Section: 1.5 - 4 mm²
• Series: HW/VN

Final note

MENNEKES is a trusted name in industrial plugs and sockets, and the HW/VN series delivers the robust performance expected in demanding electrical installations.
