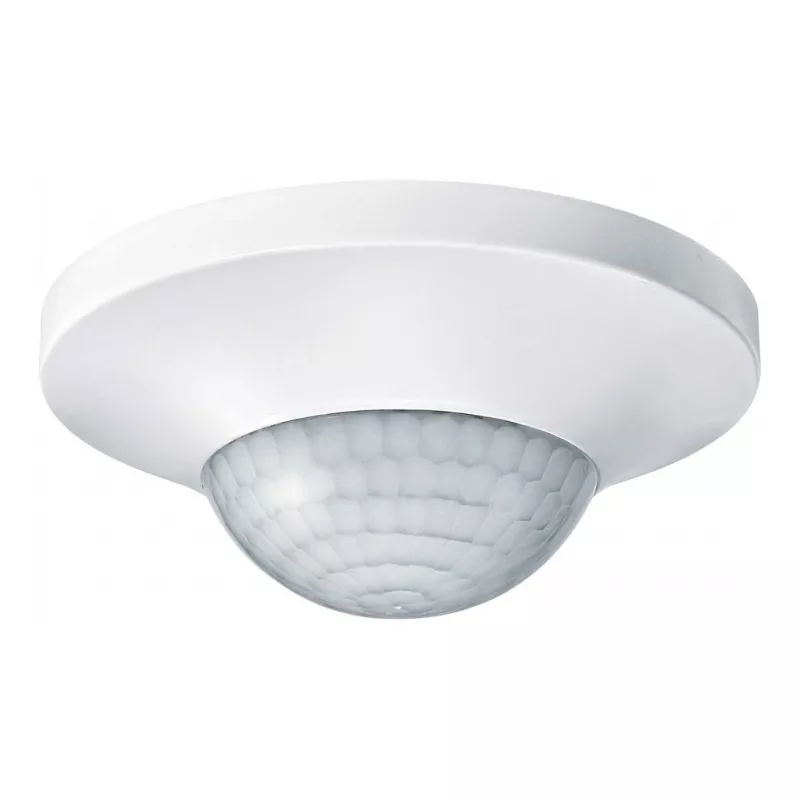

Merten ARGUS läsnäolotunnistin rele 1-kertainen polarvalkoinen MEG5510-1119

The Merten ARGUS Presence Detector Relay Insert MEG5510-1119 is a high-quality flush-mounted device designed for automatic lighting control in residential and commercial spaces. It detects presence and motion within a 360° coverage area, switching connected loads on and off based on occupancy and ambient brightness. The relay insert requires a compatible ARGUS 360° presence detector cover (sold separately) to complete the installation.

Advantages

Energy-efficient automatic lighting control reduces electricity costs. Adjustable brightness threshold and time delay allow customization to user needs. Reliable switching capacity of 10 A resistive load ensures compatibility with various lighting fixtures. Compact design fits standard flush-mounted boxes.

Suitable for

• Offices and meeting rooms
• Corridors and stairwells
• Bathrooms and utility rooms
• Warehouses and storage areas
• Any indoor space requiring automatic presence-based lighting

Key specifications

• Product Type: Presence Detector Relay Insert
• Series: Merten ARGUS
• Colour: Polar white (RAL 9010)
• Mounting: Flush-mounted
• Operating Voltage: 230 V AC, 50/60 Hz
• Switching Output: 1-channel (1 NO contact)
• Switching Capacity (Resistive): 10 A (2300 W)
• Switching Capacity (Inductive): 6 AX (1380 VA)
• Detection Angle: 360° (with compatible cover)
• Detection Range Presence: approx. Ø 8 m at 2.5 m height
• Detection Range Motion: approx. Ø 12 m at 2.5 m height
• Brightness Threshold: adjustable 10–2000 lux
• Time Delay: adjustable 10 s–60 min
• Protection Class: IP20
• Ambient Temperature: -5 °C to +45 °C
• Material: Thermoplastic
• Connection: Screw terminals
• Standby Power: < 1 W

Recommendations

For complete functionality, pair this relay insert with a Merten ARGUS 360° presence detector cover (e.g., MEG5570-0000 series). Ensure professional installation by a qualified electrician.
