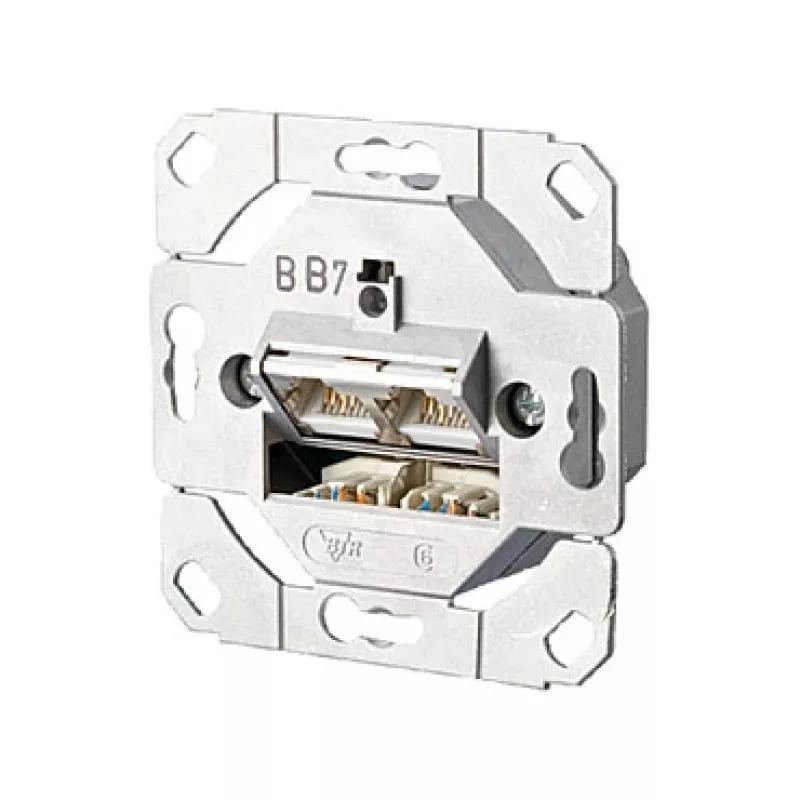

Metz Connect E-DAT C6A Uppoasennettava 2-porttinen datarasia, 130C381200-I

The Metz Connect E-DAT C6A 2-Port Flush-Mount Data Socket (MPN 130C381200-I) is a channel connection unit with two 8-pole RJ-45 sockets. It supports Ethernet LAN and is designed for flush mounting in standard underplaster and hollow-wall boxes.

Key features

• Two 8-pole RJ-45 sockets
• Cat.6A component tested according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT certified
• Complies with Class EA up to 500 MHz according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
• Tested: component up to 600 MHz, link up to 800 MHz
• For 10 GBit Ethernet (IEEE 802.3an)
• Suitable for Power over Ethernet (PoE, PoE plus and UPoE)
• HF-optimised and ergonomically shaped LSA connection terminal
• Screw fastening of the flap for strain relief and shield connection from the front
• Practical cable feed from 8 sides
• Connection of data lines AWG24/1 - 22/1 (solid wire)
• Plug direction inclined 45° downwards
• Compatible with design central plates of switch ranges
• Suitable for installation in standard underplaster boxes and hollow-wall boxes
• Without cover parts

Specifications

• Brand: METZ
• MPN: 130C381200-I
• Ethernet LAN: Yes
• Socket type: RJ-45
• Number of sockets: 2
• Network cable category: 6a
• Product colour: Aluminium
