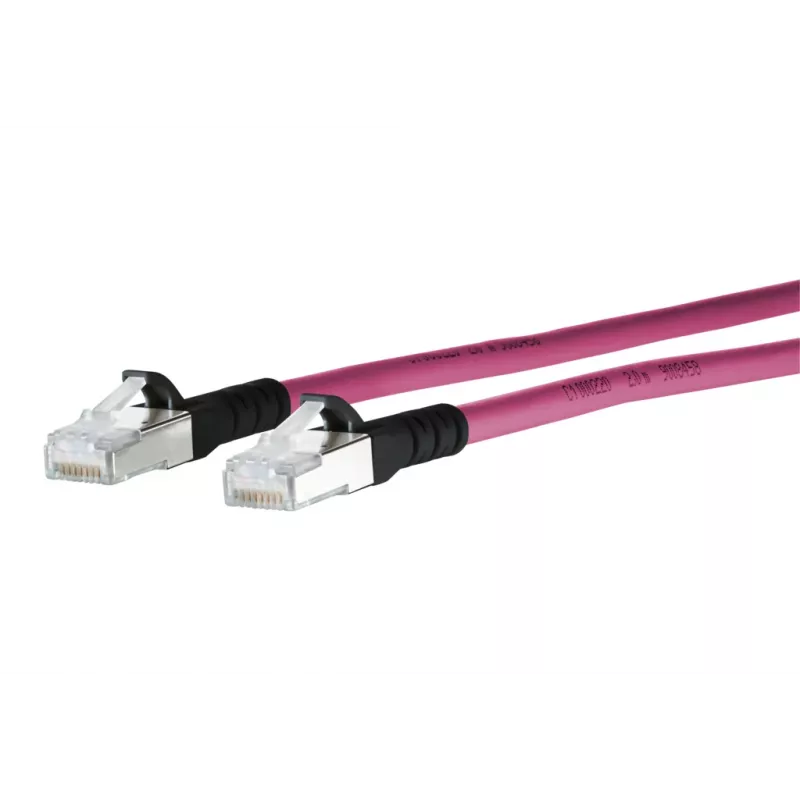

METZ CONNECT 1308450502-E Cat6a SF/UTP verkko-patchkaapeli 0,5 m magenta

The METZ CONNECT 1308450502-E is a high-performance Cat6a network patch cable designed for reliable 10 Gigabit Ethernet connections. With a length of 0.5 meters and SF/UTP shielding, this cable ensures minimal interference and optimal signal integrity for demanding network environments. Its vibrant magenta color makes it easy to identify and manage in server racks or data centers.

Advantages

This cable supports 10GBASE-T data transfer rates up to 10 Gbps and a bandwidth of 500 MHz, making it ideal for high-speed data transmission. The SF/UTP shielding provides excellent protection against electromagnetic interference (EMI), ensuring stable and error-free connections. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic smoke in case of fire, making it suitable for use in public and commercial buildings.

Suitable for

• Data centers and server rooms requiring high-speed network connections
• Enterprise networks where cable management and color coding are important
• Applications demanding PoE (Power over Ethernet) support for devices like IP cameras and wireless access points
• Installations in environments with strict fire safety regulations

Key specifications

• Cable Type: Network Patch Cable
• Category: Cat6a
• Length: 0.5 m

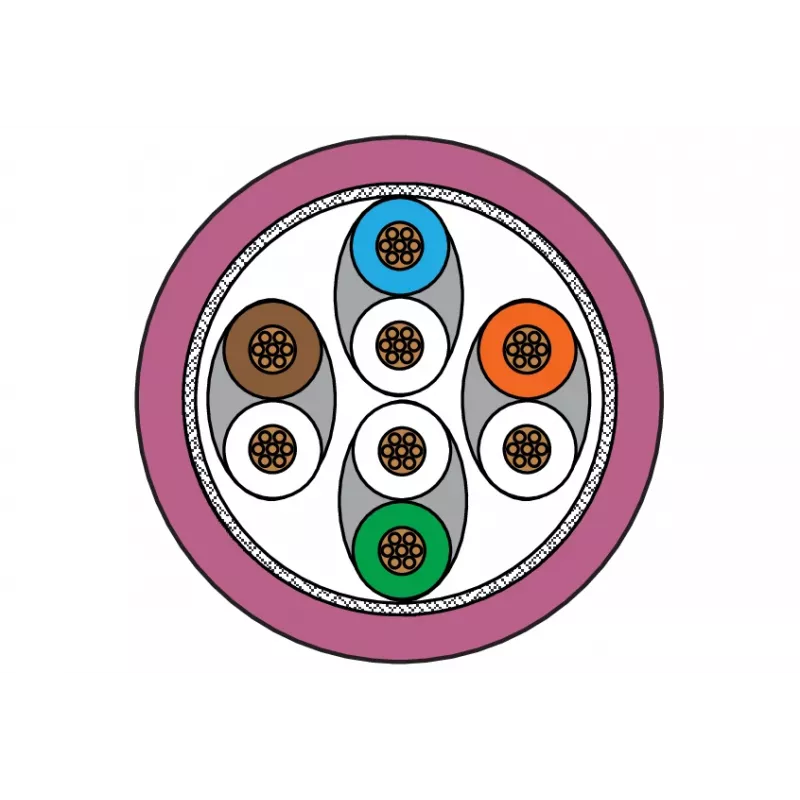

• Shielding Type: S/FTP (SF/UTP)
• Data Transfer Rate: 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 500 MHz
• Connector Type: RJ45 Male to RJ45 Male
• Color: Magenta
• Conductor Material: Copper
• Cable Construction: Stranded
• Jacket Material: LSZH (Low Smoke Zero Halogen)

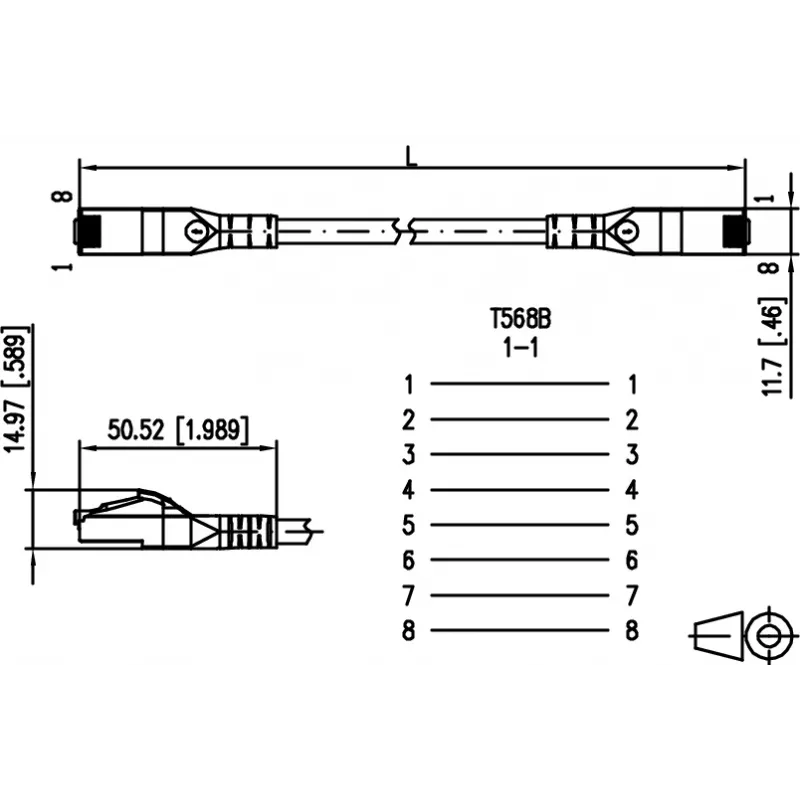

• Wiring Standard: TIA/EIA-568B
• PoE Support: Yes
• Impedance: 100 Ohm
• Halogen Free: Yes
• Flame Retardant: Yes

Recommendations

For optimal performance, pair this cable with compatible Cat6a or higher networking equipment. Ensure proper cable management to avoid kinking or bending beyond the recommended radius. This cable is an excellent choice for upgrading your network to support high-bandwidth applications.
