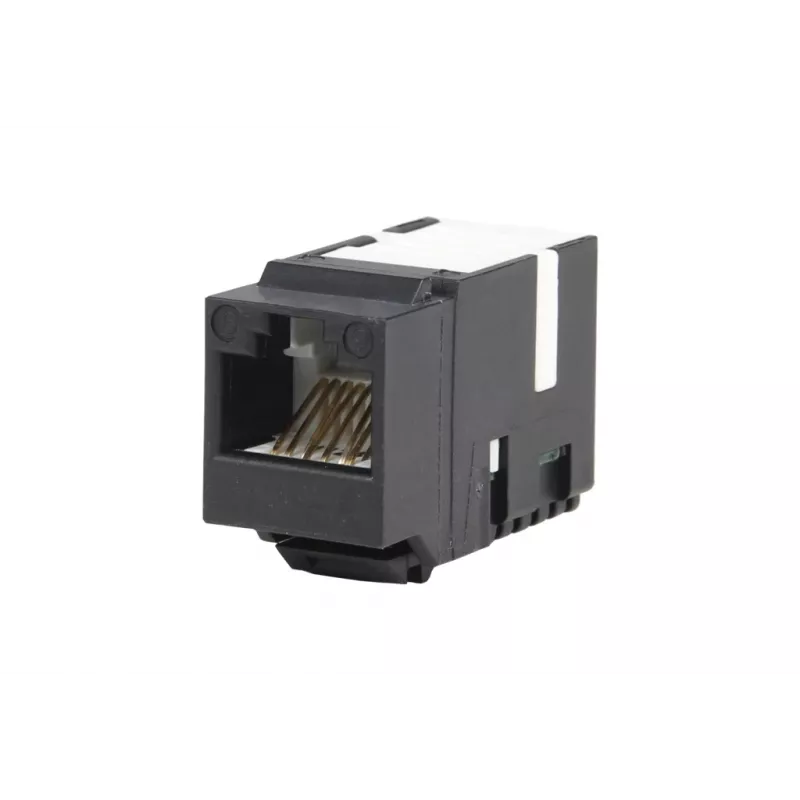

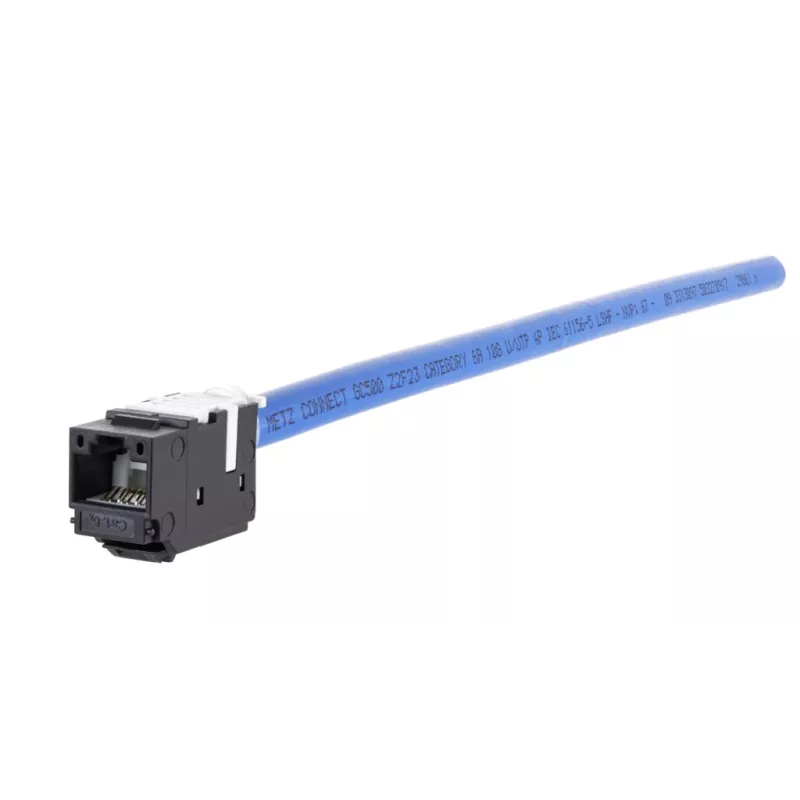

METZ CONNECT 130A10-29-I-B1 litteä musta RJ45-liitäntä Cat6A suojattu Keystone-moduuli

The METZ CONNECT 130A10-29-I-B1 is a high-performance shielded Cat.6A RJ45 keystone module designed for reliable 10 Gigabit Ethernet transmission. Its flat, black design and female RJ45 connectors make it ideal for structured cabling systems requiring tool-less termination and robust shielding.

Advantages

Tool-less IDC termination saves installation time and reduces errors. Shielded die-cast zinc housing provides excellent EMI/RFI protection. Supports PoE, PoE+, and 4PPoE for power-over-Ethernet applications. Compatible with solid and stranded wires (AWG 22-26).

Suitable for

• Data center and enterprise network cabling
• 10 Gigabit Ethernet (IEEE 802.3an) installations
• Industrial environments requiring shielded connections
• PoE devices such as cameras, access points, and IoT sensors

Key specifications

• Product Type: RJ45 Keystone Module
• Category: Cat.6A (IEC 60603-7-51)
• Shielding: Shielded (STP/FTP)
• Connector Type: RJ45 Female
• Termination Type: IDC, tool-less
• Cable Entry Angle: 180° (straight)
• Color: Black
• Housing Material: Die-cast zinc
• Transmission Performance: 10 Gigabit Ethernet, up to 500 MHz
• Mounting Standard: Keystone format
• Contact Material: Gold-plated
• Supported Wire Gauge: AWG 24/1 - 22/1 (solid), AWG 26/7 - 22/7 (stranded)
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating Temperature: -40°C to +70°C
• Number of Ports: 1
• Wiring Scheme: T568A / T568B (color coded)

Recommendations

For optimal performance, use with Cat.6A shielded patch cables and ensure proper grounding. Suitable for both residential and commercial installations requiring high-speed data transmission.
