METZ CONNECT M12-liitin D-koodattu IP67 kenttäasennettava (MMF881A115)

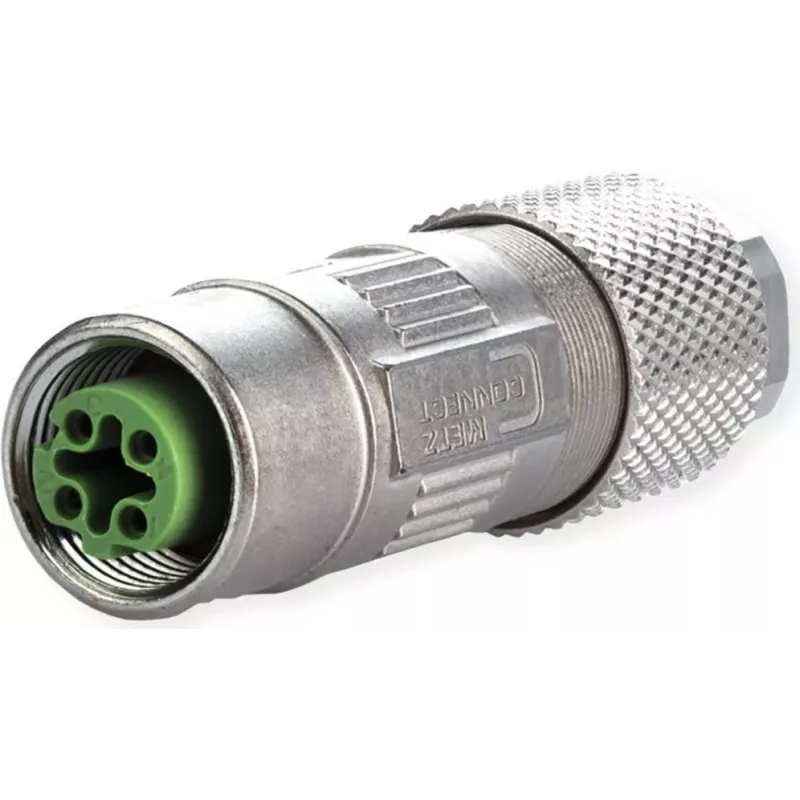

The METZ CONNECT MMF881A115 is a high-quality M12 socket (female) with D-coding, designed for field-attachable installation in industrial Ethernet and PROFINET networks. With an IP67 rating, it ensures reliable performance in harsh environments, offering protection against dust and water immersion. The IDC termination allows for quick and tool-free wiring, making it ideal for on-site assembly.

Advantages

Field-attachable design enables flexible on-site installation without special tools. The robust zinc die-cast housing with nickel plating provides excellent durability and corrosion resistance. Gold-plated contacts ensure reliable signal transmission and long-term stability. Compatible with cables of 4.0-8.0 mm diameter and wire gauges AWG 26/7 to AWG 22/7 (stranded) or AWG 24/1 to AWG 22/1 (solid).

Suitable for

• Industrial Ethernet and PROFINET networks
• Automation and control systems
• Sensor/actuator connections in harsh environments
• Field assembly and maintenance applications

Key specifications

• Connector Type: M12, Female (Socket)
• Coding: D-coded
• Number of Pins: 4
• Ingress Protection: IP67
• Termination: IDC (Insulation Displacement Connector)
• Rated Voltage: 250 V
• Rated Current: 4 A
• Operating Temperature: -40°C to +85°C
• Housing Material: Zinc die-cast, nickel-plated
• Contact Material: CuZn, gold-plated
• Insulation Material: PA (Polyamide)
• Compatible Cable Diameter: 4.0 - 8.0 mm
• Compatible Wire Gauge (Stranded): AWG 26/7 - AWG 22/7
• Compatible Wire Gauge (Solid): AWG 24/1 - AWG 22/1
• Standard Compliance: IEC 61076-2-101
• Mounting Type: Cable Mount

Recommendations

For optimal performance, use with shielded twisted-pair cables designed for PROFINET or Industrial Ethernet. Ensure proper cable stripping and insertion into the IDC terminals. This connector is a reliable choice for demanding industrial applications requiring quick and secure field termination.
