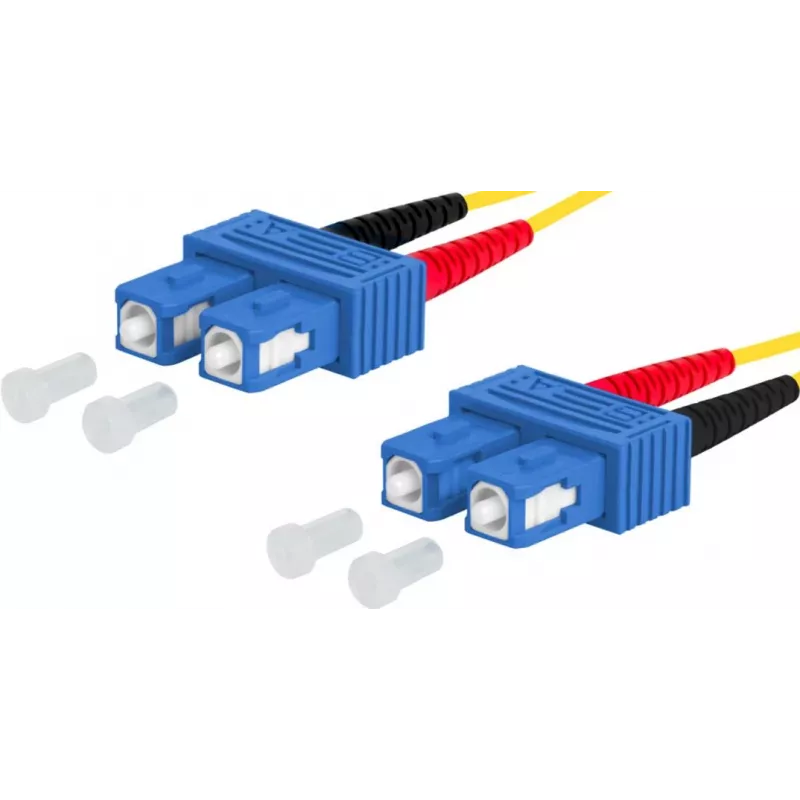

METZ CONNECT OpDAT patch-kaapeli SC duplex/SC duplex OS2 0,5 m

The METZ CONNECT OpDAT patch cable is a high-quality fiber optic patch cable designed for reliable single-mode connections in data centers, telecommunications, and enterprise networks. With SC duplex connectors on both ends and OS2 single-mode fiber, it ensures low insertion loss and high return loss for optimal signal integrity over short distances.

Advantages

This cable offers excellent performance with low insertion loss (≤0.3 dB) and high return loss (≥45 dB), ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The duplex zipcord construction allows easy handling and installation, while the yellow jacket color enables quick identification as a single-mode cable.

Suitable for

• Data center patching
• Telecommunications networks
• Enterprise LAN backbones
• FTTx applications
• Test and measurement equipment

Key specifications

• Fiber type: Single-mode OS2 (9/125 µm)
• Connectors: SC Duplex (both ends) with PC polish
• Length: 0.5 m
• Number of fibers: 2
• Cable construction: Duplex zipcord
• Jacket material: LSZH, yellow
• Cable diameter: 2.8 mm
• Insertion loss: ≤0.3 dB
• Return loss: ≥45 dB
• Attenuation: 0.35 dB/km @ 1310 nm, 0.25 dB/km @ 1550 nm
• Operating temperature: -10 to +60 °C
• Storage temperature: -20 to +70 °C
• Polarity: Crossed (A-B)
• Compliance: RoHS, REACH, IEC 61753-1 Cat. U, IEC 61754-4

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to avoid sharp bends and maintain bend radius. This cable is ideal for short-distance patching in racks and cabinets.
