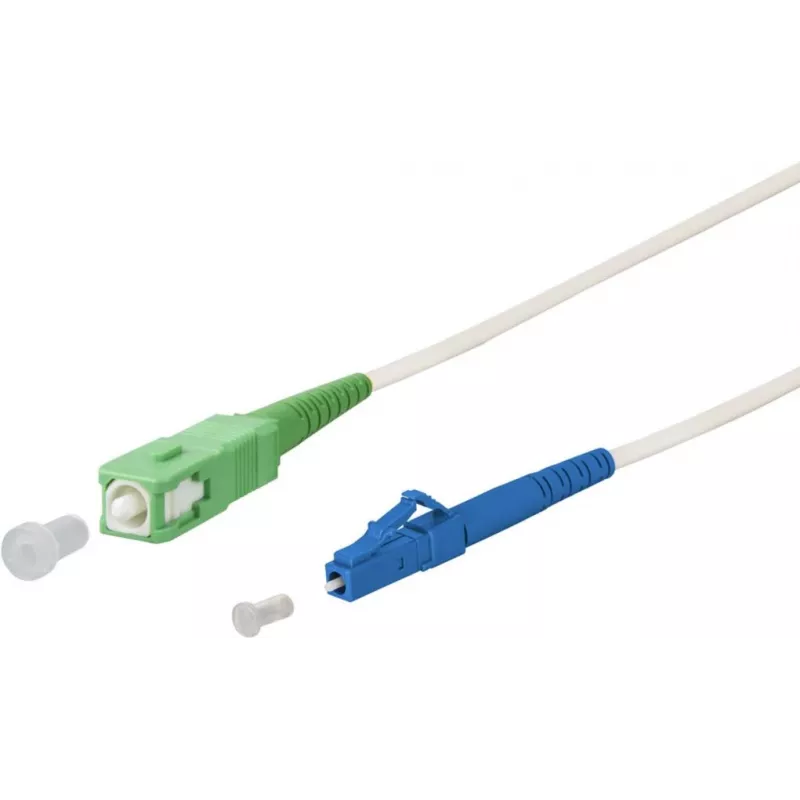

METZ CONNECT OpDAT patchkaapeli SC-S APC/LC-S OS2 valkoinen 2,0 m

The METZ CONNECT OpDAT Patch Cable is a high-quality fiber optic patch cable designed for reliable single-mode connections in data centers, LAN, FTTx, and telecommunications networks. With SC-S APC to LC-S PC connectors and OS2 fiber, it ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers excellent performance with typical insertion loss < 0.3 dB and return loss > 60 dB (SC-APC) and > 50 dB (LC-PC). The LSZH jacket provides safety in enclosed spaces, and the 2.0 mm diameter ensures flexibility and easy handling.

Suitable for

• Data center cabling
• Local area networks (LAN)
• FTTx installations
• Telecommunications infrastructure

Key specifications

• Fiber type: Single-mode OS2 (9/125 µm)
• Connector A: SC-S APC
• Connector B: LC-S PC
• Cable length: 2.0 m
• Cable colour: White
• Jacket material: LSZH
• Cable diameter: 2.0 mm
• Insertion loss: < 0.3 dB typical
• Return loss: > 60 dB (SC-APC), > 50 dB (LC-PC)
• Operating temperature: -10°C to +60°C
• Standards: IEC 61753-1, IEC 61754-4, IEC 61754-20

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for high-speed data transmission in structured cabling systems.
