MIBOXER D2-CX LED DMX 2-kanavainen ohjain DMX-sarja

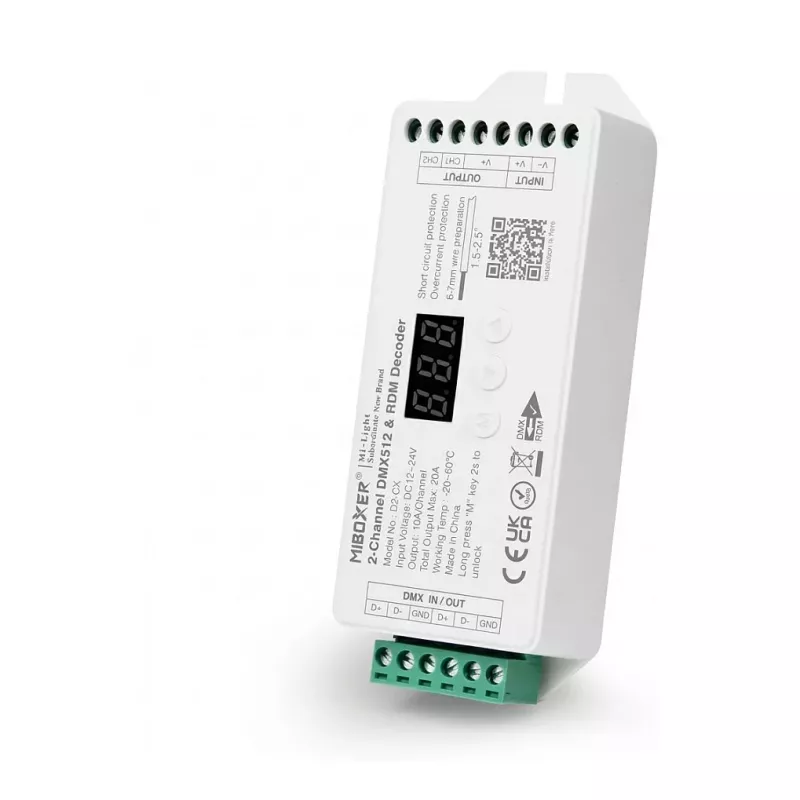

The MIBOXER D2-CX is a professional 2-channel LED DMX controller designed for single-color or CCT (dual white) LED strips. It supports both DMX512 and 2.4GHz RF control, offering flexible and reliable lighting management for stage, architectural, and commercial applications.

Advantages

This controller combines wired DMX512 control with wireless 2.4GHz RF remote compatibility, allowing easy integration into existing DMX systems or standalone operation with MiBoxer remotes. With a high output current of 6A per channel (12A total) and wide input voltage range (12-24V DC), it can drive powerful LED installations. The built-in overload and short circuit protection ensure safe operation.

Suitable for

• Single-color LED strip lighting
• CCT (dual white) tunable white LED strips
• Stage and theater lighting
• Architectural accent lighting
• Commercial display lighting

Key specifications

• Control Protocol: DMX512 & 2.4GHz RF
• Number of Output Channels: 2
• Input Voltage: DC 12V-24V
• Output Current per Channel: 6A
• Max Total Output Current: 12A
• Max Output Power: 144W (12V) / 288W (24V)
• Output Type: Constant Voltage
• DMX Channels Used: 2
• Dimming Range: 0-100%
• Operating Temperature: -20°C to 60°C
• Connection Type: Screw Terminals (Power/LED), RJ45 (DMX)
• Housing Material: ABS Plastic
• Compatibility: MiBoxer 2.4G RF remotes and WL-Box1 gateway

Recommendations

For best performance, use with a suitable constant voltage LED power supply and ensure proper DMX termination. Pair with MiBoxer 2.4G RF remotes for wireless control or connect to a DMX console for advanced programming.
