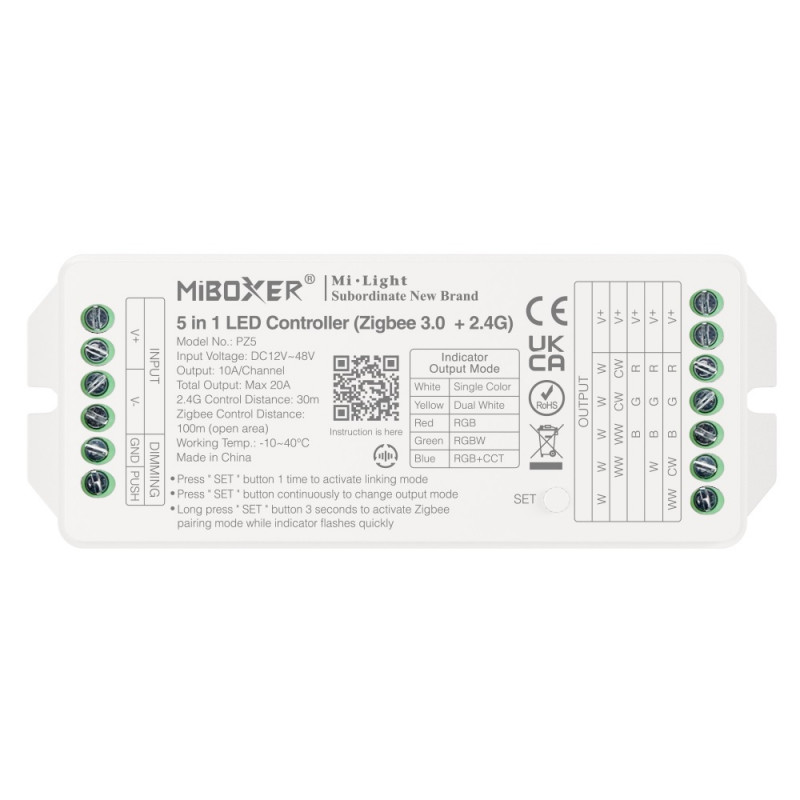

MiBoxer PZ5 5-in-1-LED-ohjain, Zigbee 3.0 + 2,4 GHz RF, 12–48 V, 20 A

MiBoxer PZ5 is a constant-voltage LED controller with five selectable output modes: single colour, CCT dual white, RGB, RGBW and RGB+CCT. The Set button selects the mode and a coloured indicator identifies the current setting. The input is 12–48 V DC. Output is limited to 10 A per channel and 20 A across all channels combined, so both limits must be considered when selecting LED strips and a matching power supply.

The PZ5 supports Zigbee 3.0 and compatible MiBoxer/Mi-Light 2.4 GHz RF remotes. Specified control distances are up to 100 m for Zigbee in open space and 30 m for RF under suitable conditions. A compatible Zigbee gateway enables app control and supported smart-home integrations; available features depend on the gateway. An external PUSH button can switch the light and adjust brightness.

RF command forwarding, dynamic-mode synchronisation and configurable power-return behaviour are supported. The white IP20 enclosure is intended for dry indoor installations at −10 to +40 °C. Screw terminals connect power, LEDs and the PUSH input. Power supply, LED strips, button, remote and gateway are separate components.
