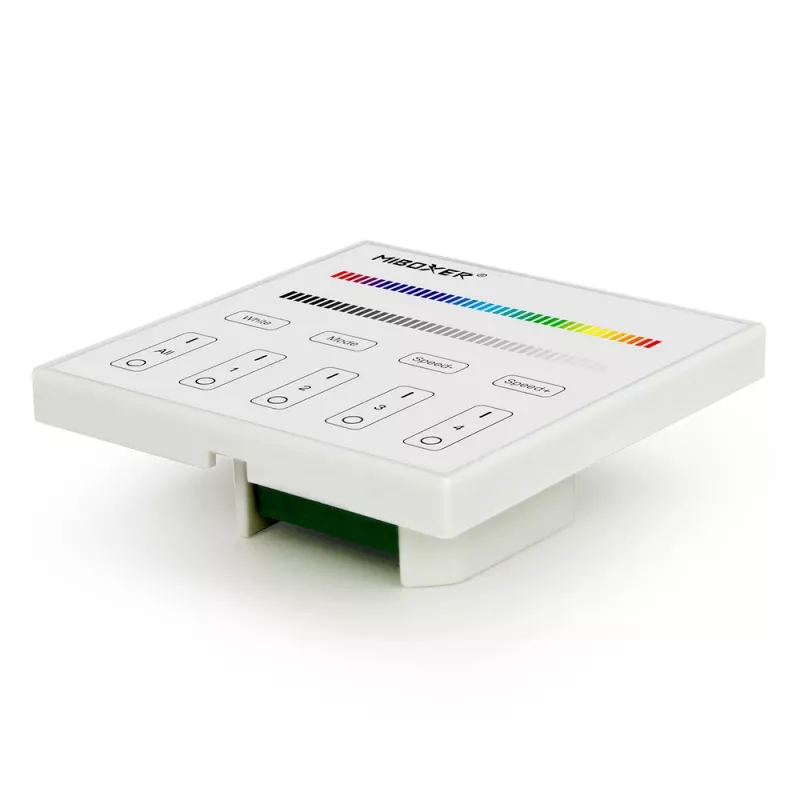

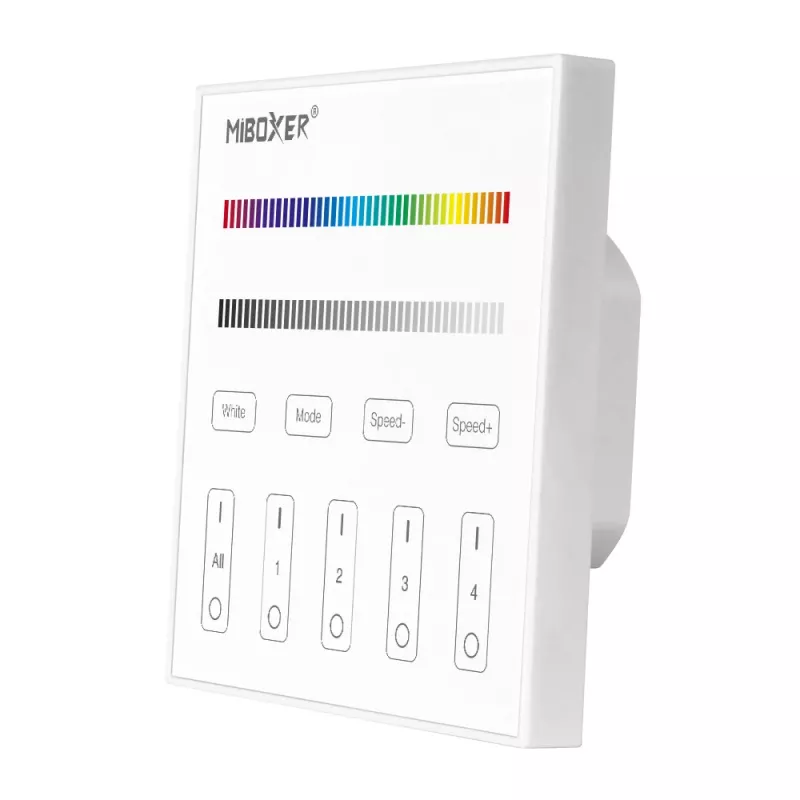

MiBoxer X3 älykäs kosketuspaneeli LED-ohjaukseen (DMX512 & 2,4GHz RF)

Controlling multiple LED zones with separate remotes or wall switches can be messy. The MiBoxer X3 Smart Touch Panel solves this by combining DMX512 and 2.4GHz RF control into a single wall-mounted glass interface, giving you direct command over RGB, RGBW, dual-white, and single-color LED lighting.

Who is it for

This panel is for lighting installers, integrators, and advanced home users who need a clean, centralized way to manage up to four independent lighting zones using MiLight/MiBoxer 2.4GHz products or standard DMX512 decoders.

Main features

• Capacitive touch screen with tempered glass front for precise, responsive control.
• Supports RGB, RGBW, CCT (dual white), and single-color LED types.
• Four independent control zones, each configurable for different lighting loads.
• Dual output: DMX512 for wired installations and 2.4GHz RF for wireless MiLight/MiBoxer compatibility.
• Adjust brightness, color temperature, RGB color, and saturation directly from the panel.
• Scene recall function for quick access to saved lighting scenes.
• Wall-mounted design compatible with standard EU/US wall boxes.
• Powered by DC 12V with screw terminal connections for reliable installation.

Specifications

• Control type: Smart Touch Panel
• Control protocols: DMX512, 2.4GHz RF
• Number of control zones: 4
• Input voltage: DC 12V
• RF transmission frequency: 2.4GHz
• RF control distance: up to 30 meters (line of sight)
• Panel material: tempered glass
• Housing material: PC plastic
• Mounting type: wall-mounted
• Interface: capacitive touch screen
• Operating temperature: -20°C to 60°C

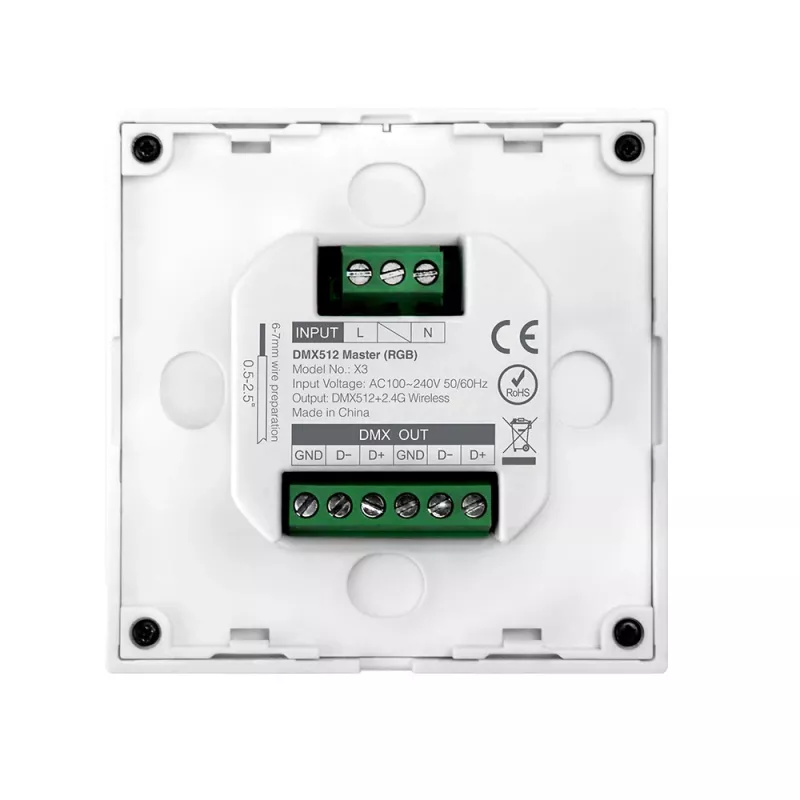

• Connection method: screw terminals for DMX and power
• Colour: white

Tips

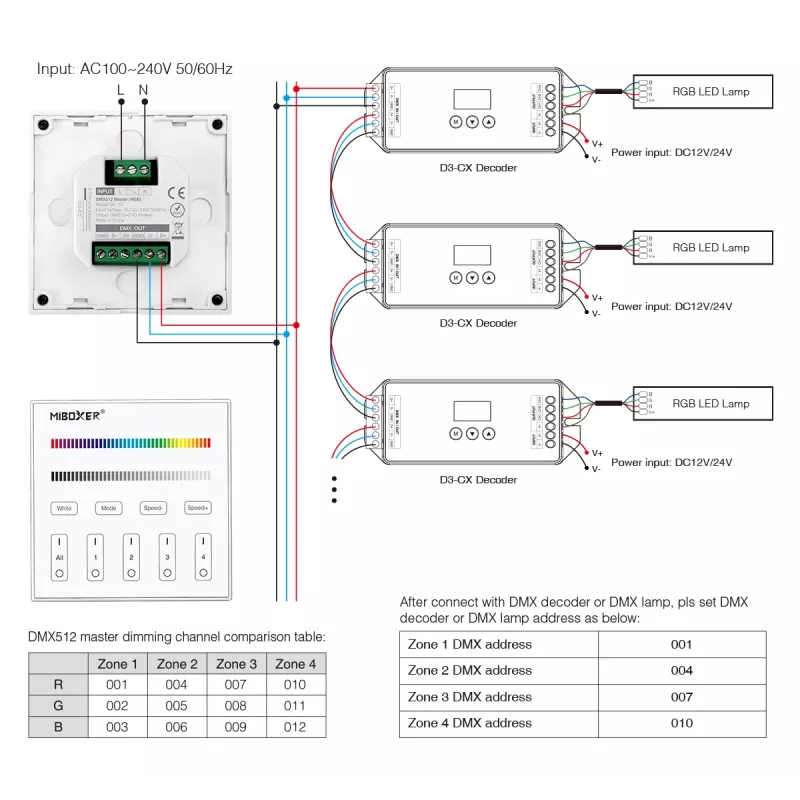

For best RF performance, install the panel in an open area away from large metal objects that can block 2.4GHz signals. When using DMX512, ensure proper termination at the end of the DMX line to avoid signal reflections.
