Microconnect KEYSTONE-8 Keystone-moduuli

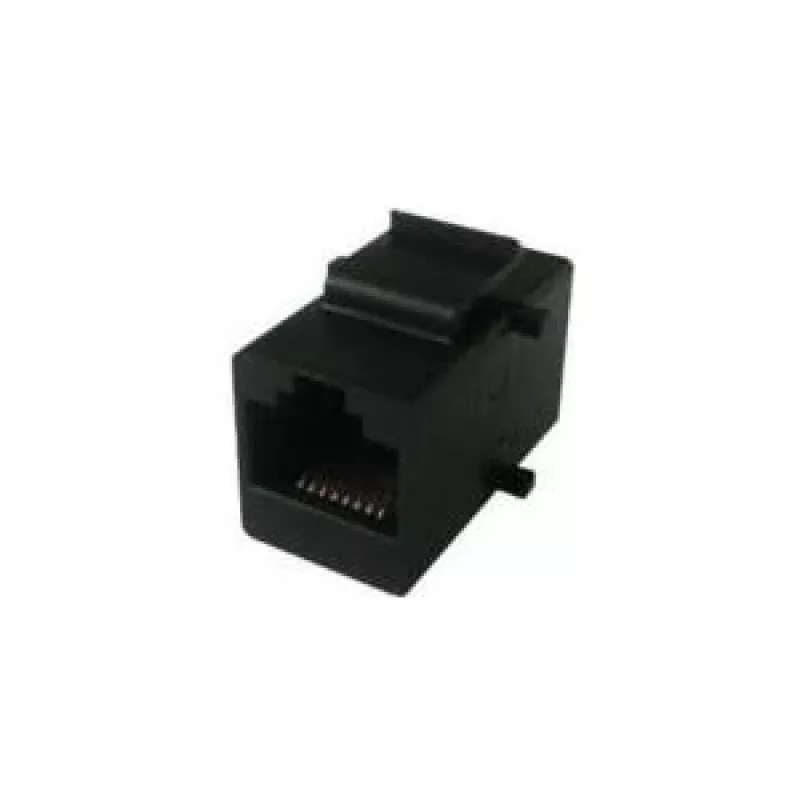

The Microconnect KEYSTONE-8 is a compact black keystone module with dual RJ-45 ports designed for UTP Cat6 network cabling. Weighing 5 g and measuring 50 mm x 46 mm x 17 mm, it fits standard keystone plates and panels to provide a neat, space-saving connection point for Ethernet installations.

Advantages

The keystone module supports Cat6 UTP wiring and two RJ45 connectors in a single compact housing, offering reliable wired connectivity while occupying minimal space. Its lightweight and standard keystone form factor make it easy to install into faceplates, patch panels, or surface-mount boxes without special tools.

Suitable for

• Residential and small office Ethernet outlets
• Patch panels and keystone faceplates
• Network extension and relocation tasks
• Structured cabling projects using Cat6 UTP cabling

Key specifications

• Product name: Microconnect KEYSTONE-8
• Connector type: Dual RJ-45
• Cable category: UTP Cat6
• Colour: Black
• Weight: 0.005 kg
• Package dimensions: 50 mm x 46 mm x 17 mm
• MPN: KEYSTONE-8
• EAN: 5711045445842

How to use

Terminate Cat6 UTP cable pairs according to the chosen wiring standard (T568A or T568B) and insert the terminated cable into the module’s IDC or termination area where applicable. Snap the module into a compatible keystone faceplate, patch panel, or surface-mount box until it locks in place. Connect network devices using standard RJ45 patch cords to the module’s ports.

Recommendations

Ensure proper cable preparation and adhere to Cat6 installation practices (pair untwist limits, correct wire order, and solid termination) to maintain performance. Use in compatible keystone openings and avoid excessive bending or strain on the module and cables.
