Microconnect MC-SSDSATACONV1 liitäntäkortti

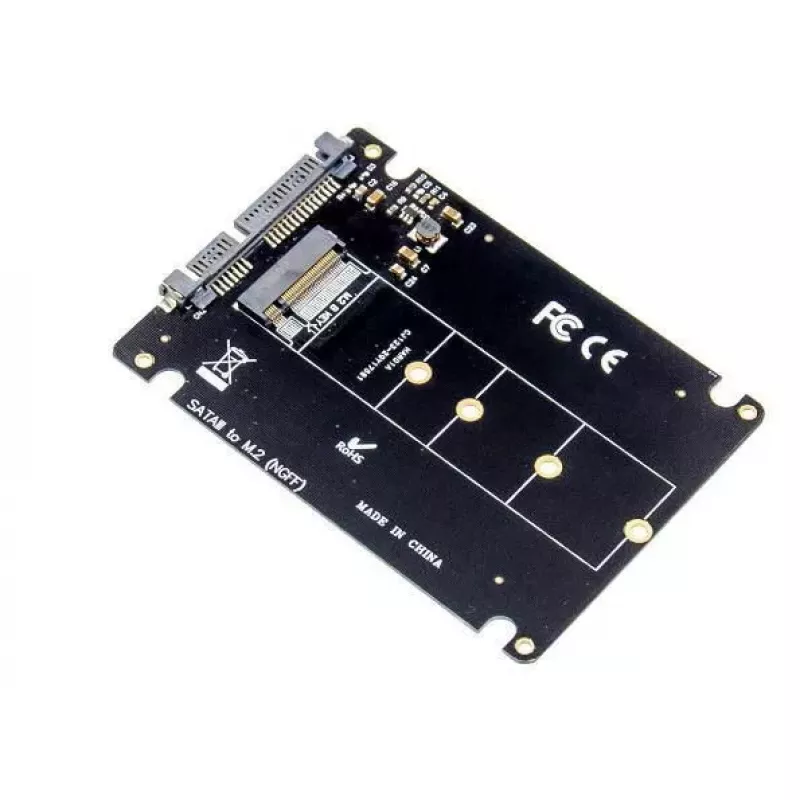

The Microconnect MC-SSDSATACONV1 is a 2.5-inch internal adapter that converts a SATA host interface to a single M.2 Key B SATA SSD. It supports M.2 SATA drives in 2230, 2242, 2260 and 2280 lengths and complies with Serial ATA Specification 3.0, providing up to 6 Gbps transfer rates. The adapter is designed for installation inside laptops, desktop PCs, mini PCs and other compatible systems and comes in a compact black housing weighing approximately 90 g.

Advantages

The adapter offers wide compatibility with common M.2 SATA sizes and supports established SATA III speeds up to 6 Gbps. Its internal 2.5-inch form factor and lightweight black design simplify integration into existing systems. Compliance with Serial ATA Specification 3.0 ensures reliable interoperability with SATA hosts.

Suitable for

• Upgrading storage in laptops
• Adding or replacing an M.2 SATA SSD in desktop computers
• Expanding storage in mini PCs and small form-factor systems

Key specifications

• Model: Microconnect MC-SSDSATACONV1
• Host interface: SATA (Serial ATA Specification 3.0)
• Output interface: M.2 Key B (SATA protocol)
• Supported M.2 sizes: 2230, 2242, 2260, 2280
• Maximum transfer rate: up to 6 Gbps
• Form factor: internal 2.5-inch adapter
• Product colour: Black
• Weight: 0.09 kg

How to use

Install the adapter into a 2.5-inch internal slot or mount it inside your device according to the device manufacturer’s guidance. Insert a compatible M.2 Key B SATA SSD of supported length (2230/2242/2260/2280) into the M.2 slot and secure it with the appropriate screw or standoff. Connect the adapter to the host SATA port and power source inside the computer. After installation, verify that the system BIOS/UEFI recognises the drive and initialise or format the SSD in the operating system if necessary.

Recommendations

Use only M.2 drives that implement the SATA protocol (Key B). Ensure the host device supports internal 2.5-inch adapters and SATA connections. Follow anti-static precautions during installation and consult your system manual for mounting and power connection details.
